NSN 3020-00-244-1736 716544, 7165442, 716544-2
Product Details | INTERNAL GEAR SECTOR
3020-00-244-1736 A gear sector with teeth formed on the inner surface.
Part Alternates: 716544, 7165442, 716544-2, 3020-00-244-1736, 00-244-1736, 3020002441736, 002441736
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 09 JUN 1973 | 00-244-1736 | 36626 ( GEAR SECTOR, INTERNAL ) |
Drawings & Photos | NSN 3020-00-244-1736
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-244-1736
Related Products | NSN 3020-00-244-1736
Technical Data | NSN 3020-00-244-1736
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643,COND A,17-4PH ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TEETH QUANTITY | 13 |
| TEETH TYPE | SPUR |
| PRESSURE ANGLE | 20.0000 DEGREES |

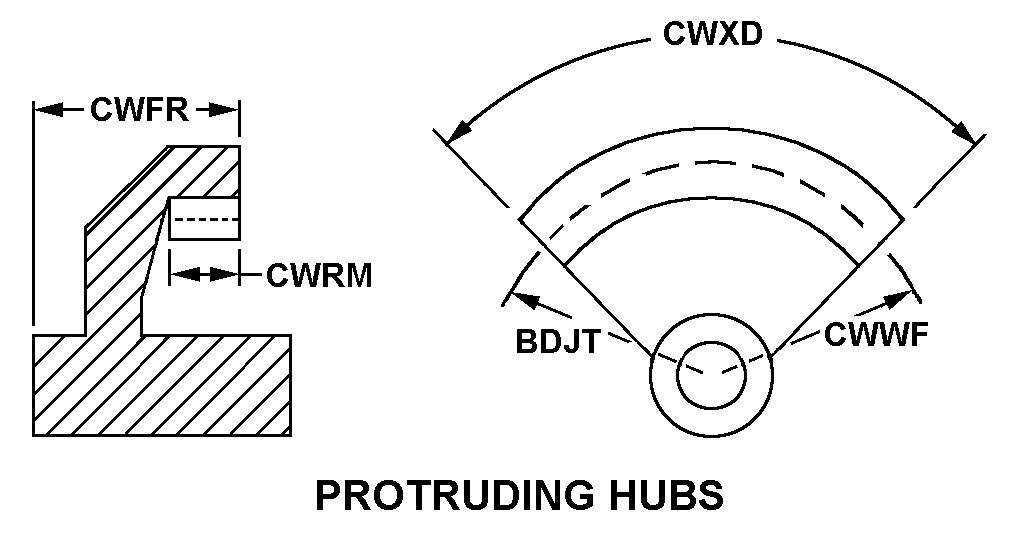

| STYLE DESIGNATOR | 67 PROTRUDING HUBS |
| PITCH RADIUS | 1.7500 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.380 INCHES |
| FACE NOMINAL WIDTH | 0.320 INCHES |
| NOMINAL OUTSIDE RADIUS | 1.910 INCHES |
| ARC NOMINAL LENGTH | 1.0634 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.620 INCHES FIRST END 0.430 INCHES SECOND END |
| BORE STYLE | 2 PARTIAL SECOND END |
| BORE NOMINAL DIAMETER | 0.620 INCHES SECOND END |
| BORE NOMINAL DEPTH | 0.800 INCHES SECOND END |
| HUB STYLE DESIGNATOR | 4A 1 STEP BOTH ENDS |
| END NOMINAL LENGTH | 0.510 INCHES FIRST END 0.100 INCHES SECOND END |
| END NOMINAL DIAMETER | 0.875 INCHES FIRST END 0.9998 INCHES SECOND END |
| FIRST STEP NOMINAL LENGTH | 0.840 INCHES FIRST END 0.200 INCHES SECOND END |
| FIRST STEP NOMINAL DIAMETER | 1.095 INCHES FIRST END 1.800 INCHES SECOND END |
Restrictions/Controls & Freight Information | NSN 3020-00-244-1736
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-244-1736
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
