NSN 3020-00-204-4503 N4623PC17, N9123PC17, N9622PC17
Product Details | SPUR GEAR
3020-00-204-4503 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: N4623PC17, N9123PC17, N9622PC17, N9623PC17, 5226320, 3020-00-204-4503, 00-204-4503, 3020002044503, 002044503
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-204-4503 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-204-4503
Cross Reference | NSN 3020-00-204-4503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5226320 | 24617 | GENERAL MOTORS CORP |
| 5226320 | 55380 | HATCH & KIRK, INC. DIV HATCH & KIRK INC |
| 5226320 | 71934 | GENERAL MOTORS CORP ROCHESTER PRODUCTS DIV |
| 5226320 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| N4623PC17 | 24617 | GENERAL MOTORS CORP |
| N4623PC17 | 71934 | GENERAL MOTORS CORP ROCHESTER PRODUCTS DIV |
| N9123PC17 | 24617 | GENERAL MOTORS CORP |
| N9123PC17 | 71934 | GENERAL MOTORS CORP ROCHESTER PRODUCTS DIV |
| N9622PC17 | 24617 | GENERAL MOTORS CORP |
| N9622PC17 | 71934 | GENERAL MOTORS CORP ROCHESTER PRODUCTS DIV |
| N9623PC17 | 24617 | GENERAL MOTORS CORP |
| N9623PC17 | 71934 | GENERAL MOTORS CORP ROCHESTER PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-204-4503
Related Products | NSN 3020-00-204-4503
Technical Data | NSN 3020-00-204-4503
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| TEETH QUANTITY | 22 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 14.5000 DEGREES |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |
| PITCH DIAMETER | 0.6875 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.000 INCHES |
| NOMINAL OUTSIDE DIAMETER | 0.745 INCHES |
| FACE NOMINAL WIDTH | 0.476 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.524 INCHES FIRST END |

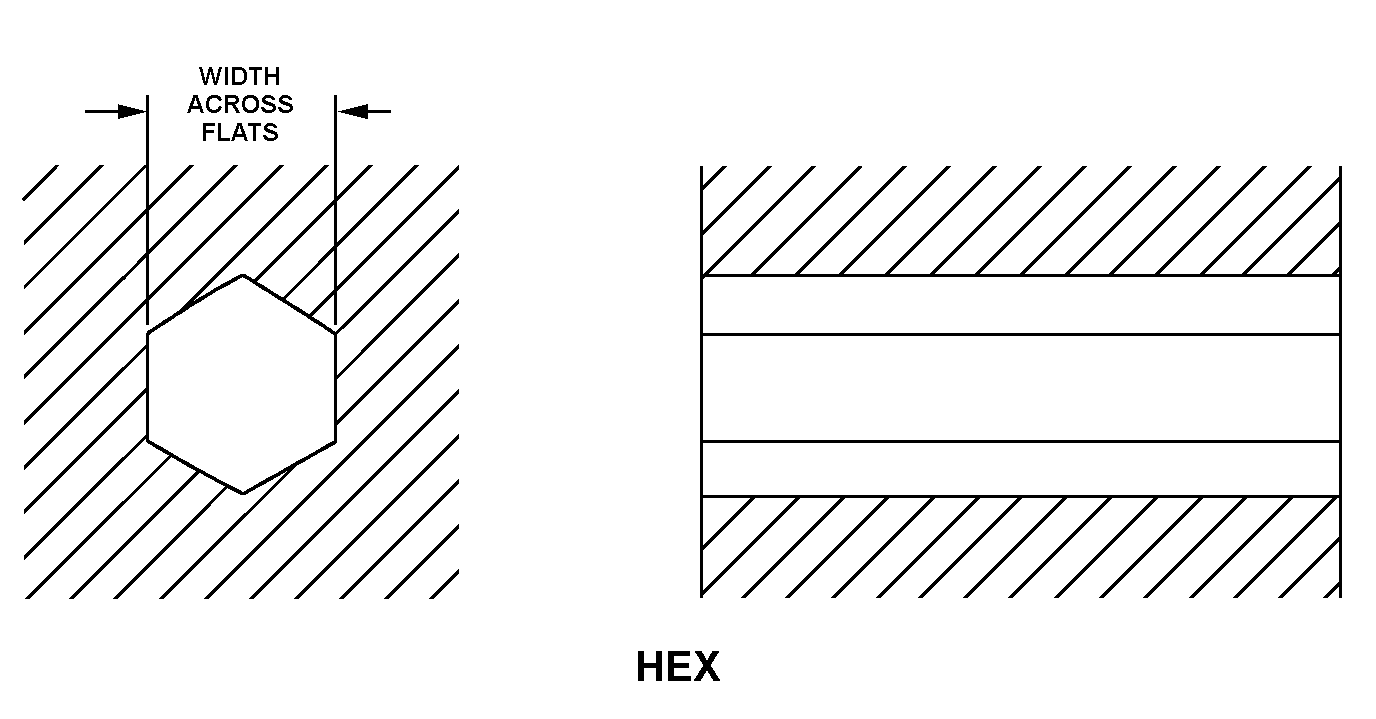

| BORE STYLE | 5 HEX BOTH ENDS |
