NSN 3020-00-204-2804 A6582, 015570, 00-204-2804
Product Details | WORM WHEEL GEAR

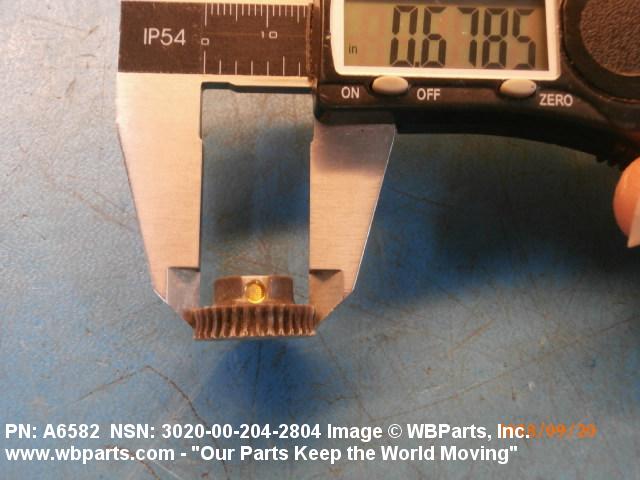

3020-00-204-2804 A gear, cylindrical in form, with spiral teeth designed to mesh with the thread forms of a GEAR (1), WORM. See also GEAR, ANTIBACKLASH, WORM WHEEL.
Part Alternates: A6582, 015570, 3020-00-204-2804, 00-204-2804, 3020002042804, 002042804
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-204-2804 | 05468 ( GEAR, WORM WHEEL ) |

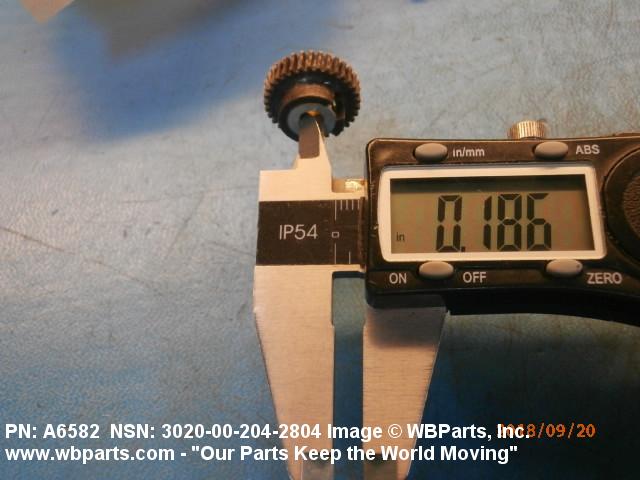

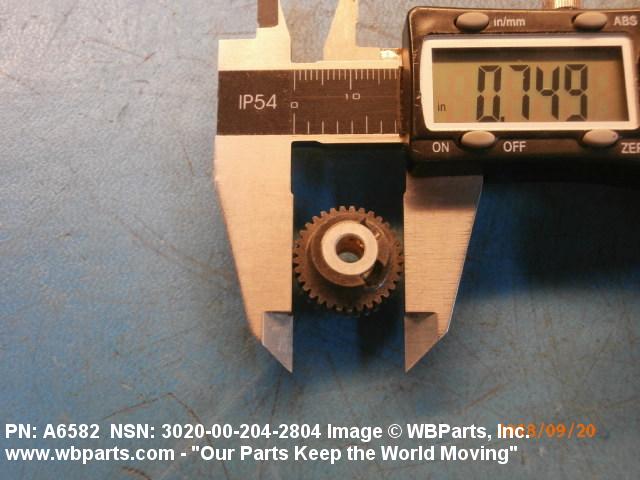

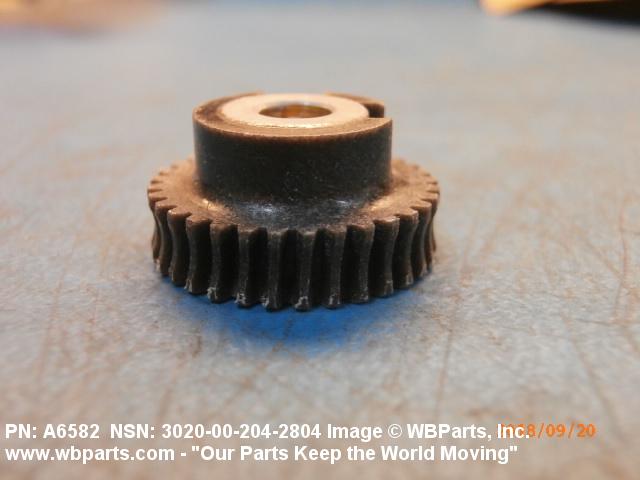

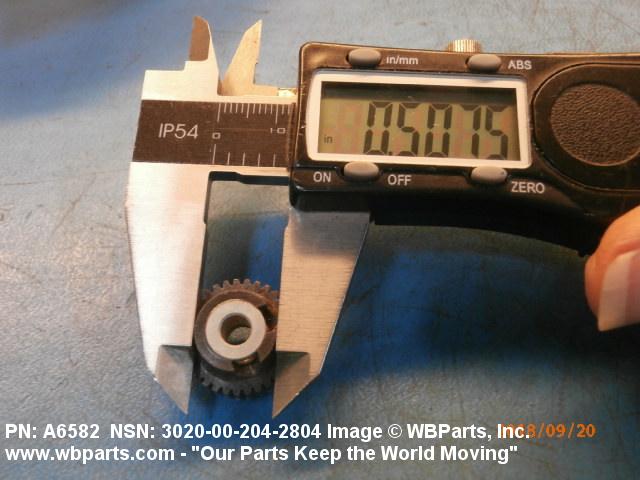

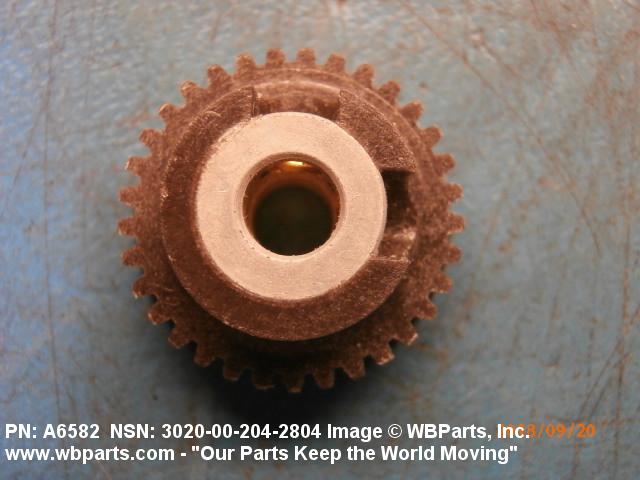

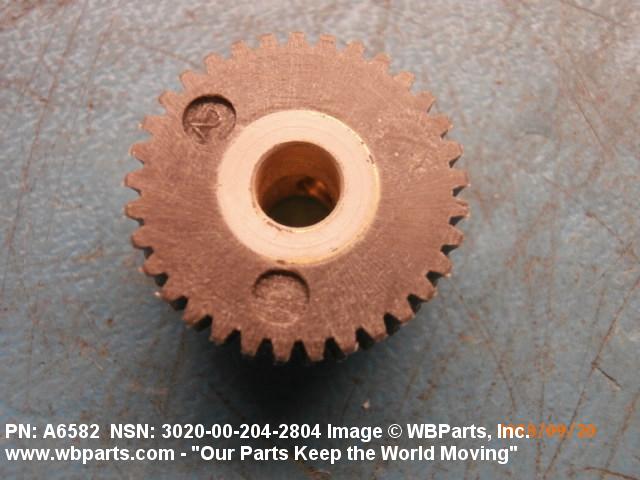

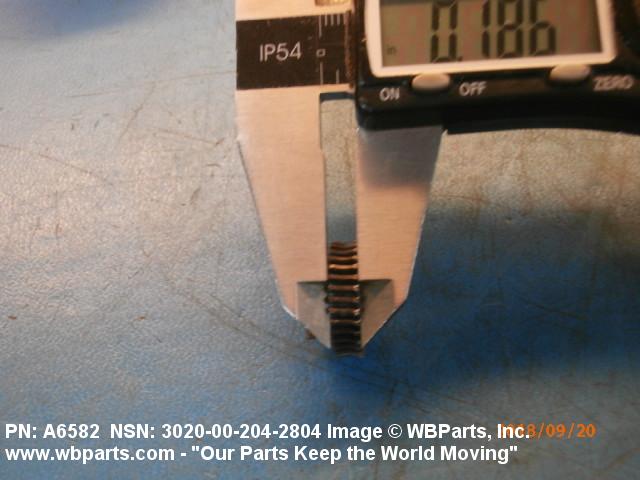

Drawings & Photos | NSN 3020-00-204-2804
Demand History | NSN 3020-00-204-2804
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A6582 | 2024-10-291 | 18 | DIBBS |
| A6582 | 2024-06-176 | 31 | DIBBS |
| A6582 | 2024-06-168 | 31 | DIBBS |
| A6582 | 2024-02-46 | 88 | DIBBS |
| A6582 | 2023-12-340 | 39 | DIBBS |
| A6582 | 2023-11-325 | 39 | DIBBS |
| A6582 | 2023-10-288 | 11 | DIBBS |
| 3020-00-204-2804 | 2020-04-118 | 5 | United States |
| A6582 | 2020-04-97 | 87 | DIBBS |
| A6582 | 2020-03-84 | 87 | DIBBS |
| A6582 | 2019-10-294 | 147 | DIBBS |
| A6582 | 2019-10-283 | 147 | DIBBS |
| 3020-00-204-2804 | 2019-08-225 | 3 | United States |
| 3020-00-204-2804 | 2018-09-255 | 5 | United States |
| 3020-00-204-2804 | 2018-06-158 | 1 | United States |
| 3020-00-204-2804 | 2018-04-105 | 115 | DIBBS |
| 3020-00-204-2804 | 2018-02-46 | 1 | United States |
| 3020-00-204-2804 | 2018-02-43 | 137 | DIBBS |
| 3020-00-204-2804 | 2018-02-32 | 137 | DIBBS |
| 3020-00-204-2804 | 2017-10-297 | 46 | DIBBS |
| 3020-00-204-2804 | 2017-10-295 | 104 | DIBBS |
| 3020-00-204-2804 | 2017-09-254 | 96 | DIBBS |
| 3020-00-204-2804 | 2017-05-123 | 116 | DIBBS |
| 3020-00-204-2804 | 2016-07-201 | 84 | DIBBS |
| 3020-00-204-2804 | 2016-02-54 | 87 | DIBBS |
| 3020-00-204-2804 | 2016-01-03 | 107 | DIBBS |
| 3020-00-204-2804 | 2015-08-217 | 185 | DIBBS |
| A6582 | 2015-03-68 | 1 | United States |
| 3020-00-204-2804 | 2014-05-138 | 204 | DIBBS |
| 3020-00-204-2804 | 2014-04-93 | 97 | DIBBS |
| A6582 | 2013-07-193 | 1 | LK |
| 3020-00-204-2804 | 2013-05-142 | 0 | DIBBS |
| 3020-00-204-2804 | 2012-12-345 | 279 | DIBBS |
| 3020-00-204-2804 | 2012-08-226 | 212 | DIBBS |
| 3020-00-204-2804 | 2011-06-172 | 20 | Malaysia |
| 3020-00-204-2804 | 2011-03-90 | 4 | ZA |
| A6582 | 2011-02-40 | 10 | US |
| 3020-00-204-2804 | 2010-10-274 | 10 | US |
| 3020-00-204-2804 | 2010-08-231 | 50 | US |
| 3020-00-204-2804 | 2010-08-214 | 50 | us |
| 3020-00-204-2804 | 2010-05-126 | 5 | US |
| 3020-00-204-2804 | 2010-04-96 | 580 | DIBBS |
| 3020-00-204-2804 | 2009-04-106 | 113 | DIBBS |
| 3020-00-204-2804 | 2009-02-55 | 155 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-204-2804
Related Products | NSN 3020-00-204-2804
Technical Data | NSN 3020-00-204-2804
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE BODY PLASTIC POLYAMIDE HUB ALUMINUM ALLOY SLEEVE PLASTIC POLYAMIDE TEETH |
| TEETH QUANTITY | 33 |
| TOOTH DIRECTION | RIGHT |
| FACE TYPE | CONCAVE |
| THROAT NOMINAL RADIUS | 0.166 INCHES |
| MATING THREAD LEAD QUANTITY | 1 |
| PRESSURE ANGLE | 14.5000 DEGREES |
| HELIX ANGLE | 3.5832 DEGREES |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |
| PITCH DIAMETER | 0.6870 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 0.750 INCHES |
| FACE NOMINAL WIDTH | 0.188 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.187 INCHES FIRST END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.188 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 5 PINNED FIRST END |
| HUB NOMINAL DIAMETER | 0.500 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
