Product Details | WORM WHEEL GEAR

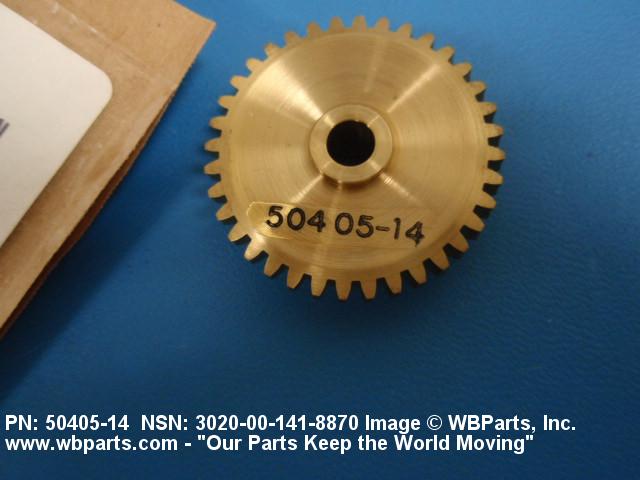

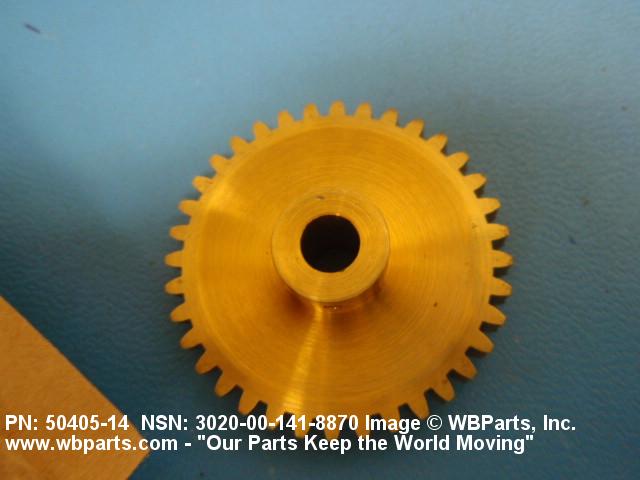

3020-00-141-8870 A gear, cylindrical in form, with spiral teeth designed to mesh with the thread forms of a GEAR (1), WORM. See also GEAR, ANTIBACKLASH, WORM WHEEL.
Part Alternates: 5040514, 50405-14, 3020-00-141-8870, 00-141-8870, 3020001418870, 001418870
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-141-8870 | 05468 ( GEAR, WORM WHEEL ) |
Drawings & Photos | NSN 3020-00-141-8870
Demand History | NSN 3020-00-141-8870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-141-8870 | 2015-04-120 | 8 | DIBBS |
| 3020-00-141-8870 | 2010-12-349 | 3 | DIBBS |
| 3020-00-141-8870 | 2010-08-228 | 4 | DIBBS |
| 3020-00-141-8870 | 2009-04-113 | 1 | us |
| 3020-00-141-8870 | 2008-06-168 | 6 | DIBBS |
| 3020-00-141-8870 | 2007-06-157 | 21 | DIBBS |
| 3020-00-141-8870 | 2006-06-166 | 2 | us |
| 3020-00-141-8870 | 2006-06-158 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-141-8870
Related Products | NSN 3020-00-141-8870
Technical Data | NSN 3020-00-141-8870
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| TEETH QUANTITY | 36 |
| TOOTH DIRECTION | RIGHT |
| FACE TYPE | CONCAVE |
| THROAT NOMINAL RADIUS | 0.299 INCHES |
| MATING THREAD LEAD QUANTITY | 1 |
| PRESSURE ANGLE | 14.5000 DEGREES |
| HELIX ANGLE | 4.3999 DEGREES |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 1.6000 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 1.604 INCHES |
| FACE NOMINAL WIDTH | 0.250 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.250 INCHES FIRST END 0.063 INCHES SECOND END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.250 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 0.500 INCHES FIRST END 0.438 INCHES SECOND END |
| BODY STYLE | 1 PLAIN, SOLID |
