Product Details | SPUR GEAR
3020-00-150-7097 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 019127, 019-127, 6019127, 6019-127, 3020-00-150-7097, 00-150-7097, 3020001507097, 001507097
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 FEB 1971 | 00-150-7097 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-150-7097
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-150-7097
Related Products | NSN 3020-00-150-7097
Technical Data | NSN 3020-00-150-7097
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,TYPE 303,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TEETH QUANTITY | 168 |
| TOOTH FORM | STUB |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |
| PITCH DIAMETER | 2.0990 INCHES MINIMUM AND 2.1000 INCHES MAXIMUM |
| NOMINAL OUTSIDE DIAMETER | 2.124 INCHES |
| FACE NOMINAL WIDTH | 0.108 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.202 INCHES FIRST END |

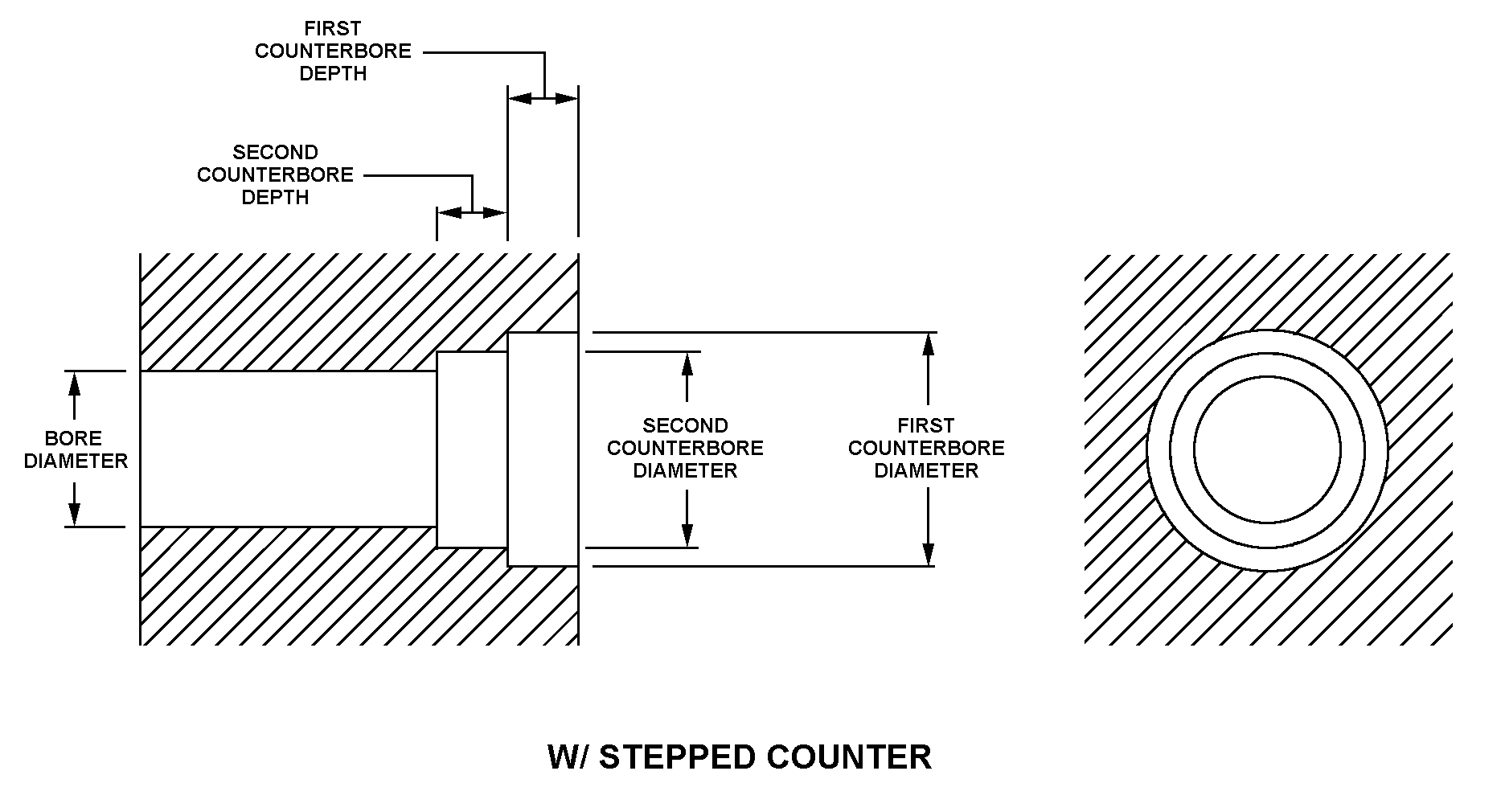

| BORE STYLE | 15 W/STEPPED COUNTERBORE BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.718 INCHES BOTH ENDS |
| COUNTERBORE NOMINAL DEPTH | 0.045 INCHES FIRST COUNTERBORE, FIRST END 0.030 INCHES SECOND COUNTERBORE, FIRST END |
| COUNTERBORE NOMINAL DIAMETER | 1.892 INCHES FIRST COUNTERBORE, FIRST END 1.855 INCHES SECOND COUNTERBORE, FIRST END |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END |
| HUB NOMINAL DIAMETER | 1.980 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 3 PLAIN TRANSVERSELY THROUGH HUB, FIRST END |
| MOUNTING HOLE NOMINAL DIAMETER | 0.078 INCHES TRANSVERSELY THROUGH HUB, FIRST END |
| MANUFACTURERS CODE | 09966 |
| DESIGN CONTROL REFERENCE | 6019-127 |
