NSN 3020-00-141-8598 10A52841, 10A5284-1, 00-141-8598
Product Details | BEVEL GEAR
3020-00-141-8598 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 10A52841, 10A5284-1, 3020-00-141-8598, 00-141-8598, 3020001418598, 001418598
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-141-8598 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-141-8598
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-141-8598
Related Products | NSN 3020-00-141-8598
Technical Data | NSN 3020-00-141-8598
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TEETH TYPE | STRAIGHT |
| PRECISION CLASSIFICATION | QUALITY NUMBER 8 |
| BACKLASH DESIGNATION | GRADE C |

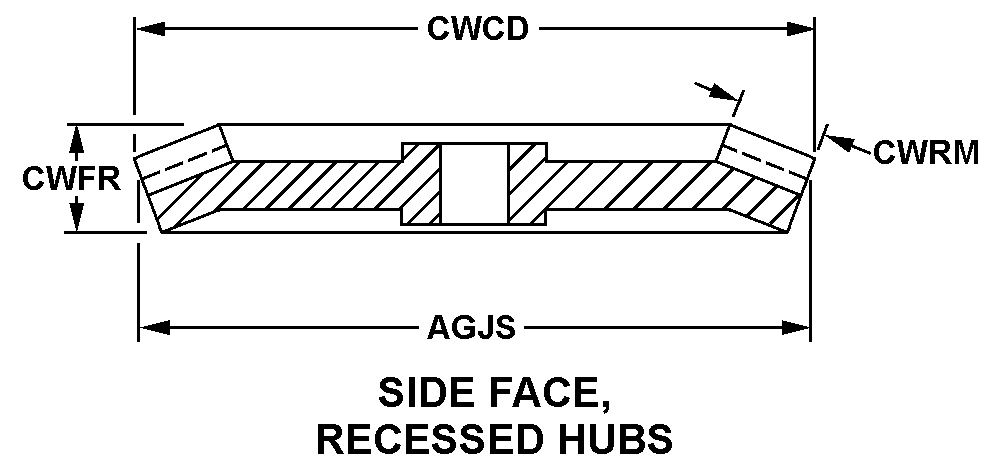

| STYLE DESIGNATOR | 33 SIDE FACE, RECESSED HUBS |
| PITCH DIAMETER | 4.2000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.500 INCHES |
| NOMINAL OUTSIDE DIAMETER | 4.2707 INCHES |
| FACE NOMINAL WIDTH | 0.250 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND RECESSED HUB END | 0.7810 INCHES FIRST END 0.2810 INCHES SECOND END |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 0.2500 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 0.750 INCHES FIRST END 0.750 INCHES SECOND END |
