NSN 3020-00-080-6578 S24160E638, S24-160E63-8, F80S3-160/CH2-8
Product Details | SPUR GEAR
3020-00-080-6578 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: S24160E638, S24-160E63-8, F80S3-160/CH2-8, F80S3160CH28, J25160K28, J25-160K2-8, 11070272, 3020-00-080-6578, 00-080-6578, 3020000806578, 000806578
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 DEC 1967 | 00-080-6578 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-080-6578
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-080-6578
Related Products | NSN 3020-00-080-6578
Technical Data | NSN 3020-00-080-6578
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,TYPE 303 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TEETH QUANTITY | 160 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PRECISION CLASSIFICATION | QUALITY NUMBER 10 |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |
| PITCH DIAMETER | 1.9990 INCHES MINIMUM AND 2.0000 INCHES MAXIMUM |
| NOMINAL OUTSIDE DIAMETER | 2.024 INCHES |
| FACE NOMINAL WIDTH | 0.125 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.281 INCHES FIRST END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.120 INCHES BOTH ENDS |

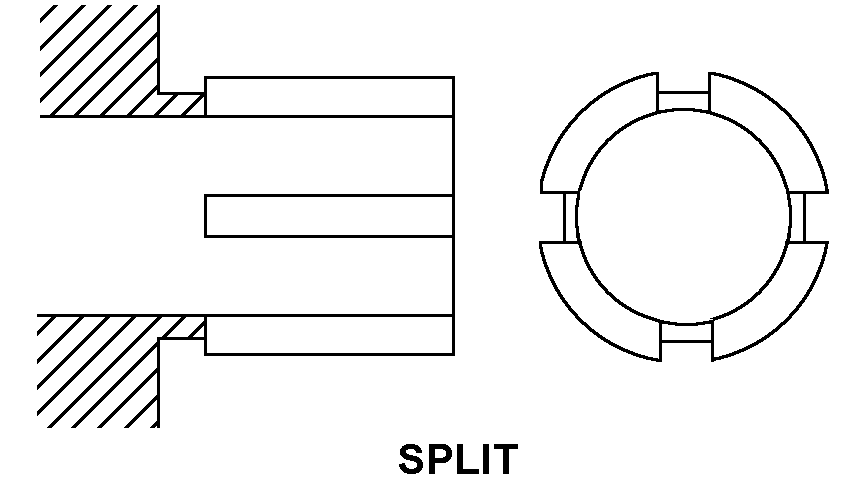

| HUB STYLE DESIGNATOR | 2 SPLIT FIRST END |
| HUB NOMINAL DIAMETER | 0.187 INCHES FIRST END |
| CLAMPING SURFACE NOMINAL LENGTH | 0.250 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | CLAMP |
