NSN 3020-00-080-6575 5139108, 00-080-6575, 000806575
Product Details | HELICAL GEAR
3020-00-080-6575 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: 5139108, 3020-00-080-6575, 00-080-6575, 3020000806575, 000806575
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 17 NOV 1972 | 00-080-6575 | 05464 ( GEAR, HELICAL ) |
Drawings & Photos | NSN 3020-00-080-6575
Demand History | NSN 3020-00-080-6575
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-080-6575 | 2009-06-179 | 2 | DIBBS |
Cross Reference | NSN 3020-00-080-6575
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5139108 | 72582 | MTU AMERICA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-080-6575
Related Products | NSN 3020-00-080-6575
Technical Data | NSN 3020-00-080-6575
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 68 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STANDARD |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 14.5000 DEGREES |
| HELIX ANGLE | 17.0000 DEGREES |

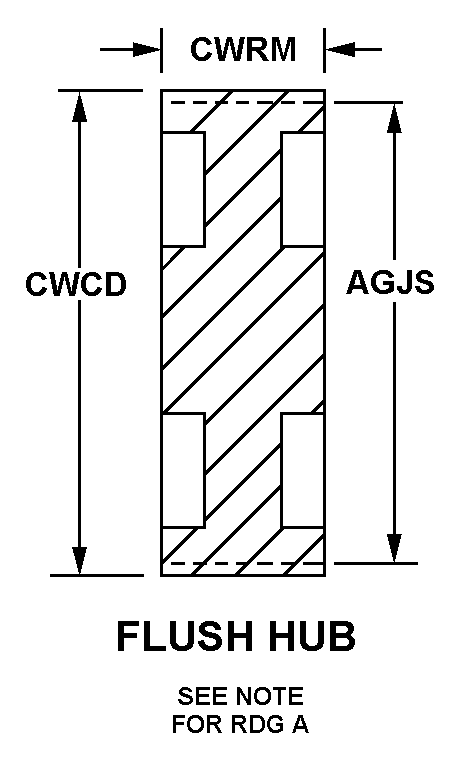

| STYLE DESIGNATOR | 6 FLUSH HUBS |
| PITCH DIAMETER | 8.9380 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 9.2170 INCHES |
| FACE NOMINAL WIDTH | 0.915 INCHES |

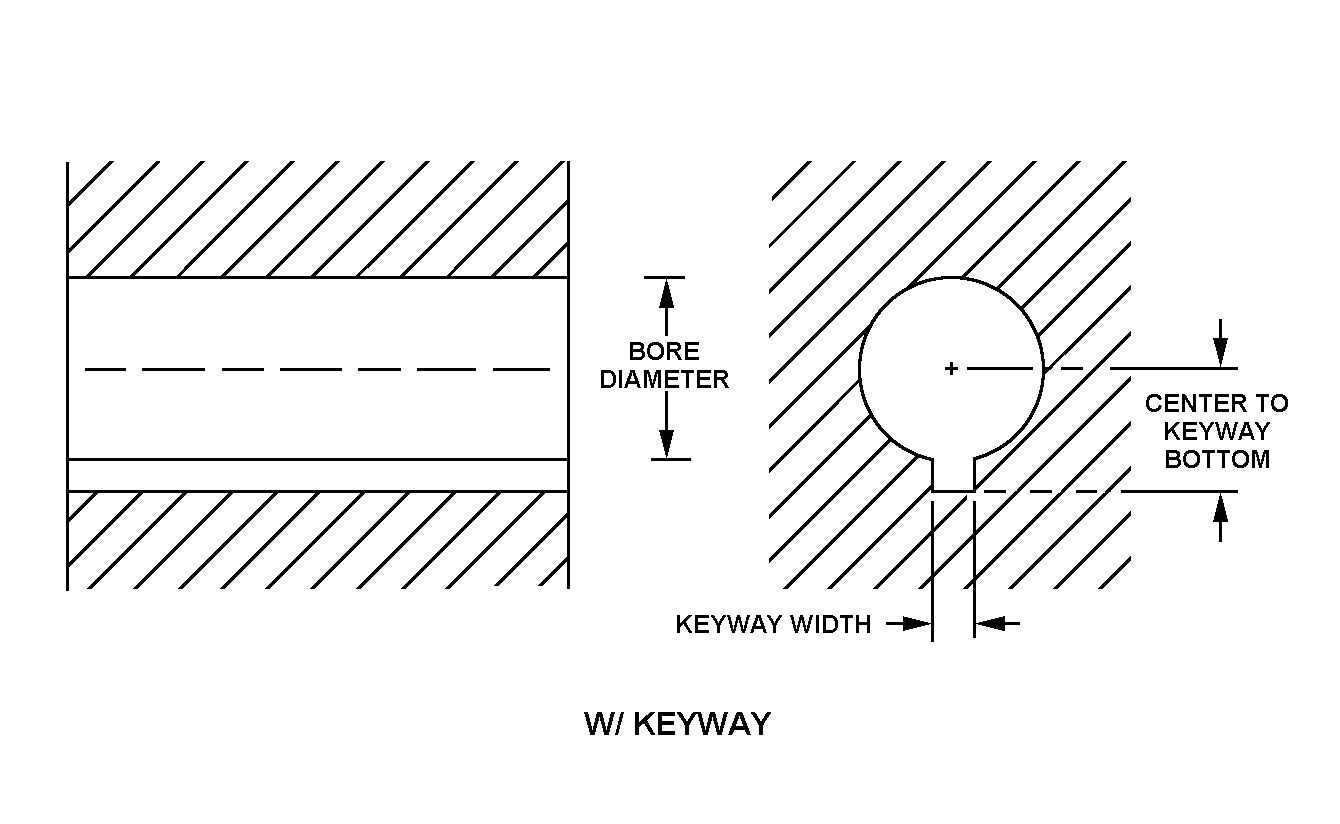

| BORE STYLE | 10A W/KEYWAY BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.500 INCHES BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.250 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 0.375 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 1.438 INCHES BOTH ENDS |

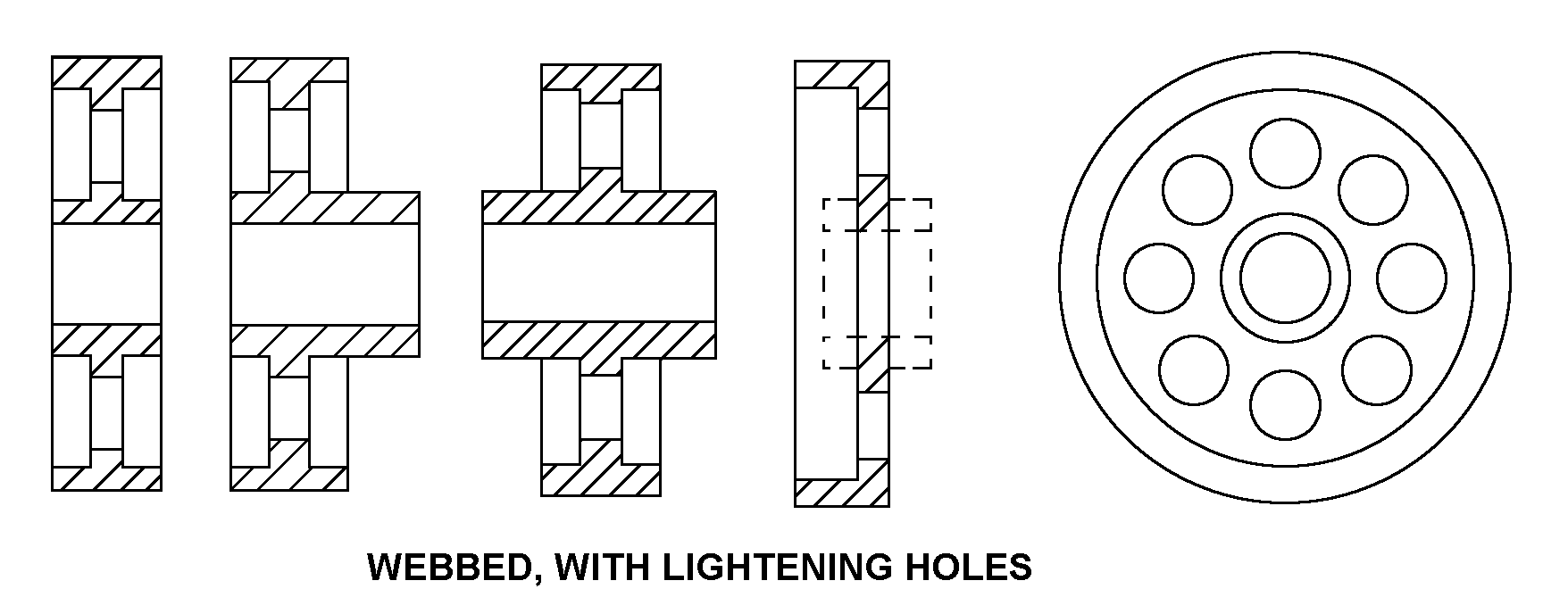

| BODY STYLE | 4A WEBBED, WITH LIGHTENING HOLES |
Restrictions/Controls & Freight Information | NSN 3020-00-080-6575
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-080-6575
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
