NSN 3010-01-318-5670 12349762-1, 01-318-5670, 123497621
Product Details | ANGLE DRIVE UNIT
3010-01-318-5670 An assembly of gears, shaft and bearings within a housing, specifically designed to change the direction of rotary motion by an angle of more than zero degrees and less than one hundred eighty degrees. It may or may not have a torque differential from input to output. Excludes GEAR ASSEMBLY, SPEED DECREASER and GEAR ASSEMBLY, SPEED INCREASER.
Part Alternates: 12349762-1, 3010-01-318-5670, 01-318-5670, 3010013185670, 123497621, 013185670
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 20 APR 1990 | 01-318-5670 | 62392 ( DRIVE UNIT, ANGLE ) |

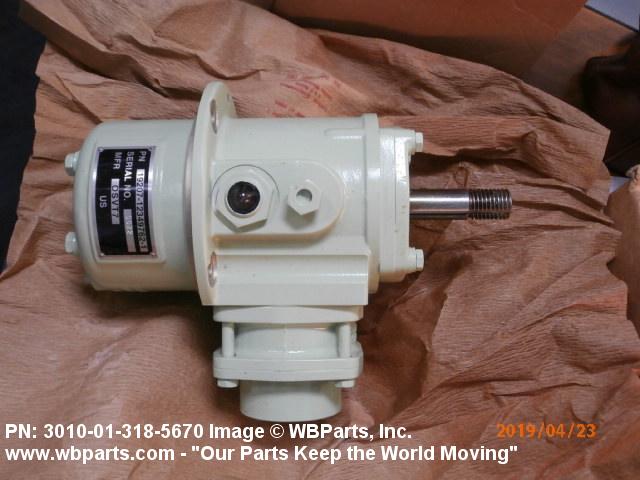

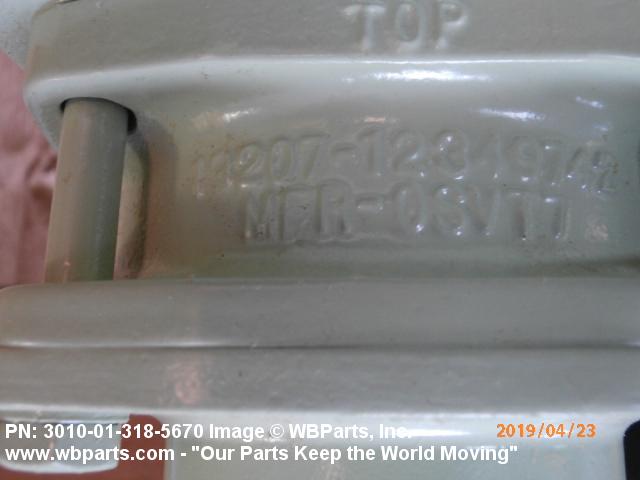

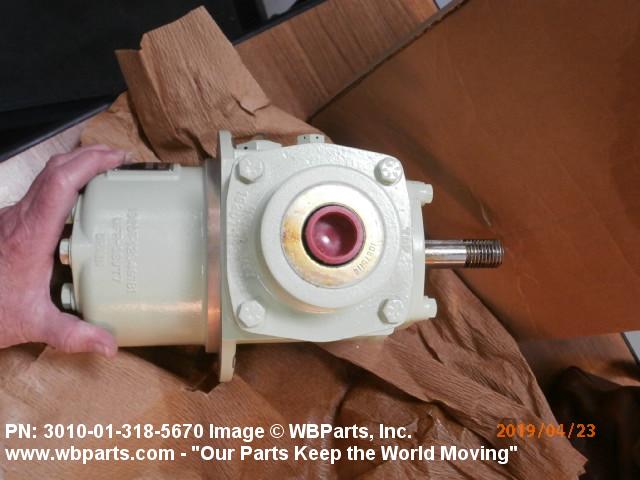

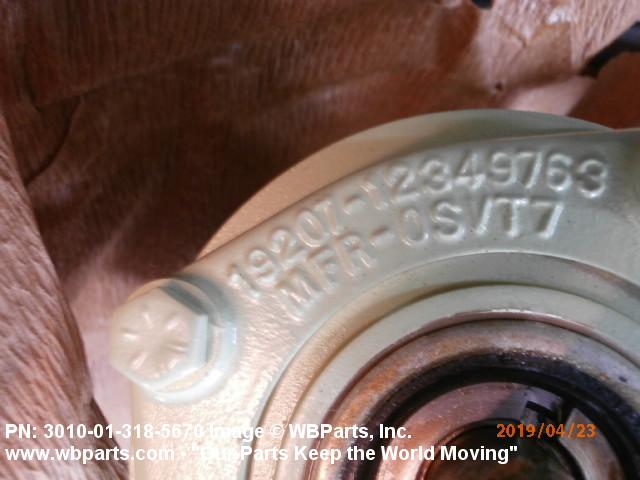

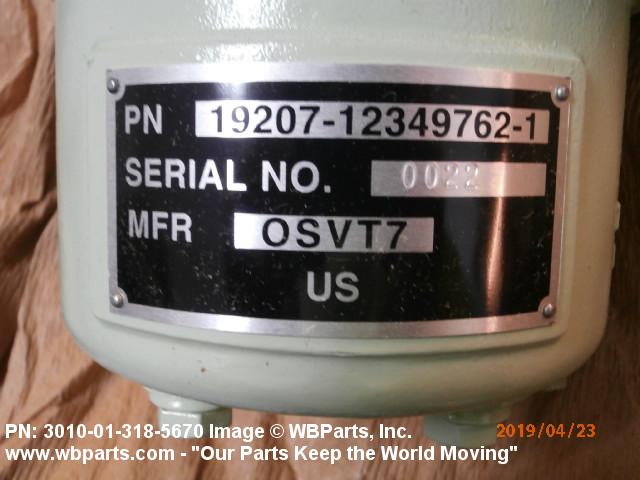

Drawings & Photos | NSN 3010-01-318-5670
Demand History | NSN 3010-01-318-5670
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-01-318-5670 | 2024-10-289 | 4 | UK |
| 123497621 | 2022-09-250 | 5 | US |
| 013185670 | 2020-05-126 | 1 | VI |
| 3010-01-318-5670 | 2020-03-73 | 1 | US |
| 123497621 | 2020-01-14 | 5 | United States |
| 12349762-1 | 2020-01-14 | 5 | United States |
| 3010-01-318-5670 | 2019-12-345 | 2 | United States |
| 3010-01-318-5670 | 2019-04-106 | 1 | United States |
| 3010-01-318-5670 | 2019-03-66 | 1 | United States |
| 3010-01-318-5670 | 2019-02-58 | 1 | United States |
| 3010-01-318-5670 | 2018-08-240 | 1 | NL |
| 3010013185670 | 2016-01-13 | 20 | TR |
| 123497621 | 2013-05-134 | 50 | US |
Cross Reference | NSN 3010-01-318-5670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12349762-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-318-5670
Related Products | NSN 3010-01-318-5670
Technical Data | NSN 3010-01-318-5670
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | C/O HOUSING,PN'S12349771,12349781,123 49742-1,12349773;GEAR,MATCHED SET,PN 12349790;SHAFT ASSY,PN 12354717;SHAFT,PN 12349734;BEARINGS,PN 12349865,12349864;INDICATOR,PN 12349867;SHIMS,PN 12349747,12349746;SLEEVE,PN 12349782;SEALS,PN 10875115,10875114;PLATE,PN 12349741;SPACERS,PN 12349778,12349740,12349777;SEE DWG PN 12349762 FOR MISC PACKING AND HARWARE ITEMS |
| III END ITEM IDENTIFICATION | 2350-01-219-7577 |
Restrictions/Controls & Freight Information | NSN 3010-01-318-5670
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72F | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-318-5670
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | M5 | M113 Family of Vehicles, Block 1 Modification |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
