NSN 3010-01-188-8257 C1304, C130-4, 7040001607
Product Details | ANGLE DRIVE UNIT
3010-01-188-8257 An assembly of gears, shaft and bearings within a housing, specifically designed to change the direction of rotary motion by an angle of more than zero degrees and less than one hundred eighty degrees. It may or may not have a torque differential from input to output. Excludes GEAR ASSEMBLY, SPEED DECREASER and GEAR ASSEMBLY, SPEED INCREASER.
Part Alternates: C1304, C130-4, 7040001607, 70400-01607, 70400-01607-108, 3010-01-188-8257, 01-188-8257, 3010011888257, 7040001607108, 011888257
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 SEP 1984 | 01-188-8257 | 62392 ( DRIVE UNIT, ANGLE ) |

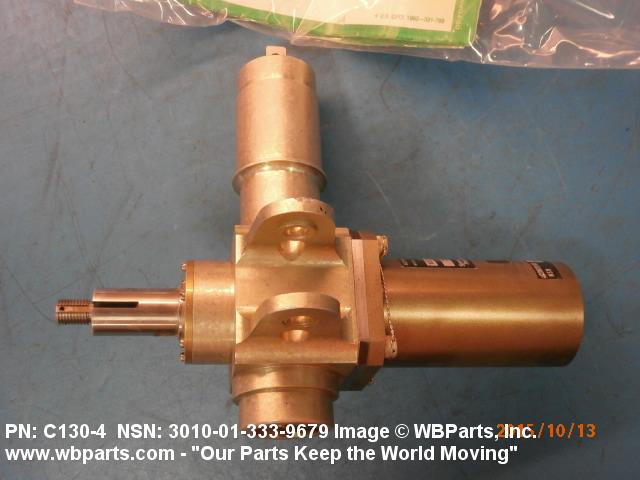

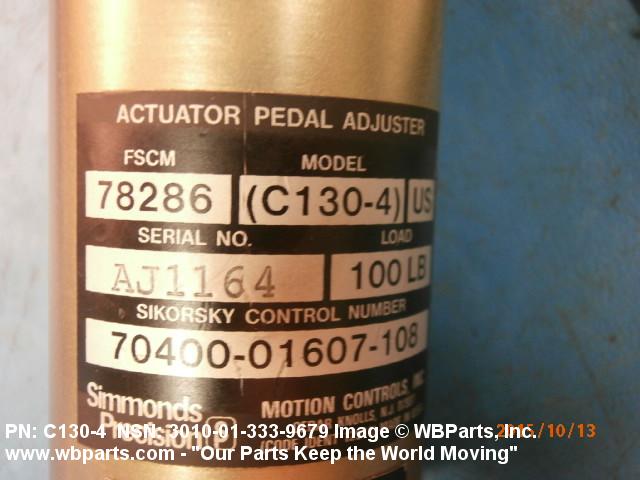

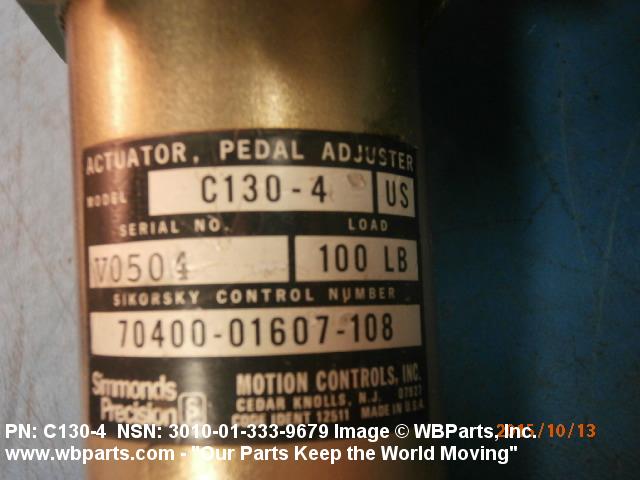

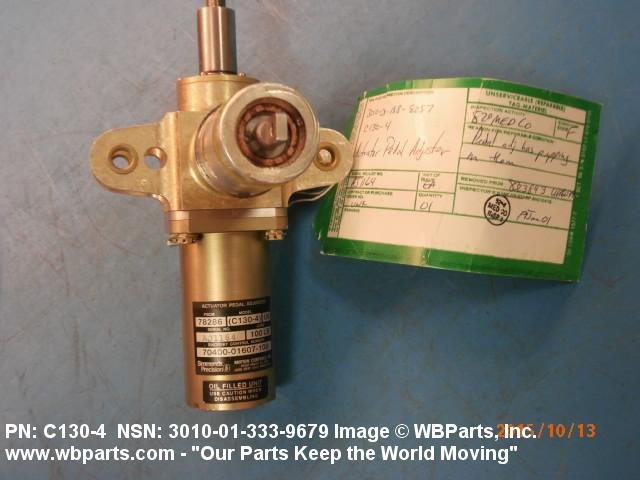

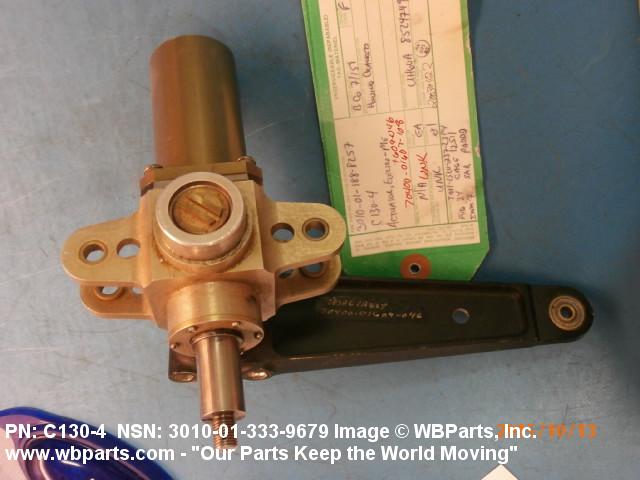

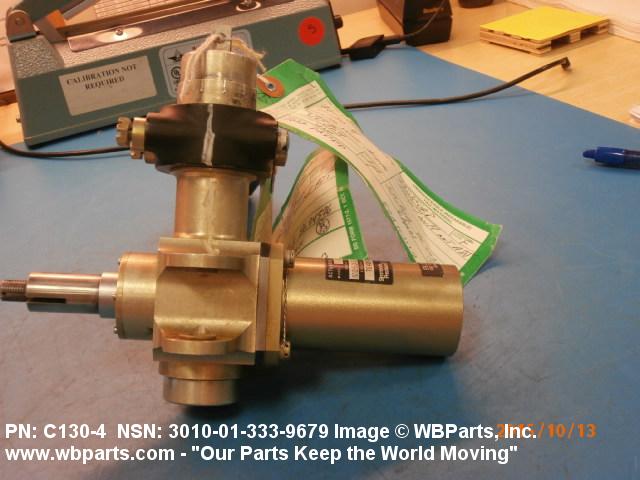

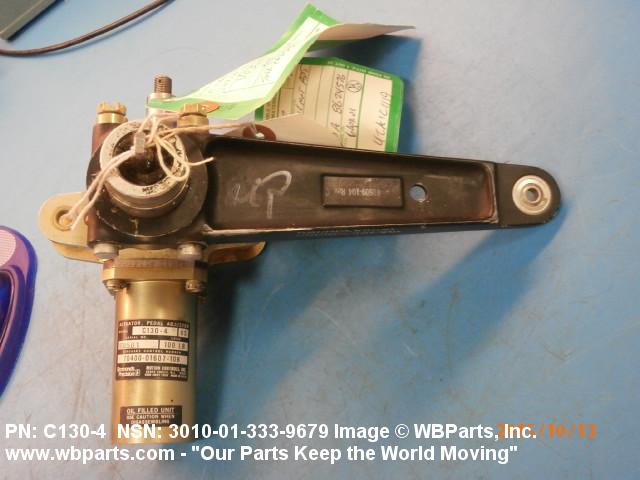

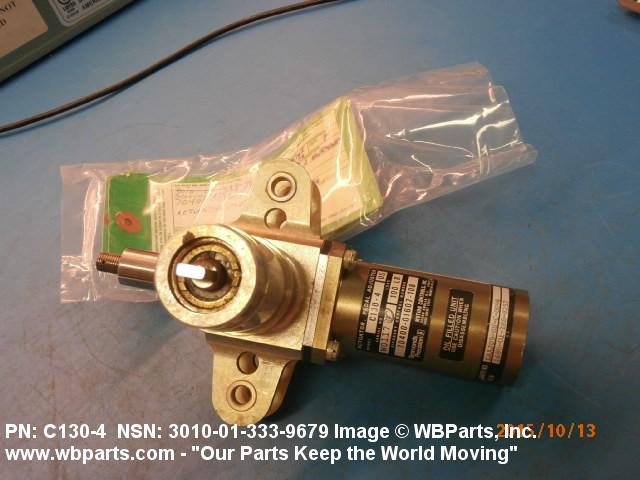

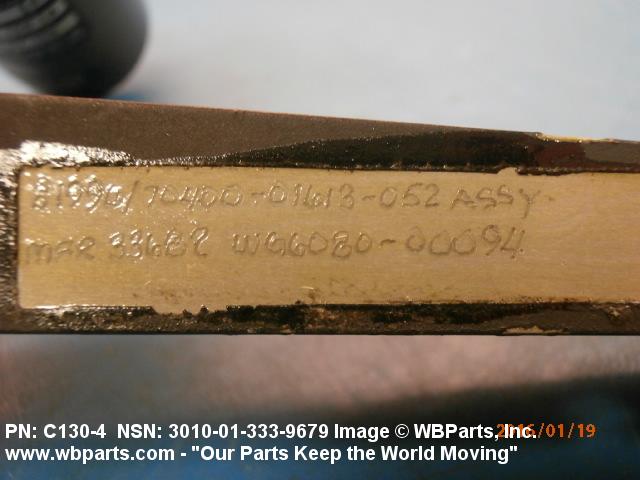

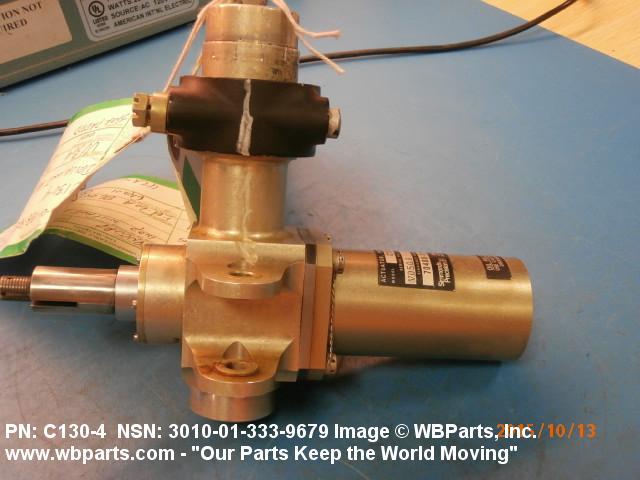

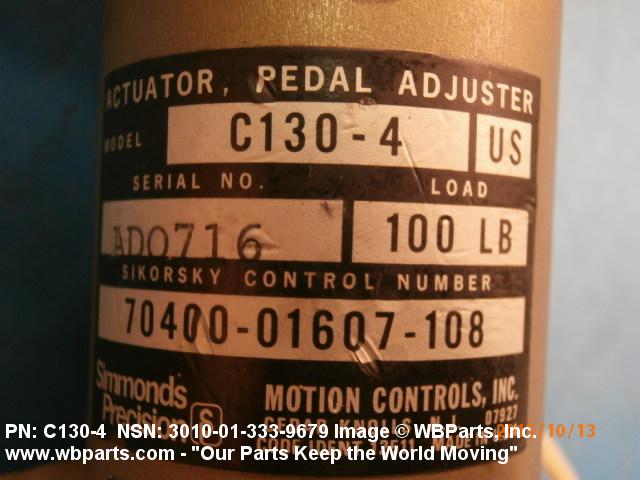

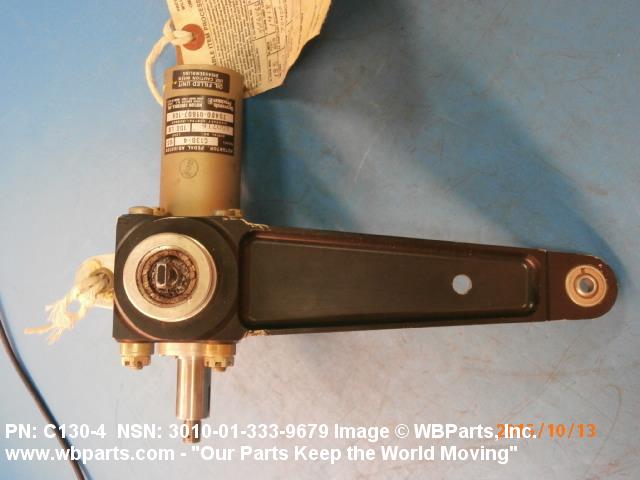

Drawings & Photos | NSN 3010-01-188-8257
Demand History | NSN 3010-01-188-8257
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7040-00-160-7108 | 2022-06-178 | 1 | TW |
| 70400-01607-108 | 2019-05-124 | 2 | |
| 3010-01-188-8257 | 2019-03-85 | 4 | US |
| C130-4 | 2018-08-223 | 2 | |
| 3010-01-188-8257 | 2017-03-81 | 4 | US |
| 70400-01607-108 | 2015-08-243 | 1 | US |
| 70400-01607-108 | 2013-05-127 | 8 | |
| 3010-01-188-8257 | 2013-02-35 | 2 | United States |
| 70400-01607-108 | 2012-03-64 | 2 | |
| 70400-01607-108 | 2012-02-42 | 2 | |
| C130-4 | 2011-12-356 | 5 | |
| C130-4 | 2011-10-274 | 5 | |
| 3010-01-188-8257 | 2008-03-65 | 2 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-01-188-8257
Technical Data | NSN 3010-01-188-8257
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | 3.011 IN.MAX LG.,FITTING W/PEDALLOAD RIGHT & LEFT,THK TOLERANCE ALUMINUM ALLOY SS 5202 |
| SPECIFICATION/STANDARD DATA | 78286-70400-01607-108 MANUFACTURERS SOURCE CONTROL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SOURCE CONTROL DWG NO. 70400-01607 |
| III END ITEM IDENTIFICATION | UH-60A HELICOPTER |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | 70400-01607 |
| MANUFACTURERS CODE | 12511 |
| DESIGN CONTROL REFERENCE | C130-4 |
Restrictions/Controls & Freight Information | NSN 3010-01-188-8257
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
