NSN 2995-01-198-9265 A27162, A2716-2, AE7064981

Product Details | AIRCRAFT FLUID MANIFOLD

2995-01-198-9265 An enclosure with three (3) or more openings designed for use in aircraft de-icing, fuel, hydraulic, oil, pneumatic, and vacuum systems to collect and/or distribute fluids. It may contain valves or metering devices and the like. Excludes MANIFOLD, AIRCRAFT INSTRUMENTS.20315600030Airframe Structural Components16300032Aircraft Wheel and Brake Systems29950042Miscellaneous Engine Accessories, Aircraft

Part Alternates: A27162, A2716-2, AE7064981, AE706498-1, 1092152, 109215-2, 1264M12P01, 1264M12P02, 1264M12P03, 1264M12P04, 2995-01-198-9265, 01-198-9265, 2995011989265, 011989265

Engine Accessories | Miscellaneous Engine Accessories, Aircraft

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	15 JAN 1985	01-198-9265	27020 ( MANIFOLD, FLUID, AIRCRAFT )

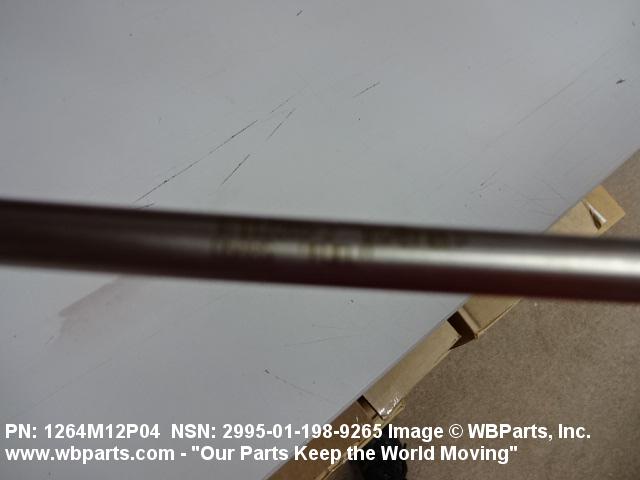

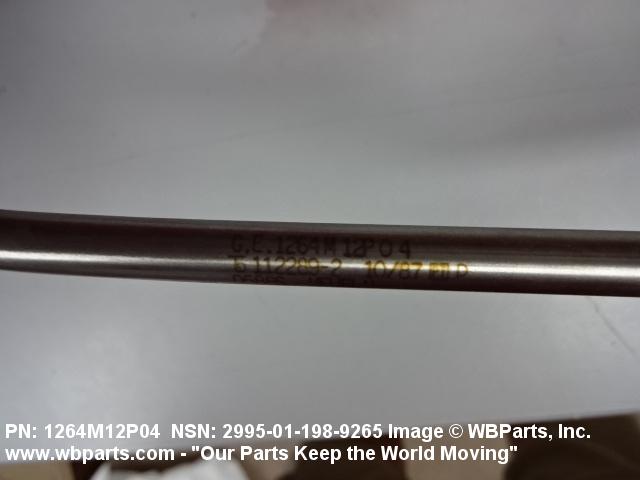

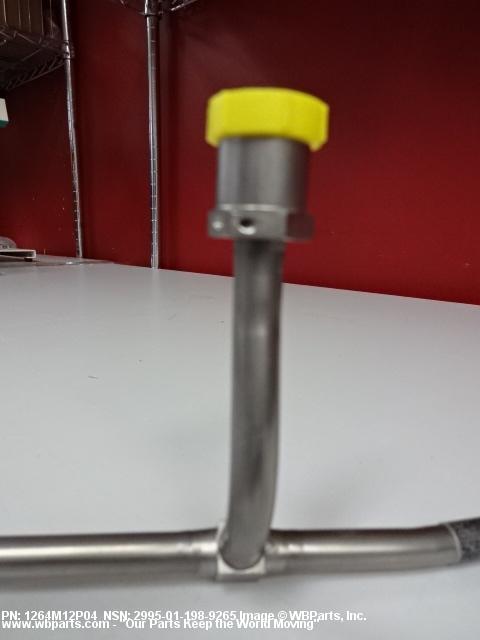

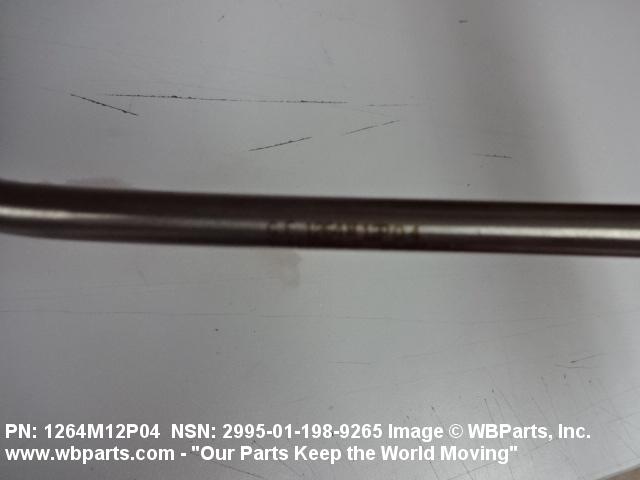

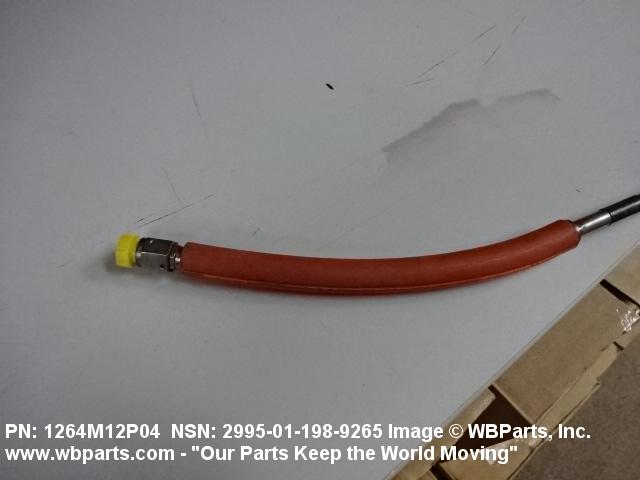

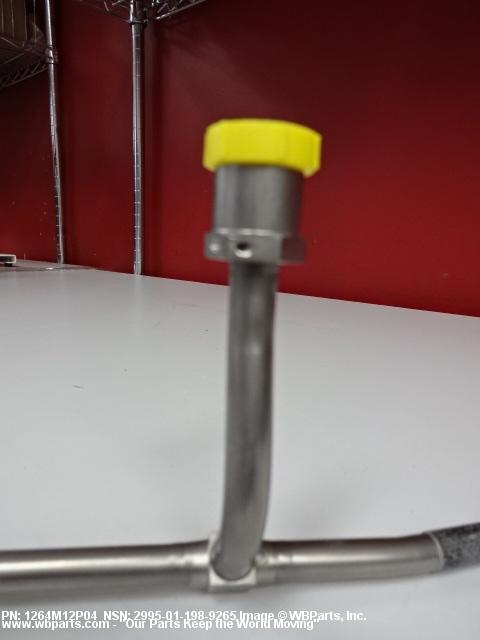

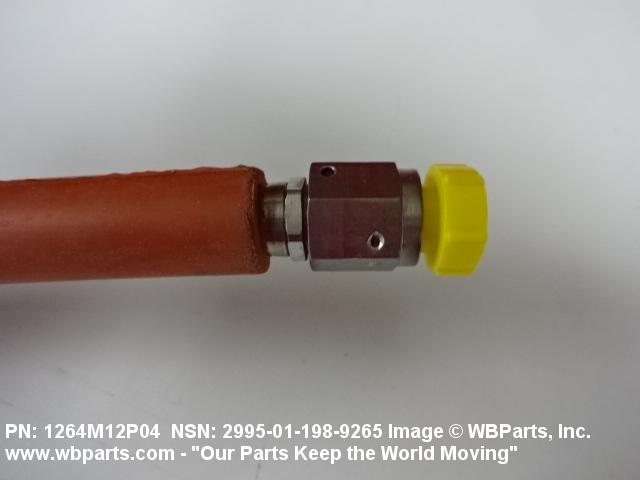

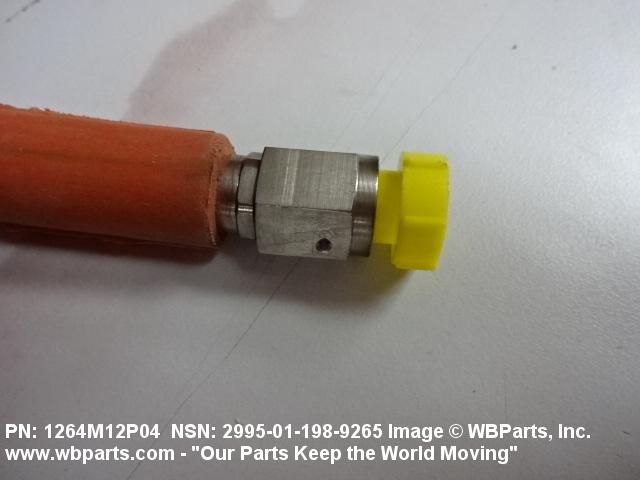

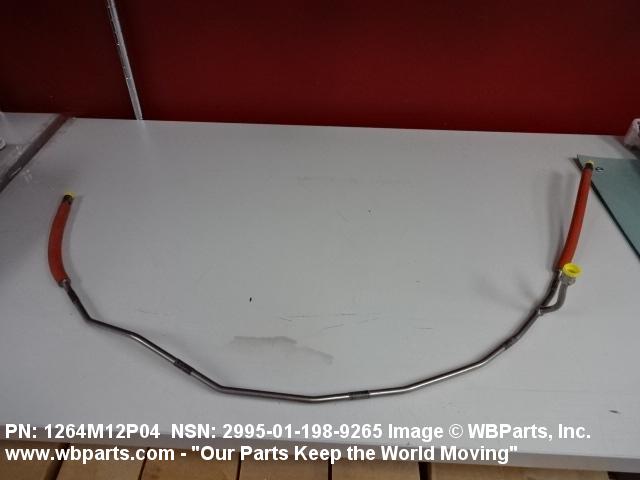

Drawings & Photos | NSN 2995-01-198-9265

Part Number	Request Date	QTY	Origin
2995-01-198-9265	2020-10-282	1	DIBBS-RFPs
2995-01-198-9265	2020-09-266	1	DIBBS-RFPs
112289-2	2020-01-08	6	DIBBS
112289-2	2019-08-233	16	DIBBS
2995-01-198-9265	2018-12-336	14	DIBBS
2995-01-198-9265	2018-10-294	8	DIBBS
2995-01-198-9265	2018-03-70	2	DIBBS
2995-01-198-9265	2018-02-38	8	DIBBS
2995-01-198-9265	2017-12-341	4	DIBBS
2995-01-198-9265	2017-08-241	2	United States
2995-01-198-9265	2017-03-83	2	US
2995-01-198-9265	2017-03-82	2	US
2995-01-198-9265	2017-03-80	2	DIBBS
2995-01-198-9265	2016-03-83	2	United States
2995-01-198-9265	2015-09-267	8	DIBBS
2995-01-198-9265	2015-07-204	6	DIBBS
2995-01-198-9265	2015-04-95	2	DIBBS

Cross Reference | NSN 2995-01-198-9265

Part Number	Cage Code	Manufacturer
109215-2	78570	SMITHS TUBULAR SYSTEMS-LACONIA, INC.
1264M12P01	07482	GENERAL ELECTRIC COMPANY DBA GE
1264M12P02	07482	GENERAL ELECTRIC COMPANY DBA GE
1264M12P03	07482	GENERAL ELECTRIC COMPANY DBA GE
1264M12P04	07482	GENERAL ELECTRIC COMPANY DBA GE
A2716-2	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
AE706498-1	00624	EATON CORPORATION DBA AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2995-01-198-9265

Compare

Related Products | NSN 2995-01-198-9265

2995-01-198-9266, 2995-01-198-9267, 2995-01-198-9268, 2995-01-198-9270, 2995-01-198-9271

Technical Data | NSN 2995-01-198-9265

Characteristic	Specifications
CONNECTION QUANTITY	3
CONNECTION DIAMETER	0.375 INCHES NOMINAL
METERING VALVES	NOT PROVIDED
MATERIAL	STEEL
III SUPPLEMENTARY FEATURES	CONNECTION WALL THK 0.028 IN.
III FUNCTIONAL DESCRIPTION	USED FOR STATOR ACTR,ROD END
III RELATIONSHIP TO SIMILAR EQUIPMENT	SIMILAR TO PN 9504M49
III FSC APPLICATION DATA	MISCELLANEOUS ENGINE ACCESSORIES,AIRCRAFT
MANUFACTURERS CODE	07482
MFR SOURCE CONTROLLING REFERENCE	1264M12P04

Restrictions/Controls & Freight Information | NSN 2995-01-198-9265

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating	M	85
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2995-01-198-9265

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	PR	SX:F11O GE 100 ENGINE
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
