NSN 2945-00-033-0044 3643121, 364312-1, 00-033-0044
Product Details | FLUID FILTERING DISK
2945-00-033-0044 A flat, circular, replaceable device, with or without a centrally located hole, designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous, fibrous or shredded material (metallic or non-metallic) which retains the solid particles in the fluid passing through it. It may be encased and used as a single item or stacked to form a fluid filter element. Excludes DISK, SOLID, PLAIN; DIAPHRAGM (as modified); STRAINER ELEMENT, SEDIMENT; and WIRE FABRIC.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: 3643121, 364312-1, 2945-00-033-0044, 00-033-0044, 2945000330044, 000330044
Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-033-0044 | 61856 ( FILTERING DISK, FLUID ) |

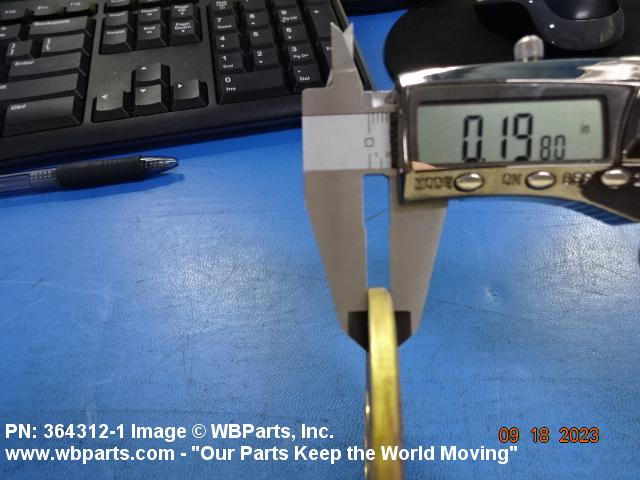

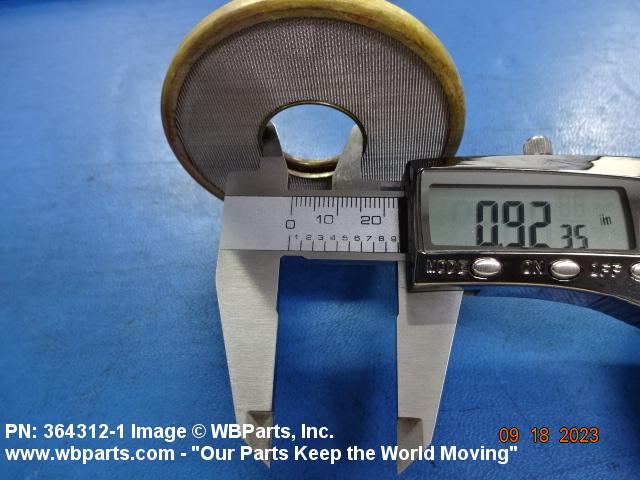

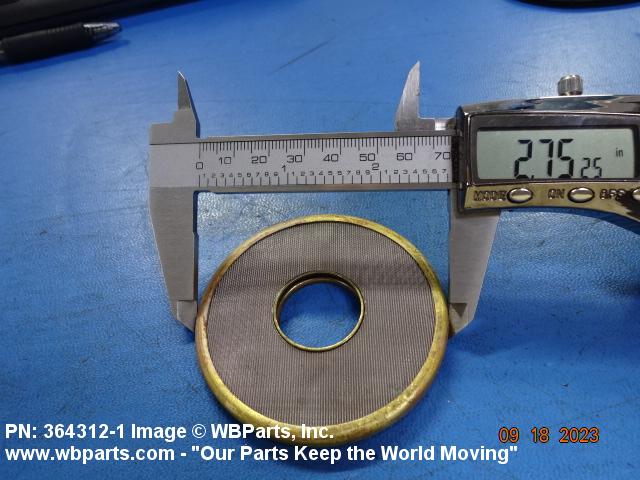

Drawings & Photos | NSN 2945-00-033-0044
Demand History | NSN 2945-00-033-0044
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3643121 | 2023-08-216 | 3 | United States |
Cross Reference | NSN 2945-00-033-0044
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 364312-1 | 81982 | HYDRO-AIRE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2945-00-033-0044
Technical Data | NSN 2945-00-033-0044
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A5 ROUND W/OPENING |
| BODY DIAMETER | 2.719 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.964 INCHES MINIMUM AND 0.969 INCHES MAXIMUM |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| III FSC APPLICATION DATA | FILTER,FLUID,PRESSURE FSN29453283398 |
| MANUFACTURERS CODE | 81982 |
| DESIGN CONTROL REFERENCE | 364312-1 |
Restrictions/Controls & Freight Information | NSN 2945-00-033-0044
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2945-00-033-0044
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
