NSN 4330-00-545-6562 3548521, 354852-1, 00-545-6562

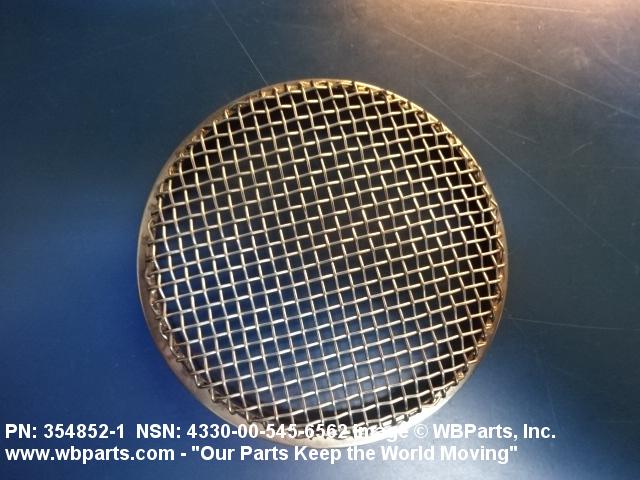

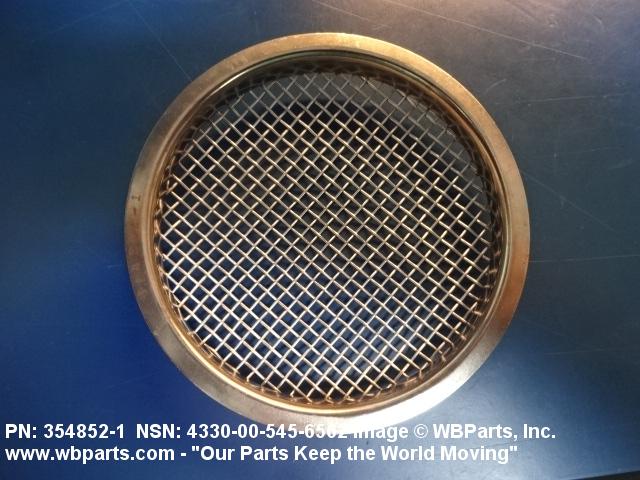

Product Details | FLUID FILTERING DISK
4330-00-545-6562 A flat, circular, replaceable device, with or without a centrally located hole, designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous, fibrous or shredded material (metallic or non-metallic) which retains the solid particles in the fluid passing through it. It may be encased and used as a single item or stacked to form a fluid filter element. Excludes DISK, SOLID, PLAIN; DIAPHRAGM (as modified); STRAINER ELEMENT, SEDIMENT; and WIRE FABRIC.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: 3548521, 354852-1, 4330-00-545-6562, 00-545-6562, 4330005456562, 005456562
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
43 | 01 JAN 1963 | 00-545-6562 | 61856 ( FILTERING DISK, FLUID ) |
Demand History | NSN 4330-00-545-6562
Part Number | Request Date | QTY | Origin |
---|---|---|---|
4330-00-545-6562 | 2023-07-192 | 1 | US |
4330-00-545-6562 | 2023-07-192 | 5 | US |
354852-1 | 2020-11-306 | 1 | DIBBS |
354852-1 | 2020-10-301 | 1 | DIBBS |
4330-00-545-6562 | 2019-02-42 | 1 | us |
4330-00-545-6562 | 2018-04-95 | 1 | DIBBS |
4330-00-545-6562 | 2018-03-84 | 1 | DIBBS |
4330-00-545-6562 | 2013-12-338 | 1 | DIBBS |
4330-00-545-6562 | 2011-05-132 | 2 | PL |
4330-00-545-6562 | 2009-08-240 | 9 | DIBBS |
4330-00-545-6562 | 2008-02-42 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 4330-00-545-6562
Technical Data | NSN 4330-00-545-6562
Characteristic | Specifications |
---|---|
STYLE DESIGNATOR | A3 ROUND |

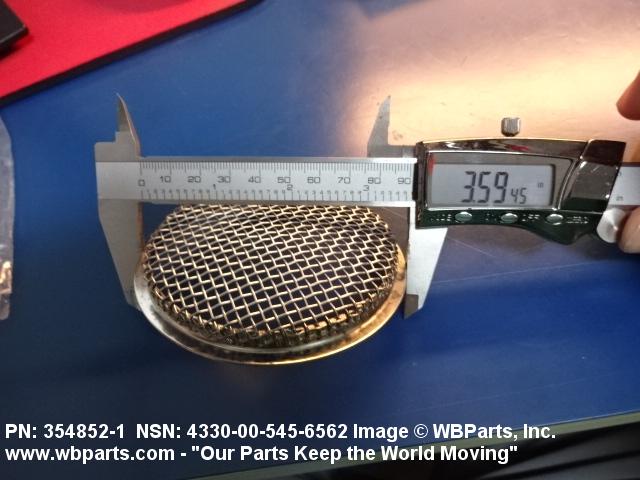

BODY DIAMETER | 3.560 INCHES MINIMUM AND 3.600 INCHES MAXIMUM |

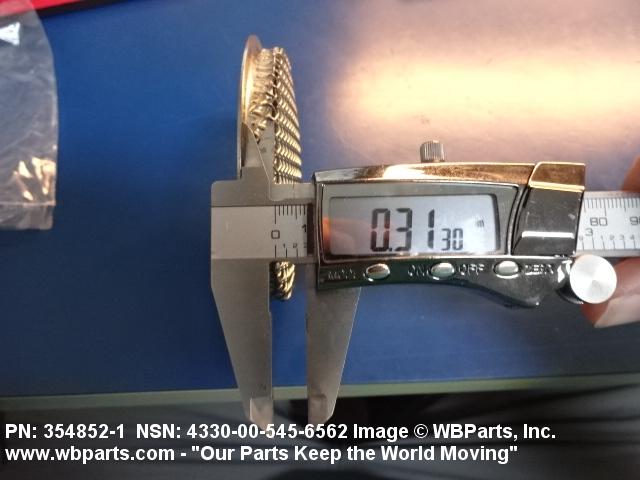

BODY THICKNESS | 0.310 INCHES NOMINAL |
FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
DESIGN TYPE | REUSABLE |
FILTRATION RATING IN MICRONS | NOT RATED |
MEDIA FOR WHICH DESIGNED | AIR |
III FSC APPLICATION DATA | AIR INLET DUCT,COMPRESSOR INSTL,AIRCRAFT |
MANUFACTURERS CODE | 98897 |
DESIGN CONTROL REFERENCE | 354852-1 |
Restrictions/Controls & Freight Information | NSN 4330-00-545-6562
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
Less than car load rating | Q | 70 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 594 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-00-545-6562
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | LG | TG:C-130 HERCULES |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
