NSN 2925-00-294-1285 JH12680R12, 00-294-1285, 002941285
Product Details | ELECTRICAL ENGINE STARTER
2925-00-294-1285 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: JH12680R12, 2925-00-294-1285, 00-294-1285, 2925002941285, 002941285
Engine Accessories | Engine Electrical System Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-294-1285 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
Drawings & Photos | NSN 2925-00-294-1285
Demand History | NSN 2925-00-294-1285
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| JH12680R12 | 2011-01-10 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2925-00-294-1285
Technical Data | NSN 2925-00-294-1285
| Characteristic | Specifications |
|---|---|

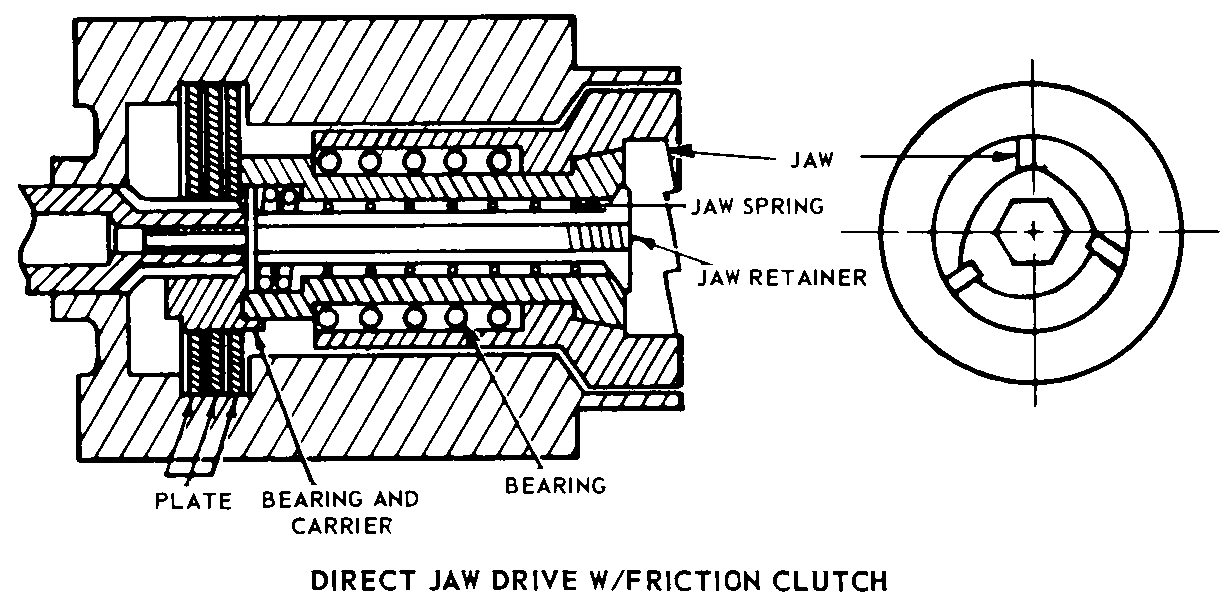

| ENGAGING MECHANISM STYLE | 21 DIRECT JAW DRIVE W/FRICTION CLUTCH |

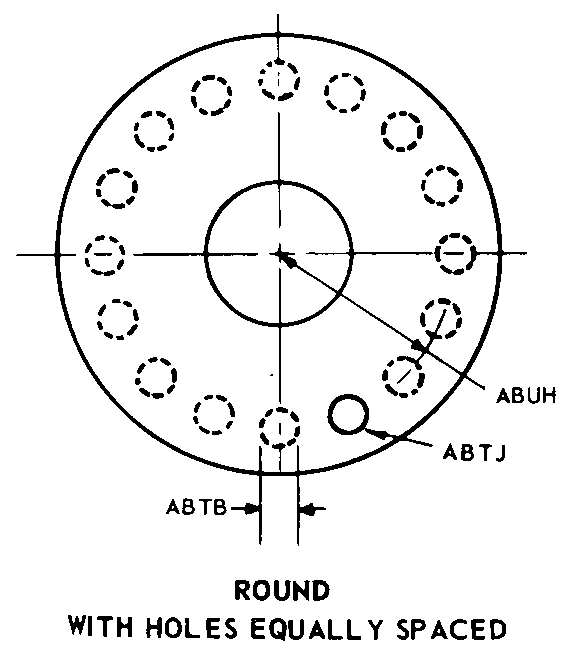

| MOUNTING FLANGE SHAPE STYLE | 4 ROUND WITH HOLES EQUALLY SPACED |
| MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 2.500 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 6 |
| VOLTAGE IN VOLTS | 24.0 |
| LOCK TEST CURRENT RATING IN AMPS | NOT RATED |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| ARMATURE ACTUATION DEVICE TYPE | RELAY |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD |
| FEATURES PROVIDED | SUBMERSIBLE AND GEAR REDUCTION |
| MANUFACTURERS CODE | 31435 |
| DESIGN CONTROL REFERENCE | JH12680R12 |
Restrictions/Controls & Freight Information | NSN 2925-00-294-1285
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
