NSN 2925-01-013-9867 37269718, 372697-18, 372697-18.1
Product Details | ELECTRICAL ENGINE STARTER
2925-01-013-9867 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 37269718, 372697-18, 372697-18.1 , 372697-18-1 , 2925-01-013-9867, 01-013-9867, 2925010139867, 010139867, 372697181
Engine Accessories | Engine Electrical System Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 12 DEC 1975 | 01-013-9867 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |

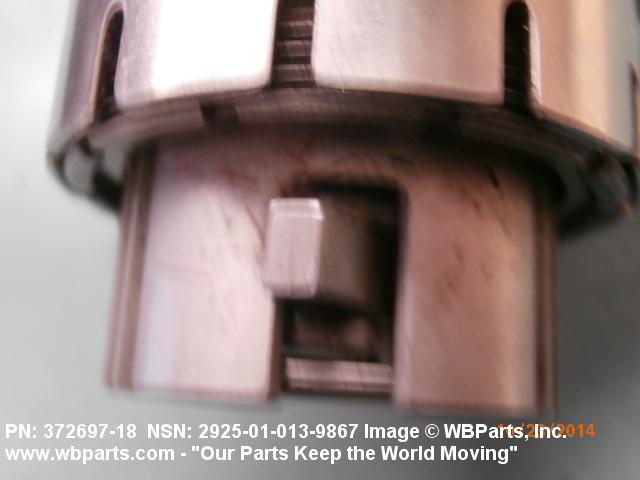

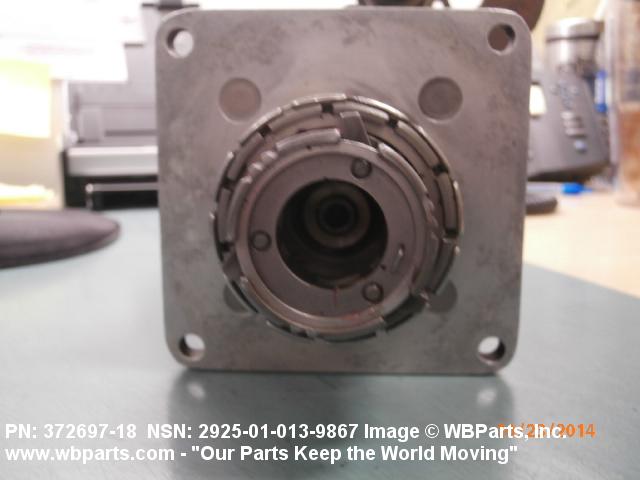

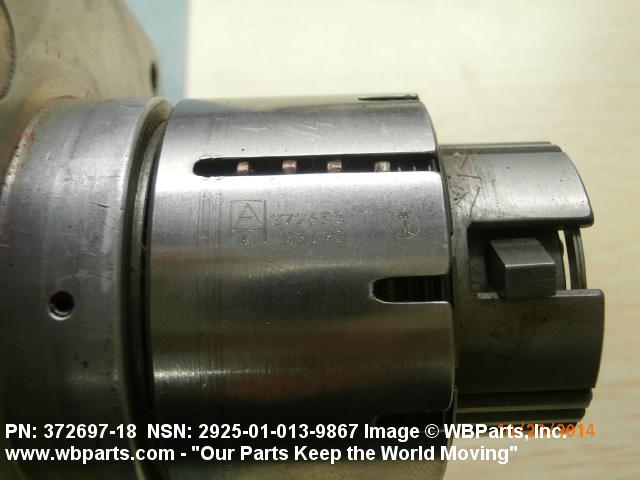

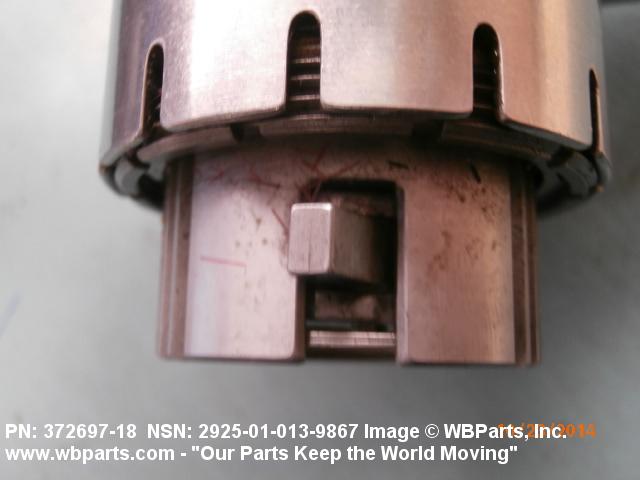

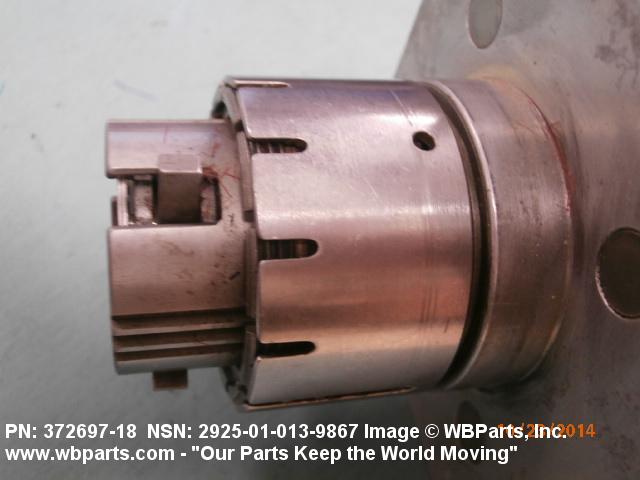

Drawings & Photos | NSN 2925-01-013-9867
Demand History | NSN 2925-01-013-9867
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2925-01-013-9867 | 2024-02-57 | 1 | Taiwan |
| 372697181 | 2023-06-164 | 1 | IE |
| 37269718 | 2022-12-349 | 1 | Philippines |
| 372697181 | 2022-12-349 | 1 | Philippines |
| 2925-01-013-9867 | 2022-09-250 | 4 | JP |
| 372697181 | 2021-05-132 | 3 | Philippines |
| 2925-01-013-9867 | 2021-05-132 | 3 | Philippines |
| 37269718 | 2021-05-126 | 1 | Philippines |
| 37269718 | 2021-02-53 | 1 | PH |
| 2925-01-013-9867 | 2020-07-198 | 1 | US |
| 372697181 | 2019-07-211 | 2 | Singapore |
| 37269718 | 2018-03-77 | 1 | SA |
| 372697-18-1 | 2017-02-47 | 3 | Philippines |
| 37269718 | 2014-10-276 | 1 | Singapore |
| 372697181 | 2013-09-246 | 20 | JO |
| 2925-01-013-9867 | 2013-07-193 | 1 | MANUAL |
| 372697-18 | 2013-07-193 | 1 | US |
| 372697181 | 2012-08-217 | 6 | Ukraine |
| 372697181 | 2012-07-206 | 6 | Ukraine |
| 37269718 | 2010-05-136 | 2 | United States |
| 372697181 | 2010-04-99 | 1 | US |
| 2925-01-013-9867 | 2009-12-343 | 1 | DE |
| 2925-01-013-9867 | 2009-12-336 | 1 | Saudi Arabia |
| 2925-01-013-9867 | 2009-11-315 | 4 | Saudi Arabia |
| 37269718 | 2009-10-295 | 1 | US |
| 2925-01-013-9867 | 2009-08-221 | 1 | Spain |
| 372697181 | 2009-06-161 | 1 | Malaysia |
| 2925-01-013-9867 | 2008-10-290 | 1 | United States |
| 372697181 | 2008-08-229 | 1 | Philippines |
| 2925-01-013-9867 | 2008-08-218 | 1 | Philippines |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2925-01-013-9867
Related Products | NSN 2925-01-013-9867
Technical Data | NSN 2925-01-013-9867
| Characteristic | Specifications |
|---|---|

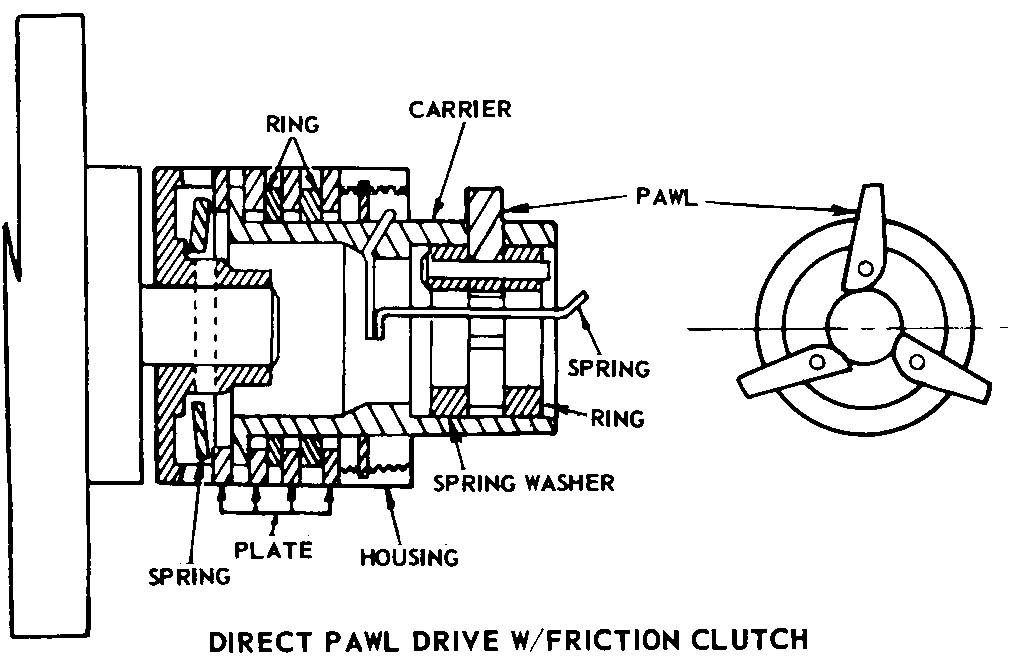

| ENGAGING MECHANISM STYLE | 19 DIRECT PAWL DRIVE W/FRICTION CLUTCH |

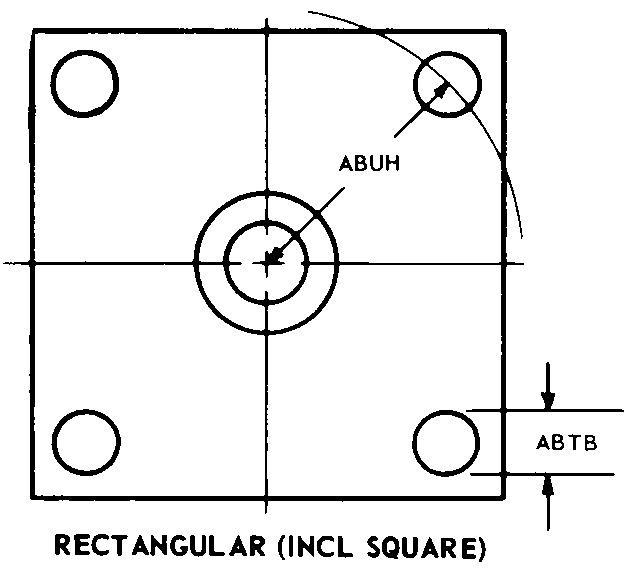

| MOUNTING FLANGE SHAPE STYLE | 5 RECTANGULAR |
| MOUNTING HOLE DIAMETER | 0.288 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 3.422 INCHES NOMINAL |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 372697-18 |
Restrictions/Controls & Freight Information | NSN 2925-01-013-9867
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB3 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2925-01-013-9867
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RP | SU:GAS TURBINE ENGINES (FSC RESIDUAL MMAC) |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | P | RESTRICTED REQUISITION - SECURITY ASSISTANCE PROGRAM (SAP) 1. Indicates item is stocked or acquired only for SAP (replaces Military Assistance Program (MAP)) requirements, or 2. Indicates item is nonstocked and materiel is ordered from the contractor for shipment directly to the foreign government. 3. Base, post, camp, or station will not requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
