Product Details | IGNITION COIL

2920-01-444-4994 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving

Part Alternates: UC16, 2920-01-444-4994, 01-444-4994, 2920014444994, 014444994

Engine Accessories | Engine Electrical System Components, Nonaircraft

Supply Group (FSG) NSN Assign. NIIN
29 08 MAY 1997 01-444-4994

Drawings & Photos | NSN 2920-01-444-4994


Cross Reference | NSN 2920-01-444-4994

Part Number Cage Code Manufacturer
UC16 04YQ9 CONWAY AUTO PARTS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2920-01-444-4994

Technical Data | NSN 2920-01-444-4994

Characteristic Specifications

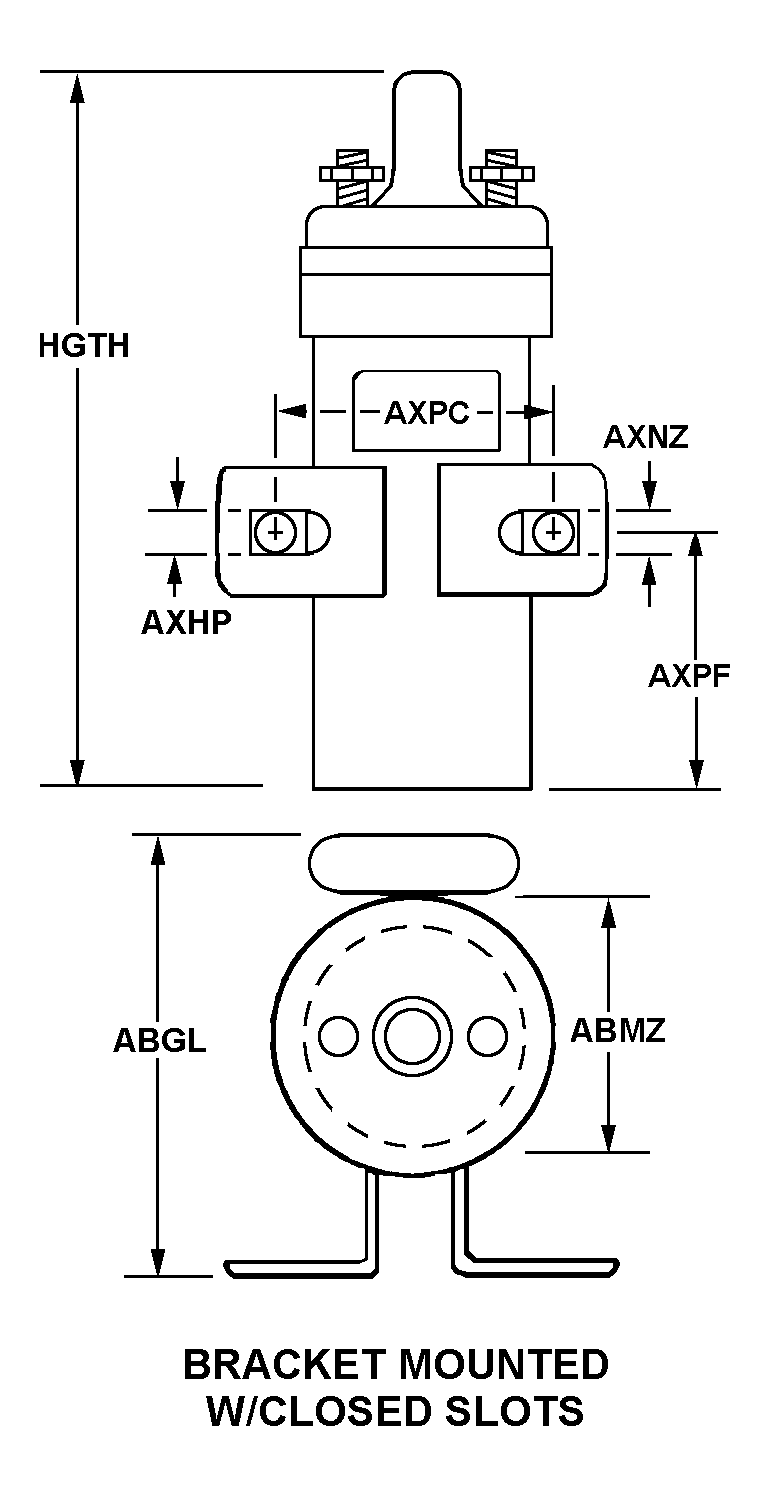

STYLE DESIGNATOR 22 BRACKET MOUNTED W/CLOSED SLOTS
DC PRIMARY VOLTAGE RATING 12.0 VOLTS NOMINAL
HIGH VOLTAGE TERMINAL TYPE FRICTION
HIGH VOLTAGE TERMINAL QUANTITY 1
LOW VOLTAGE TERMINAL TYPE THREADED STUD
LOW VOLTAGE TERMINAL QUANTITY 2
GROUND TERMINAL NOT PROVIDED
INCLOSURE MATERIAL TYPE METALLIC
VIBRATOR ADJUSTABILITY NONADJUSTABLE
FILLING MEDIUM COMPOUND
SUBMERSIBILITY NONSUBMERSIBLE
MOUNTING REMOVABILITY NONREMOVABLE
SPECIAL FEATURES FOR CHRYSLER 1979 THRU 1990

Restrictions/Controls & Freight Information | NSN 2920-01-444-4994

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 063120 SPARK COILS IN BOXES/PKGS 1241/1273
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2920-01-444-4994

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
