NSN 2920-01-102-0709 C04100112, 8227267-10, 8227056-01
Product Details | IGNITION COIL
2920-01-102-0709 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: C04100112, 8227267-10, 8227056-01, 8227267, 8227267-01, 04100112, 1HP24718, 1-HP2-4718, 34058, 2920-01-102-0709, 01-102-0709, 2920011020709, 011020709, 822705601, 822726710, 822726701
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 11 OCT 1980 | 01-102-0709 | 00303 ( COIL, IGNITION ) |

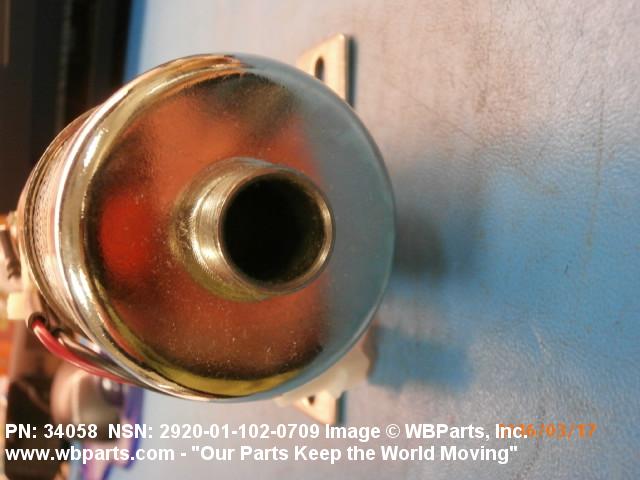

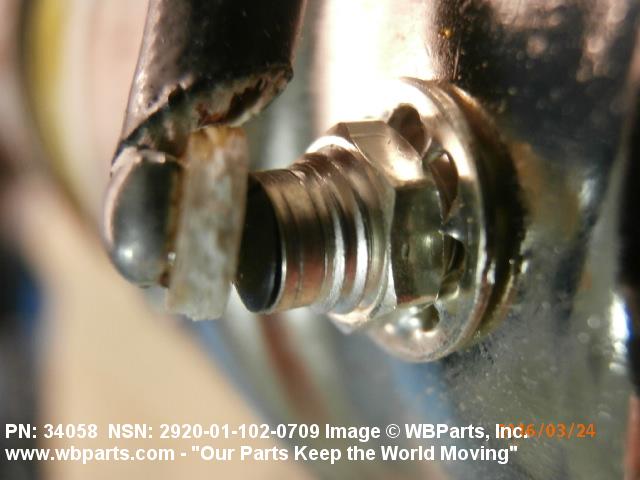

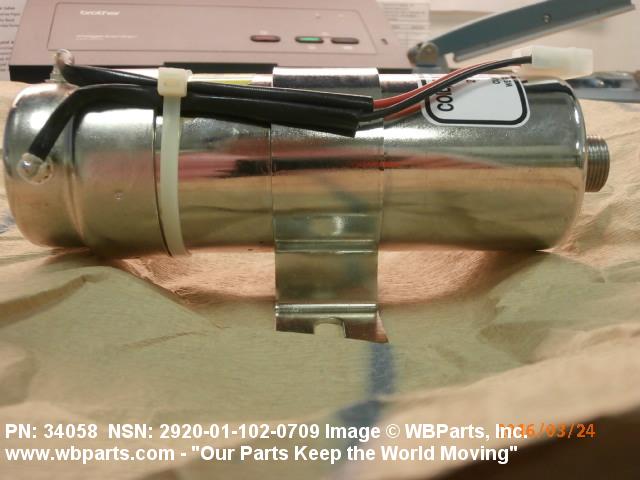

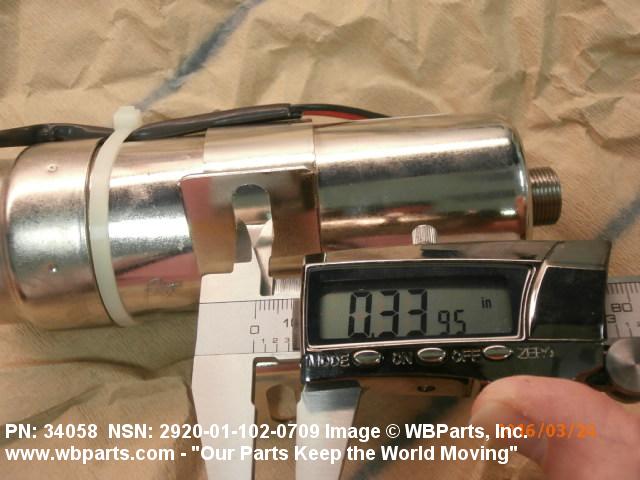

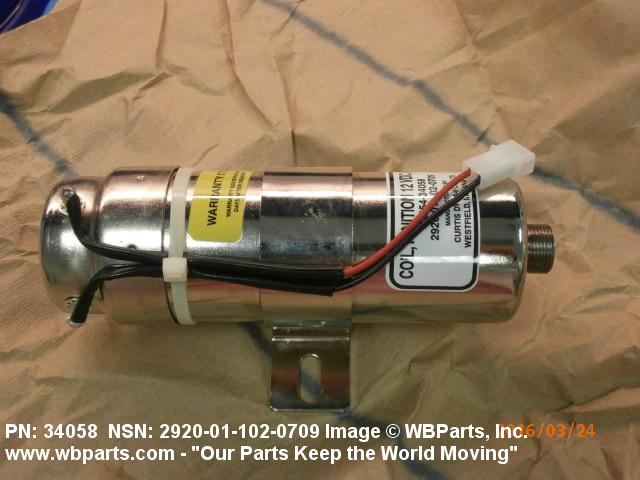

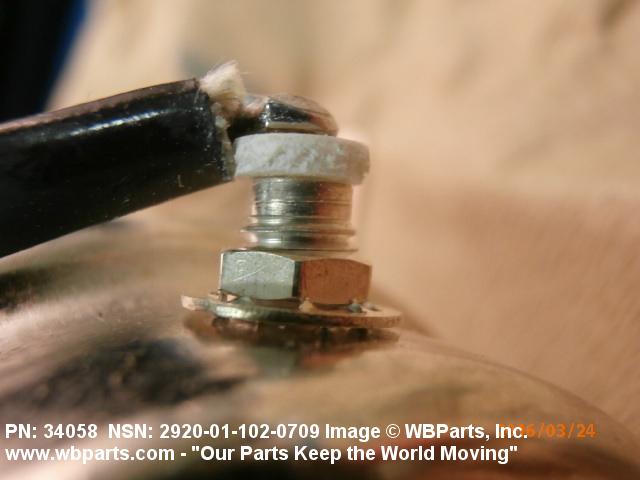

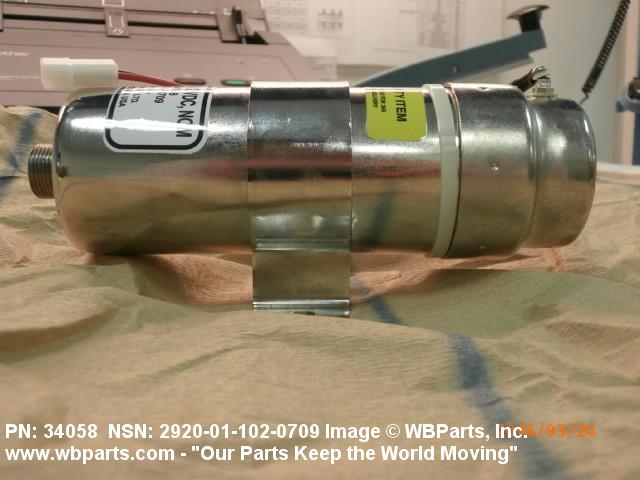

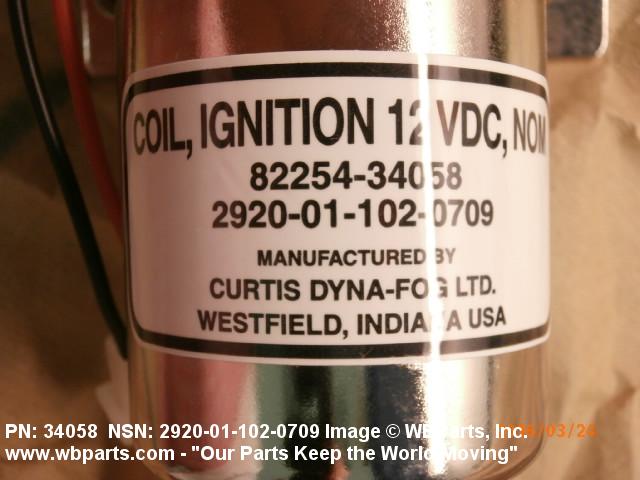

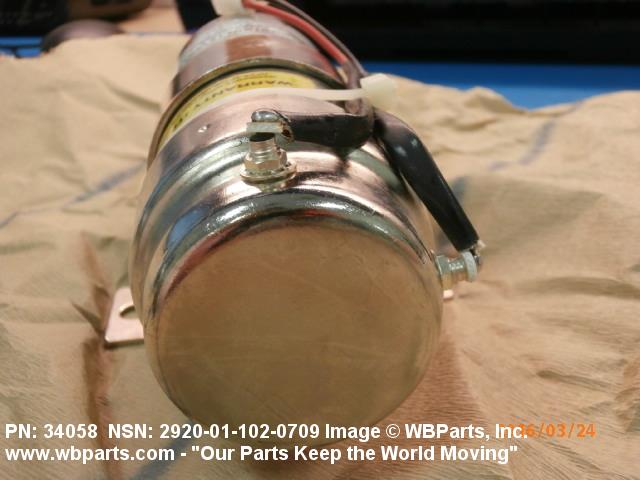

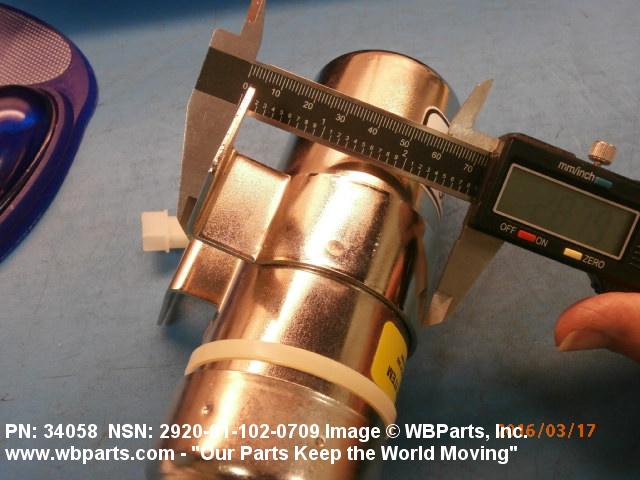

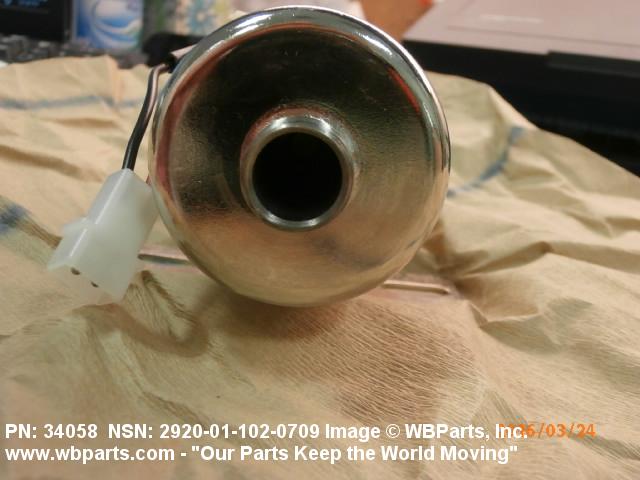

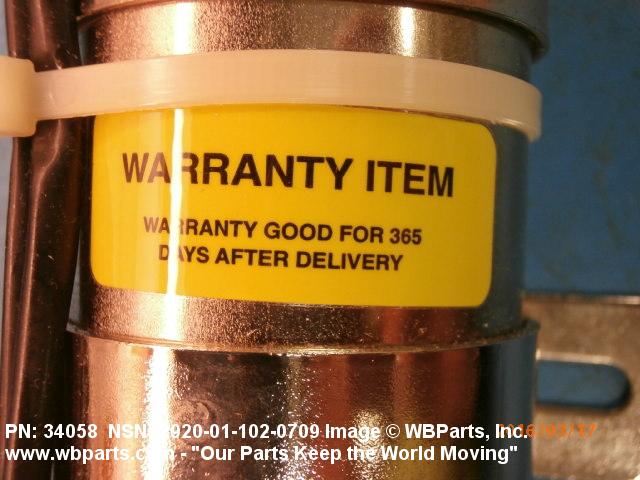

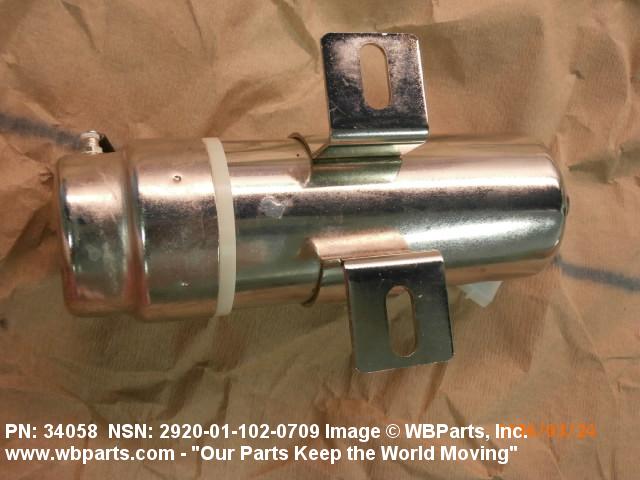

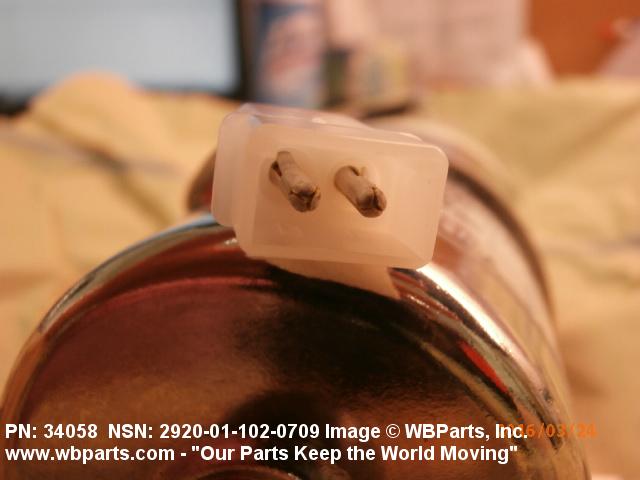

Drawings & Photos | NSN 2920-01-102-0709
Demand History | NSN 2920-01-102-0709
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-01-102-0709 | 2024-11-330 | 1 | CA |
| 822726701 | 2024-09-267 | 1 | CN |
| 2920-01-102-0709 | 2024-06-178 | 1 | US |
| 2920-01-102-0709 | 2024-01-01 | 1 | US |
| 2920-01-102-0709 | 2023-07-202 | 3 | us |
| 2920-01-102-0709 | 2023-07-202 | 10 | us |
| 2920-01-102-0709 | 2023-02-54 | 1 | US |
| 34058 | 2023-02-45 | 2 | US |
| 2920-01-102-0709 | 2023-02-41 | 1 | US |
| 2920-01-102-0709 | 2023-02-41 | 2 | US |
| 2920-01-102-0709 | 2023-01-11 | 13 | us |
| 2920-01-102-0709 | 2022-12-354 | 1 | US |
| 2920-01-102-0709 | 2022-02-42 | 1 | US |
| 2920-01-102-0709 | 2022-02-32 | 1 | US |
| 2920-01-102-0709 | 2021-09-265 | 1 | JP |
| 822726701 | 2021-09-265 | 1 | JP |
| 2920-01-102-0709 | 2021-03-71 | 1 | Canada |
| 2920-01-102-0709 | 2020-01-16 | 1 | US |
| 2920-01-102-0709 | 2019-12-348 | 3 | US |
| 1-HP2-4718 | 2019-07-211 | 16 | DIBBS |
| 34058 | 2019-07-211 | 16 | DIBBS |
| 2920-01-102-0709 | 2019-04-113 | 1 | US |
| 2920-01-102-0709 | 2019-02-36 | 2 | US |
| 1-HP2-4718 | 2019-01-27 | 12 | DIBBS |
| 34058 | 2019-01-27 | 12 | DIBBS |
| 2920-01-102-0709 | 2018-12-347 | 1 | US |
| 2920-01-102-0709 | 2018-05-134 | 2 | United States |
| 2920-01-102-0709 | 2018-01-15 | 1 | US |
| 2920-01-102-0709 | 2018-01-04 | 1 | US |
| 2920-01-102-0709 | 2017-11-306 | 13 | DIBBS |
| 2920-01-102-0709 | 2017-10-289 | 1 | US |
| 2920-01-102-0709 | 2017-10-287 | 1 | United States |
| 2920-01-102-0709 | 2017-10-286 | 1 | United States |
| 2920-01-102-0709 | 2017-05-137 | 3 | South Korea |
| 2920-01-102-0709 | 2017-04-99 | 4 | US |
| 2920-01-102-0709 | 2017-04-99 | 21 | DIBBS |
| 2920-01-102-0709 | 2016-12-364 | 22 | DIBBS |
| 2920-01-102-0709 | 2016-08-244 | 1 | US |
| 2920-01-102-0709 | 2016-08-244 | 1 | US |
| 2920-01-102-0709 | 2016-08-227 | 3 | US |
| 2920-01-102-0709 | 2016-05-126 | 6 | United States |
| 2920-01-102-0709 | 2016-03-68 | 1 | United States |
| 2920-01-102-0709 | 2015-02-41 | 2 | US |
| 2920-01-102-0709 | 2014-10-274 | 1 | us |
| 2920-01-102-0709 | 2013-05-142 | 0 | DIBBS |
| 04100112 | 2013-03-71 | 1 | US |
| 04100112 | 2013-03-71 | 3 | US |
| 2920-01-102-0709 | 2013-02-58 | 76 | DIBBS |
| 2920-01-102-0709 | 2013-02-42 | 1 | United States |
| 2920-01-102-0709 | 2012-10-303 | 3 | United States |
| 2920-01-102-0709 | 2012-10-290 | 51 | DIBBS |
| 2920-01-102-0709 | 2012-09-261 | 1 | US |
| 2920-01-102-0709 | 2012-08-220 | 1 | United States |
| 04100112 | 2012-04-96 | 1 | UM |
| 2920-01-102-0709 | 2012-03-62 | 8 | DIBBS |
| 2920-01-102-0709 | 2012-01-31 | 1 | United States |
| 2920-01-102-0709 | 2011-01-11 | 1 | US |
| 2920-01-102-0709 | 2010-12-340 | 1 | US |
| 2920-01-102-0709 | 2010-08-231 | 1 | United States |
| 2920-01-102-0709 | 2010-01-29 | 3 | United States |
| 2920-01-102-0709 | 2009-03-62 | 4 | US |
Cross Reference | NSN 2920-01-102-0709
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 04100112 | 57386 | C-WAY INDUSTRIES INC |
| 1-HP2-4718 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| 34058 | 82254 | CURTIS DYNA-FOG, LTD. |
| 8227056-01 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 8227267 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 8227267-01 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 8227267-10 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| C04100112 | 57386 | C-WAY INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-01-102-0709
Related Products | NSN 2920-01-102-0709
Technical Data | NSN 2920-01-102-0709
| Characteristic | Specifications |
|---|---|

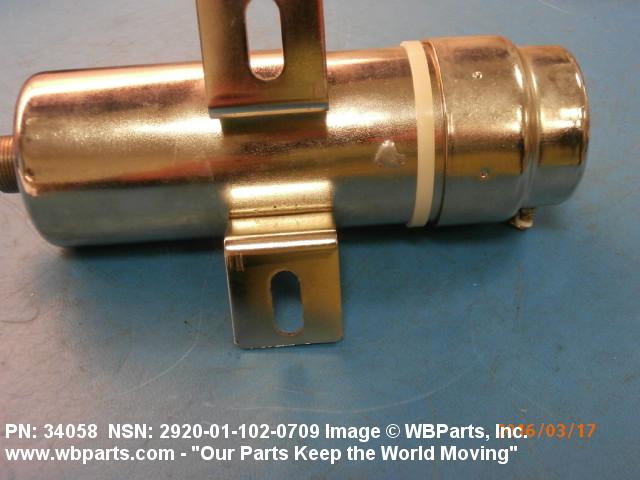

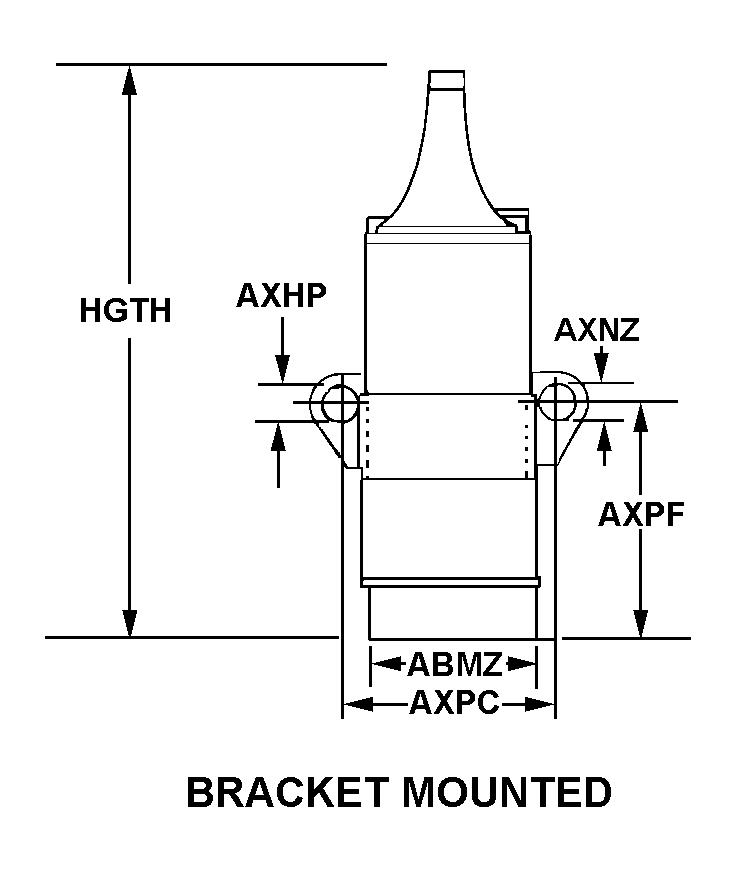

| STYLE DESIGNATOR | 5 BRACKET MOUNTED |

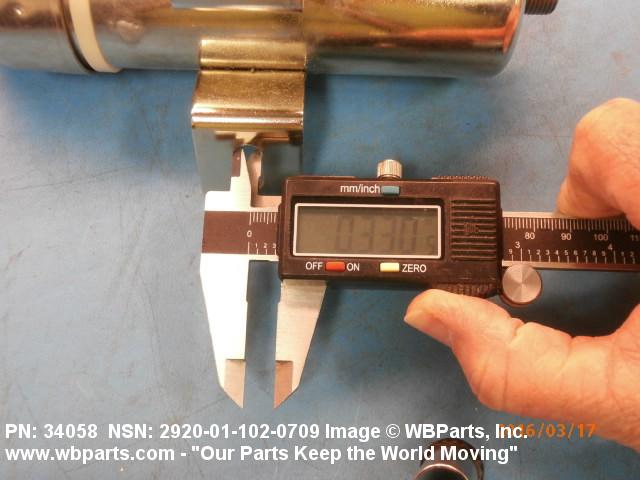

| FIRST MOUNTING HOLE DIAMETER | 0.313 INCHES NOMINAL |
| SECOND MOUNTING HOLE DIAMETER | 0.313 INCHES NOMINAL |

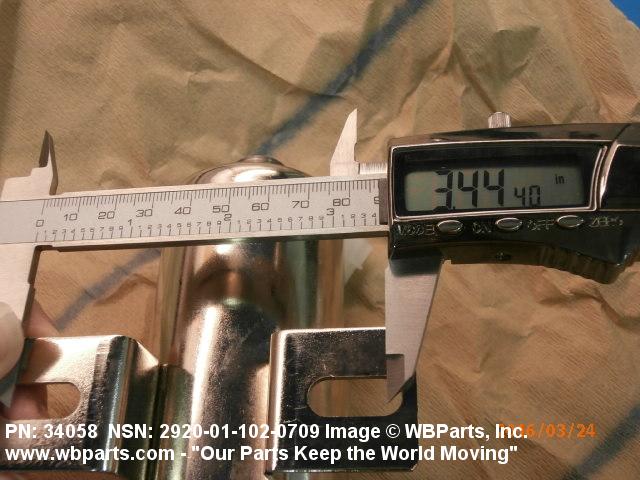

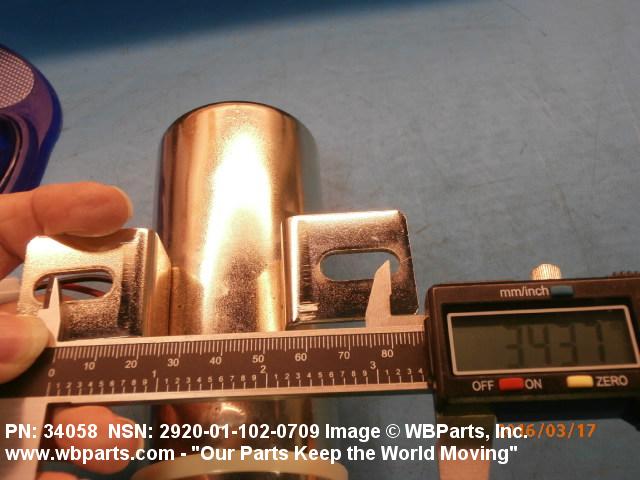

| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 3.438 INCHES NOMINAL |
| DISTANCE FROM BASE OF COIL TO MOUNTING | 3.000 INCHES NOMINAL |
| HEIGHT | 6.500 INCHES NOMINAL |
| GROUND TERMINAL | NOT PROVIDED |
| INCLOSURE MATERIAL TYPE | METALLIC |
| FILLING MEDIUM | COMPOUND |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |

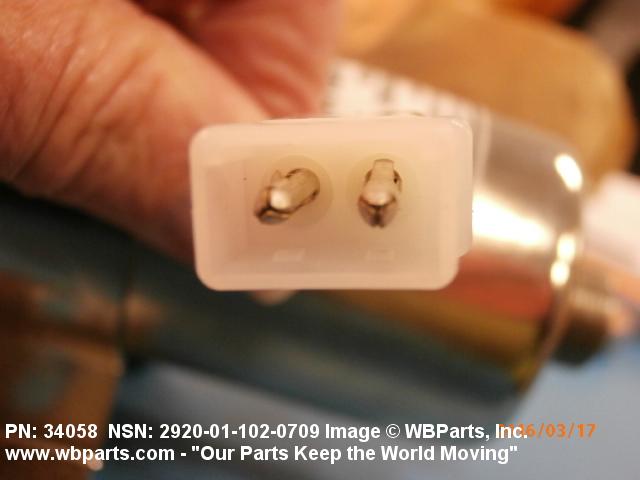

| SPECIAL FEATURES | POLORIZED PLUG AMP 1-480319-0; TERMINAL 60620-1 |
| III FSC APPLICATION DATA | ENGINE ELECTRICAL SYSTEM COMPONENTS,NONAIRCRAFT |
Restrictions/Controls & Freight Information | NSN 2920-01-102-0709
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063120 | SPARK COILS IN BOXES/PKGS 1241/1273 |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-01-102-0709
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Materiel Management Aggregation Code | YH | TG:MISCELLANEOUS INDUSTRIAL EQUIPMENT |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
