NSN 2920-01-168-7891 MFY6701UT, MFY-6701UT, 2920PL0649312
Product Details | ELECTRICAL ENGINE STARTER
2920-01-168-7891 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: MFY6701UT, MFY-6701UT, 2920PL0649312, 5578787, 2920-01-168-7891, 01-168-7891, 2920011687891, 011687891
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 23 DEC 1983 | 01-168-7891 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |

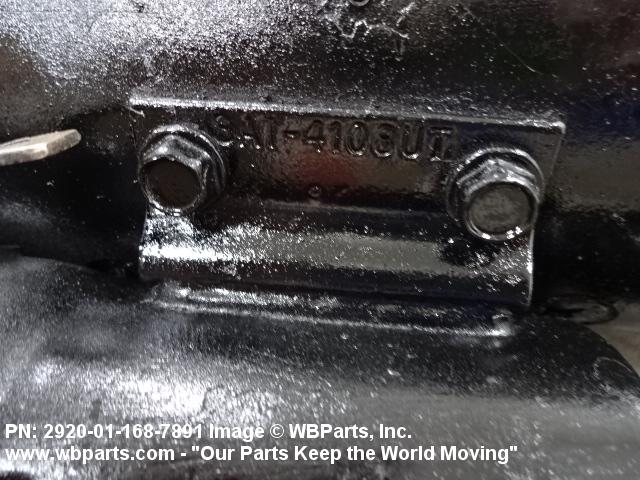

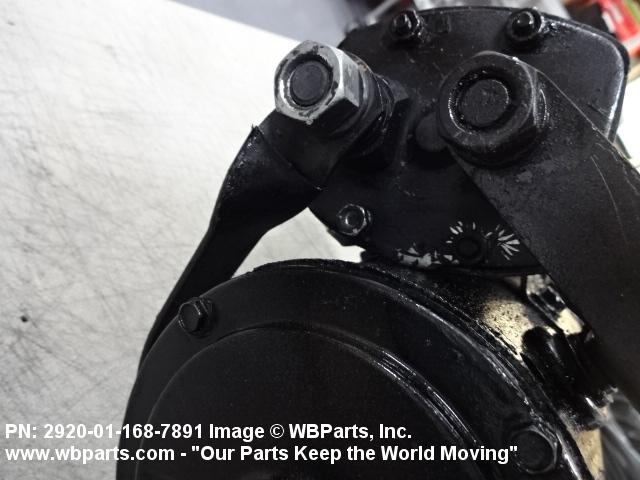

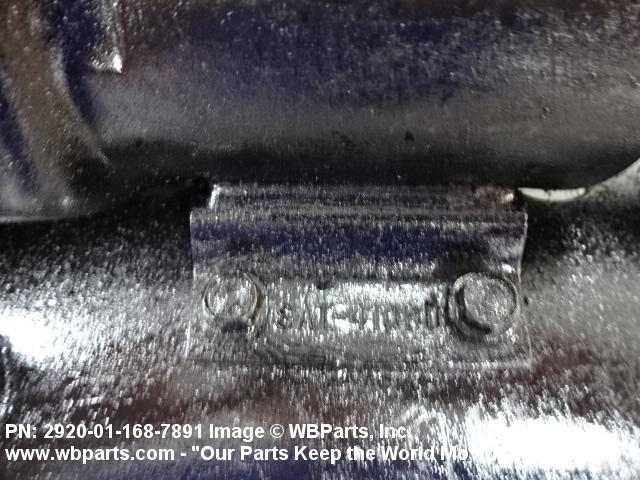

Drawings & Photos | NSN 2920-01-168-7891
Demand History | NSN 2920-01-168-7891
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-01-168-7891 | 2021-04-95 | 1 | US |
| 2920-01-168-7891 | 2020-11-335 | 1 | US |
| 2920-01-168-7891 | 2018-05-141 | 2 | United Arab Emirates |
| 2920-01-168-7891 | 2017-03-72 | 3 | Colombia |
| MFY-6701UT | 2015-02-40 | 5 | US |
| 2920-01-168-7891 | 2013-07-184 | 15 | MANUAL |
| 011687891 | 2012-08-222 | 4 | US |
| 2920-01-168-7891 | 2012-08-215 | 6 | BH |
| 2920-01-168-7891 | 2010-12-341 | 36 | DIBBS |
| 2920-01-168-7891 | 2009-07-195 | 1 | US |
| 5578787 | 2009-02-55 | 1 | France |
| 2920-01-168-7891 | 2008-06-174 | 5 | Turkey |
| 2920-01-168-7891 | 2008-06-174 | 1 | Turkey |
| 2920-01-168-7891 | 2008-01-30 | 10 | US |
| 2920-01-168-7891 | 2007-04-114 | 1 | US |
Cross Reference | NSN 2920-01-168-7891
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-01-168-7891
Related Products | NSN 2920-01-168-7891
Technical Data | NSN 2920-01-168-7891
| Characteristic | Specifications |
|---|---|
| MOUNTING FLANGE SHAPE STYLE | 2 TRIANGULAR |
| VOLTAGE IN VOLTS | 24.0 |
| LOCK TEST CURRENT RATING IN AMPS | NOT RATED |
| TERMINAL TYPE AND QUANTITY | 4 THREADED STUD |
| MANUFACTURERS CODE | 68505 |
| DESIGN CONTROL REFERENCE | MFY-6701UT |
Restrictions/Controls & Freight Information | NSN 2920-01-168-7891
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040265 | CAPS/COVERS/DISCS/ENDS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-01-168-7891
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9A | Navy-owned stocks of parts peculiar to combat and tactical vehicles of Army design Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
