Product Details | ELECTRICAL ENGINE STARTER
2920-00-901-9296 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: MTRG0UH2405A, SAW9019296, SAW-9019296, 1113191, 2920-00-901-9296, 00-901-9296, 2920009019296, 009019296
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1960 | 00-901-9296 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
Drawings & Photos | NSN 2920-00-901-9296
Demand History | NSN 2920-00-901-9296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-901-9296 | 2018-04-93 | 33 | DIBBS |
| 2920-00-901-9296 | 2018-01-04 | 44 | DIBBS |
| 2920-00-901-9296 | 2017-12-353 | 44 | DIBBS |
| 2920-00-901-9296 | 2017-12-340 | 44 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-901-9296
Related Products | NSN 2920-00-901-9296
Technical Data | NSN 2920-00-901-9296
| Characteristic | Specifications |
|---|---|

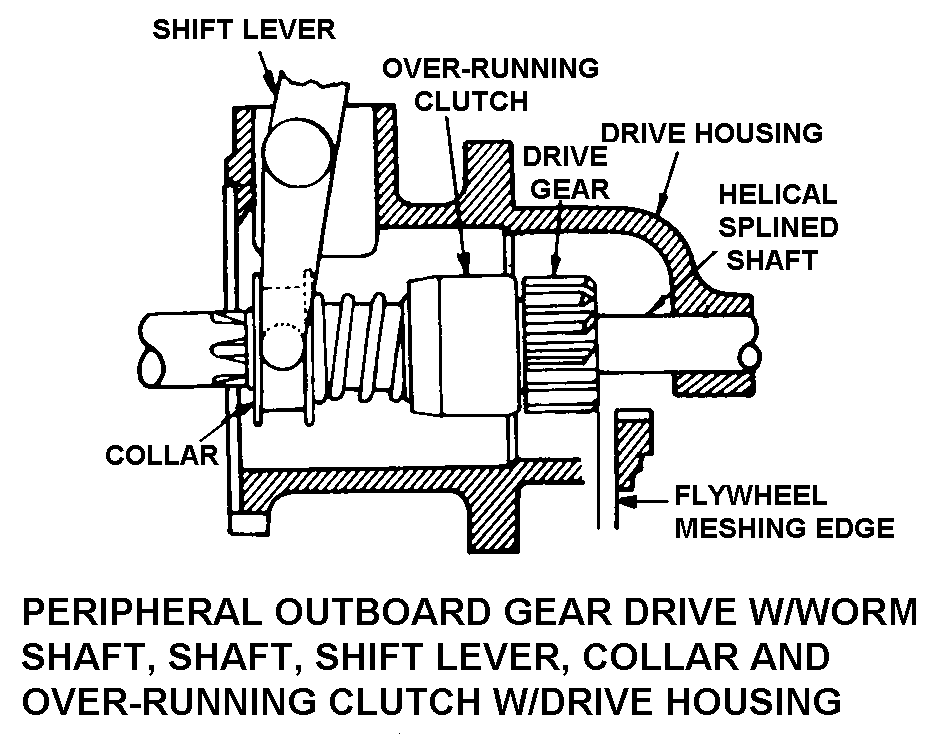

| ENGAGING MECHANISM STYLE | 17 PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, SHAFT, SHIFT LEVER, COLLAR AND OVER-RUNNING CLUTCH W/DRIVE HOUSING |
| ENGAGING MECHANISM OPENING ANGULAR DEVIATION IN DEG | 150.0 |
| LEVER ACTUATION METHOD | SOLENOID |

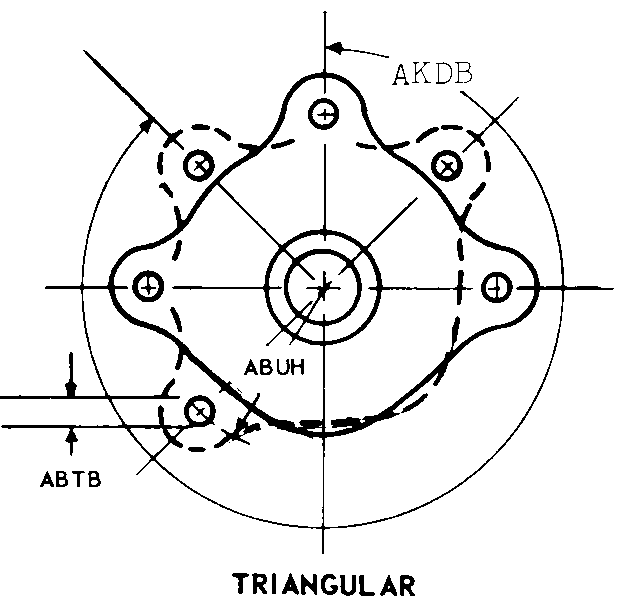

| MOUNTING FLANGE SHAPE STYLE | 2 TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.404 INCHES MINIMUM AND 0.414 INCHES MAXIMUM |
| MOUNTING HOLE CIRCLE RADIUS | 2.500 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 330.0 |
| VOLTAGE IN VOLTS | 24.0 |
| LOCK TEST CURRENT RATING IN AMPS | NOT RATED |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| ARMATURE ACTUATION DEVICE TYPE | RELAY-SOLENOID |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| FEATURES PROVIDED | CORROSION RESISTANT AND FUNGUS RESISTANT TREATMENT |
| MANUFACTURERS CODE | 1LW55 |
| DESIGN CONTROL REFERENCE | 1113191 |
