NSN 2920-00-640-7869 UDR1117496, 93-1117496, 0076990
Product Details | ENGINE ACCESSORY GENERATOR
2920-00-640-7869 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: UDR1117496, 93-1117496, 0076990, 076990, 10A1117496, 1117496, 13217E5943, 166504H1, 4H2501, 53834DS, 2920-00-640-7869, 00-640-7869, 2920006407869, 006407869, 931117496
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-640-7869 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
Drawings & Photos | NSN 2920-00-640-7869
Cross Reference | NSN 2920-00-640-7869
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0076990 | 89926 | NEW HOLLAND CONSTRUCTION |
| 076990 | 89926 | NEW HOLLAND CONSTRUCTION |
| 10A1117496 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 1117496 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1117496 | 1LW55 | REMY, INC. |
| 1117496 | 24617 | GENERAL MOTORS CORP |
| 1117496 | 61928 | GENERAL MOTORS CORP AC-DELCO DIV |
| 1117496 | 72582 | MTU AMERICA INC. |
| 13217E5943 | 97403 | CECOM LR CENTER |
| 166504H1 | 0SAT8 | KOMATSU AMERICA CORP. |
| 166504H1 | 29510 | KOMATSU AMERICAN INTL CO |
| 4H2501 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 53834DS | 28265 | HERCULES ENGINE CO INC |
| 93-1117496 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| UDR1117496 | 61465 | GARWOOD/FELLER INC GARWOOD WINCH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-640-7869
Related Products | NSN 2920-00-640-7869
Technical Data | NSN 2920-00-640-7869
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 24.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 40.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | NOT RATED |
| GROUNDING METHOD | INTERNAL |
| GROUND POLARITY TYPE | NEGATIVE OR POSITIVE |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | 15 BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 5.875 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 5.880 INCHES NOMINAL |
| DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET | 7.243 INCHES MINIMUM AND 7.257 INCHES MAXIMUM |
| DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET | 8.123 INCHES MINIMUM AND 8.137 INCHES MAXIMUM |
| BOTTOM MOUNTING HOLE DIAMETER | 0.453 INCHES NOMINAL |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 180.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 159.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 16 |
| MOUNTING HOLE THREAD CLASS | 2B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |

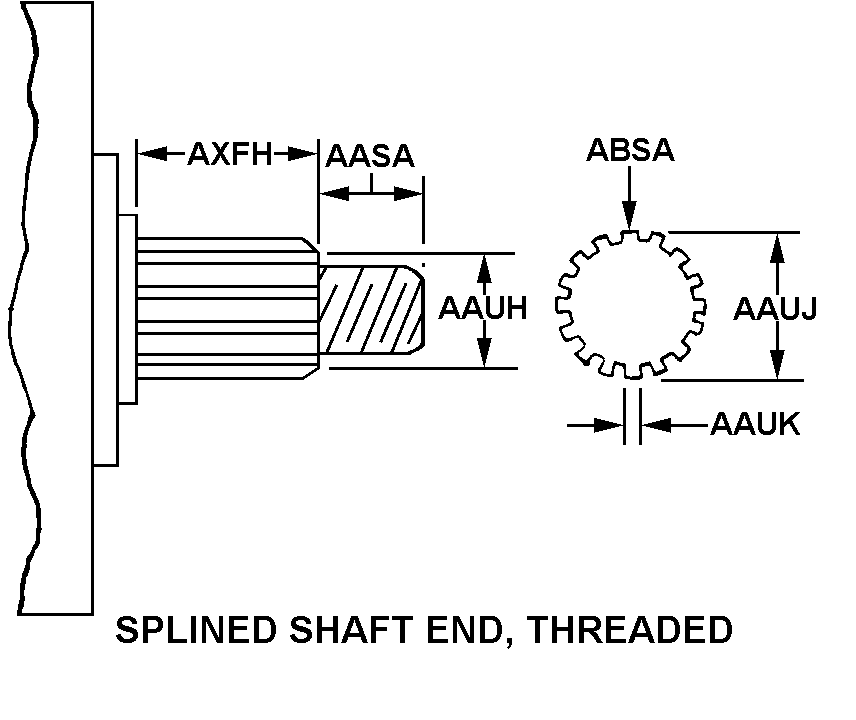

| SHAFT DRIVE END STYLE | 3 SPLINED SHAFT END, THREADED |
| THREAD LENGTH | 0.781 INCHES NOMINAL |
| SPLINE MINOR DIAMETER | 0.763 INCHES NOMINAL |
| SPLINE MAJOR DIAMETER | 0.874 INCHES NOMINAL |
| SPLINE WIDTH | 0.196 INCHES NOMINAL |
| SPLINE LENGTH | 2.000 INCHES NOMINAL |
| SPLINE QUANTITY | 13 |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FUNGUS RESISTANT |
| FURNISHED ITEMS | TERMINAL SHIELD |
| III FSC APPLICATION DATA | ENGINE ELECTRICAL SYSTEM,NONAIRCRAFT |
