NSN 2920-00-640-7889 E59426M, 00-640-7889, 006407889
Product Details | ENGINE ACCESSORY GENERATOR
2920-00-640-7889 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: E59426M, 2920-00-640-7889, 00-640-7889, 2920006407889, 006407889
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-640-7889 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
Drawings & Photos | NSN 2920-00-640-7889
Cross Reference | NSN 2920-00-640-7889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E59426M | 12204 | DAIMLER CHRYSLER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-640-7889
Technical Data | NSN 2920-00-640-7889
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 12.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 12.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 1500 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | ANY ACCEPTABLE |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | ANY ACCEPTABLE |
| GROUNDING METHOD | EXTERNAL |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | 8 FLANGE MTD W/TWO MTG SLOTS AND ONE MTG HOLE |
| PILOT DIAMETER | 3.624 INCHES NOMINAL |
| SLOT WIDTH | 0.438 INCHES NOMINAL |
| SLOT LENGTH | 1.750 INCHES NOMINAL |
| PILOT HEIGHT | 0.188 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING SLOTS | 3.250 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 2.812 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TOP MOUNTING SLOT AND BOTTOM MOUNTING HOLE | 5.375 INCHES NOMINAL |

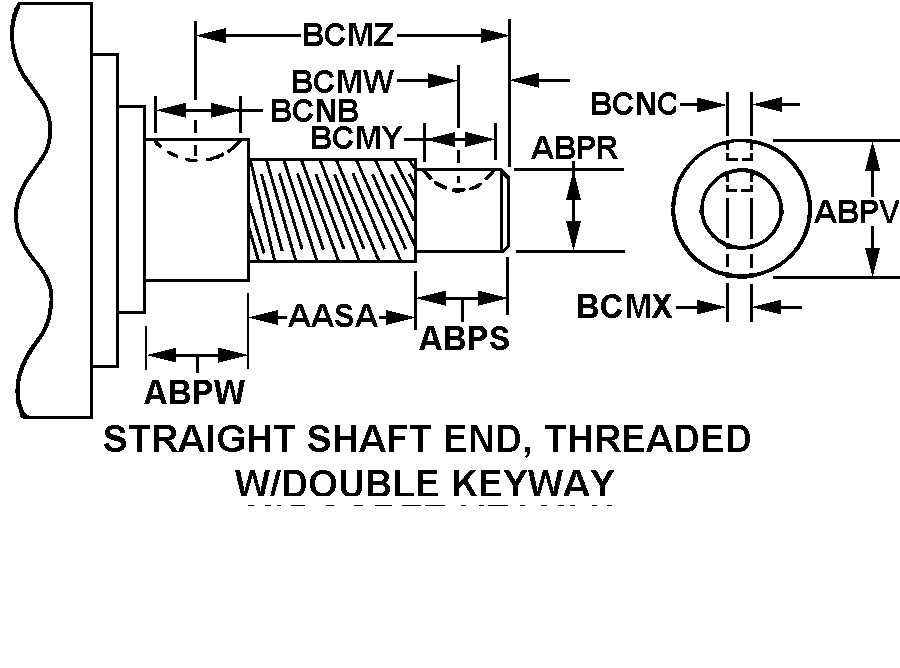

| SHAFT DRIVE END STYLE | 5 STRAIGHT SHAFT END, THREADED W/DOUBLE KEYWAY |
| THREAD LENGTH | 0.438 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.499 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.562 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.750 INCHES NOMINAL |
| THIRD STEP LENGTH | 0.750 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST KEYWAY CENTER | 0.312 INCHES NOMINAL |
| FIRST KEYWAY WIDTH | 0.125 INCHES NOMINAL |
| FIRST KEYWAY LENGTH | 0.500 INCHES NOMINAL |
| DISTANCE FROM END TO SECOND KEYWAY CENTER | 1.562 INCHES NOMINAL |
| SECOND KEYWAY LENGTH | 0.625 INCHES NOMINAL |
| SECOND KEYWAY WIDTH | 0.156 INCHES NOMINAL |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| MAXIMUM OPERATING ALTITUDE RATING | NOT RATED |
| III COTTER PIN HOLE | INCLUDED |
| MANUFACTURERS CODE | 12204 |
| DESIGN CONTROL REFERENCE | E59426M |
Restrictions/Controls & Freight Information | NSN 2920-00-640-7889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-640-7889
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
