NSN 2920-00-640-7640 1115279, 324988, 00-640-7640
Product Details | IGNITION COIL
2920-00-640-7640 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 1115279, 324988, 2920-00-640-7640, 00-640-7640, 2920006407640, 006407640
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-640-7640 | 00303 ( COIL, IGNITION ) |
Drawings & Photos | NSN 2920-00-640-7640
Cross Reference | NSN 2920-00-640-7640
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-640-7640
Related Products | NSN 2920-00-640-7640
Technical Data | NSN 2920-00-640-7640
| Characteristic | Specifications |
|---|---|

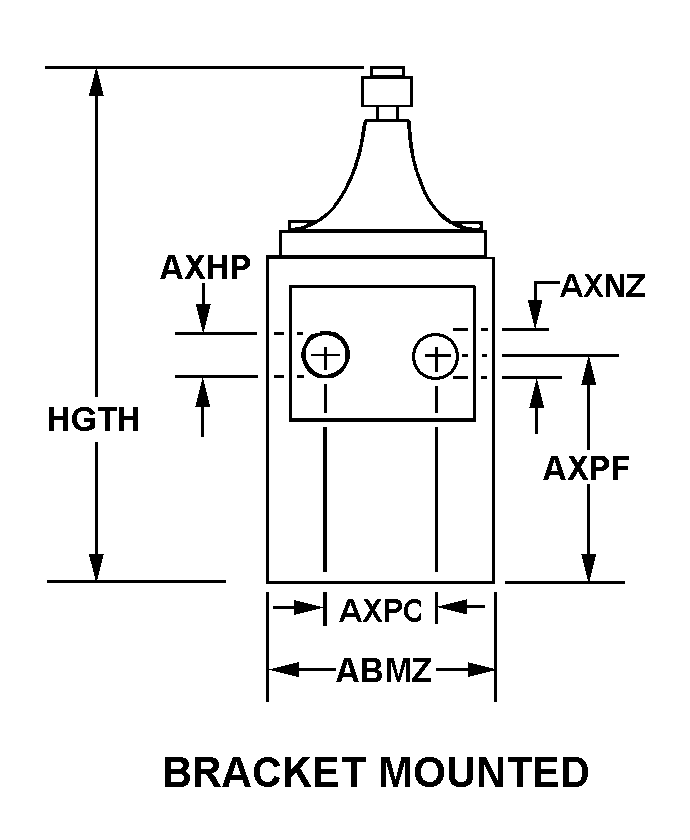

| STYLE DESIGNATOR | 3 BRACKET MOUNTED |
| DIAMETER | 3.125 INCHES NOMINAL |
| FIRST MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| SECOND MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 2.000 INCHES NOMINAL |
| DISTANCE FROM BASE OF COIL TO MOUNTING | 3.188 INCHES NOMINAL |
| HEIGHT | 6.922 INCHES NOMINAL |
| DC PRIMARY VOLTAGE RATING | 24.0 VOLTS NOMINAL |
| HIGH VOLTAGE TERMINAL TYPE | SCREW |
| HIGH VOLTAGE TERMINAL QUANTITY | 1 |
| LOW VOLTAGE TERMINAL TYPE | THREADED STUD |
| LOW VOLTAGE TERMINAL QUANTITY | 2 |
| GROUND TERMINAL | NOT PROVIDED |
| INCLOSURE MATERIAL TYPE | METALLIC |
| FILLING MEDIUM | OIL |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING REMOVABILITY | NONREMOVABLE |
