NSN 2920-00-640-7282 M0011916MN, 53968DS, 99039S6301756473
Product Details | ELECTRICAL ENGINE STARTER
2920-00-640-7282 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: M0011916MN, 53968DS, 99039S6301756473, 99039S6301-756473, 2920-00-640-7282, 00-640-7282, 2920006407282, 006407282
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-640-7282 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
Drawings & Photos | NSN 2920-00-640-7282
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-640-7282
Technical Data | NSN 2920-00-640-7282
| Characteristic | Specifications |
|---|---|

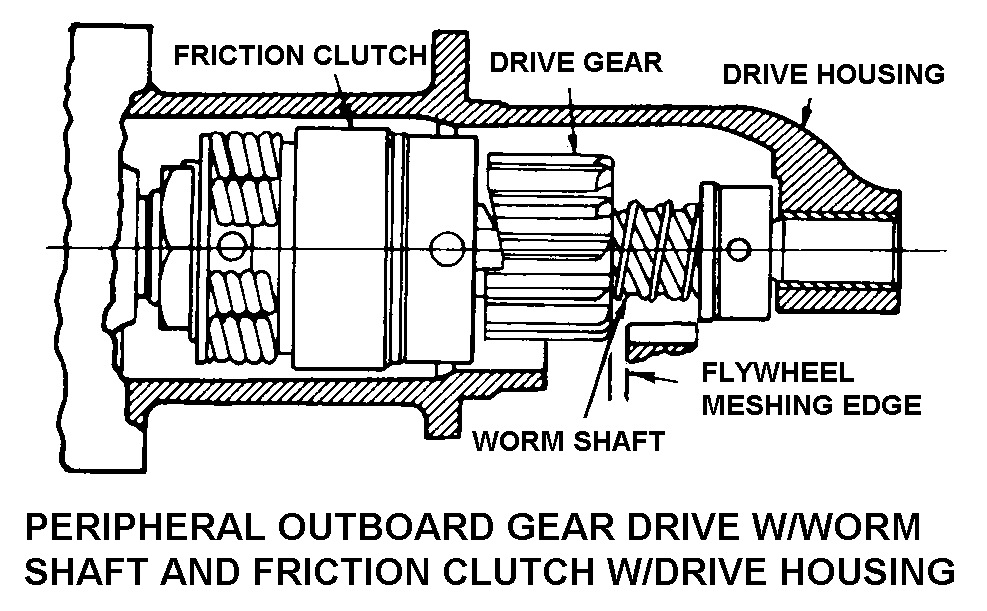

| ENGAGING MECHANISM STYLE | 1 PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT AND FRICTION CLUTCH W/DRIVE HOUSING |
| ENGAGING MECHANISM OPENING ANGULAR DEVIATION IN DEG | 270.0 |
| MOUNTING FLANGE SHAPE STYLE | 1 TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.656 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 2.875 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 90.0 |
| VOLTAGE IN VOLTS | 12.0 |
| LOCK TEST CURRENT RATING IN AMPS | NOT RATED |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
Restrictions/Controls & Freight Information | NSN 2920-00-640-7282
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-640-7282
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | S | Slow Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
