NSN 2920-00-354-0199 A215012, A291149, 10A1838409
Product Details | MOTOR FIELD WINDING
2920-00-354-0199 A winding which is a maintenance part for an electric motor.20329200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving61050018Motors, Electrical
Part Alternates: A215012, A291149, 10A1838409, 127100, 127700, 14G666, 15642, 1838409, 358281, 5B7835, 2920-00-354-0199, 00-354-0199, 2920003540199, 003540199
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-354-0199 | 15293 ( WINDING, MOTOR FIELD ) |

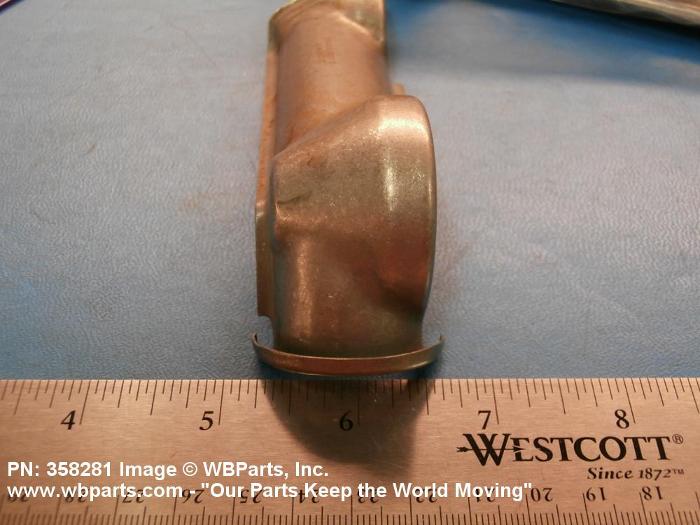

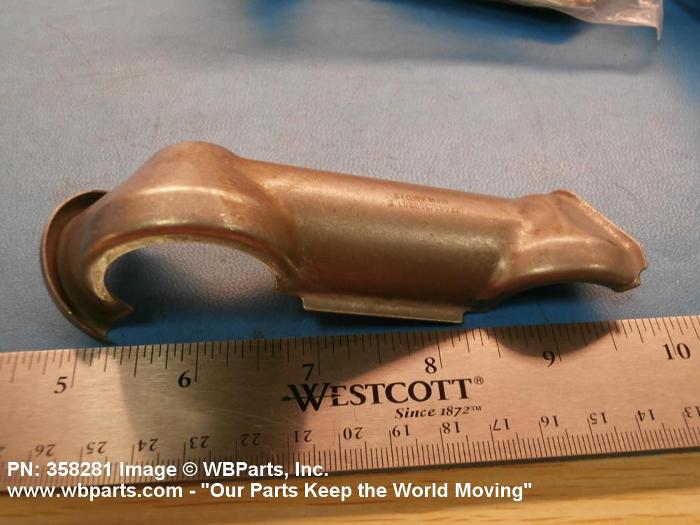

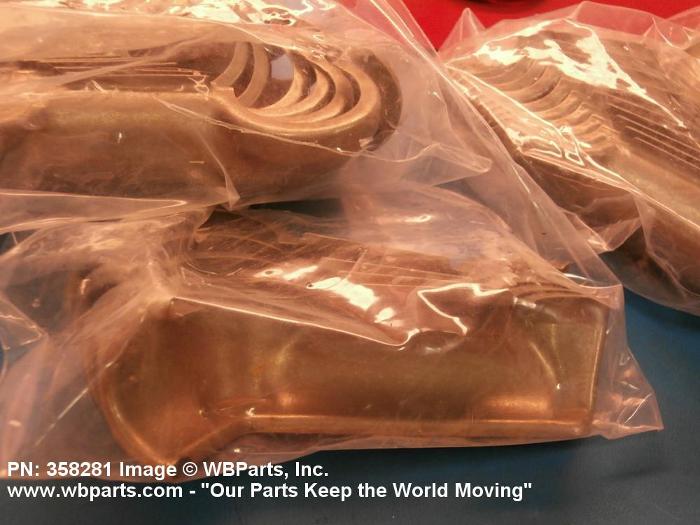

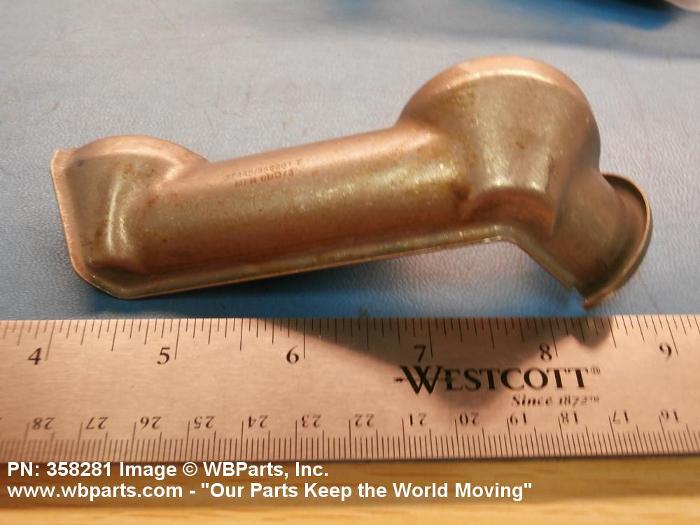

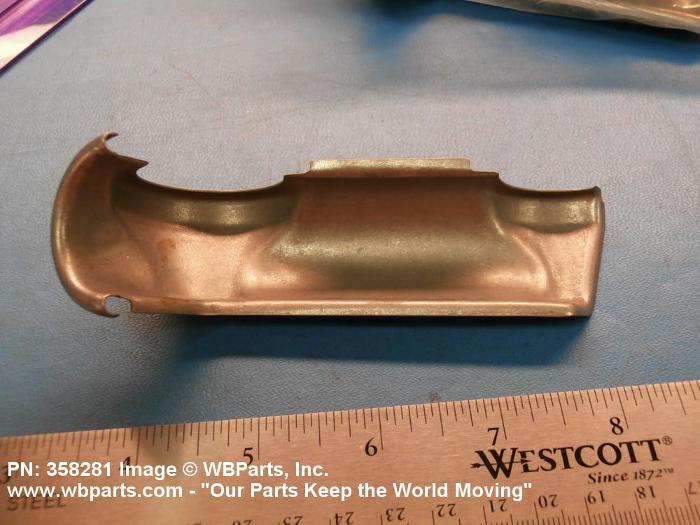

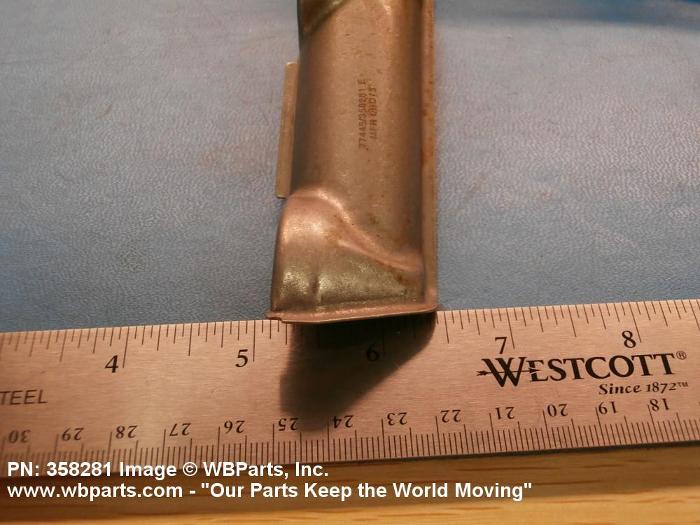

Drawings & Photos | NSN 2920-00-354-0199
Demand History | NSN 2920-00-354-0199
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 358281 | 2012-12-346 | 24 | Turkey |
| 358281 | 2012-11-331 | 24 | Turkey |
Cross Reference | NSN 2920-00-354-0199
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10A1838409 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 127100 | 76894 | CELTRAC CORP |
| 127100 | 93343 | WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT CORP |
| 127700 | 76894 | CELTRAC CORP |
| 14G666 | 90513 | ELGIN BRUSH CORP |
| 15642 | 61465 | GARWOOD/FELLER INC GARWOOD WINCH DIV |
| 1838409 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1838409 | 1LW55 | REMY, INC. |
| 1838409 | 24617 | GENERAL MOTORS CORP |
| 1838409 | 56442 | DIAMOND REO TRUCK CO |
| 1838409 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 358281 | 65282 | WHITE MOTOR CORP |
| 5B7835 | 95201 | NAPCO INTERNATIONAL LLC |
| A215012 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| A291149 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-354-0199
Technical Data | NSN 2920-00-354-0199
| Characteristic | Specifications |
|---|---|
| COIL TYPE AND QUANTITY | 2 CURVED |
| COIL INSIDE LENGTH | 2.562 INCHES NOMINAL ALL WINDINGS |
| COIL INSIDE WIDTH | 1.312 INCHES NOMINAL ALL WINDINGS |
| OUTSIDE LENGTH | 3.938 INCHES NOMINAL ALL WINDINGS |
| OUTSIDE WIDTH | 1.719 INCHES NOMINAL ALL WINDINGS |
| CURVATURE RADIUS | 1.938 INCHES NOMINAL ALL WINDINGS |
| THICKNESS | 0.375 INCHES NOMINAL ALL WINDINGS |
| CONDUCTOR TURN QUANTITY | 5.50 1ST WINDING 4.50 2ND WINDING |
| CONDUCTOR WIRE WIDTH | 0.281 INCHES NOMINAL ALL WINDINGS |
| CONDUCTOR WIRE THICKNESS | 0.085 INCHES NOMINAL ALL WINDINGS |
| TERMINAL TYPE AND QUANTITY | 2 FLAT WIRE LEAD ALL TERMINALS |
| COVERING MATERIAL | COTTON SINGLE COVERING MATERIAL |
| IMPREGNATION MATERIAL | VARNISH |
| III FSC APPLICATION DATA | STARTER,ENGINE,ELECTRICAL,NONAIRC RAFT |
| MANUFACTURERS CODE | 16764 |
| DESIGN CONTROL REFERENCE | 1838409 |
Restrictions/Controls & Freight Information | NSN 2920-00-354-0199
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061980 | FIELD COILS GENERATOR/MOTOR |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
