Product Details | ENGINE ACCESSORY GENERATOR
2920-00-294-3926 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 1455GN, 2920-00-294-3926, 00-294-3926, 2920002943926, 002943926
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-294-3926 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
Drawings & Photos | NSN 2920-00-294-3926
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-294-3926
Technical Data | NSN 2920-00-294-3926
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 24.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 5.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 3000 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 1500 |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | 800 |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |

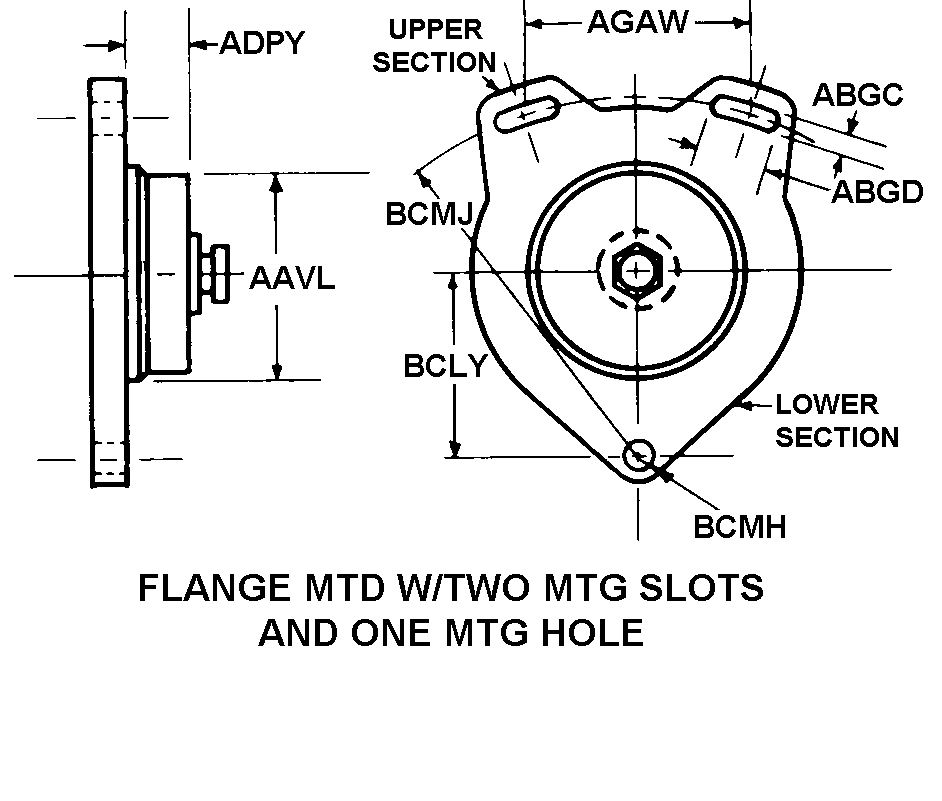

| MOUNTING STYLE | 8 FLANGE MTD W/TWO MTG SLOTS AND ONE MTG HOLE |
| PILOT DIAMETER | 3.249 INCHES NOMINAL |
| SLOT WIDTH | 0.500 INCHES NOMINAL |
| SLOT LENGTH | 1.125 INCHES NOMINAL |
| PILOT HEIGHT | 1.062 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING SLOTS | 3.625 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 3.062 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 0.469 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TOP MOUNTING SLOT AND BOTTOM MOUNTING HOLE | 5.875 INCHES NOMINAL |
| SHAFT DRIVE END STYLE | 1 STRAIGHT SHAFT END, THREADED, W/KEYWAY |
| THREAD LENGTH | 0.688 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.749 INCHES NOMINAL |
| KEYWAY WIDTH | 0.156 INCHES NOMINAL |
| UNTHREADED PORTION LENGTH | 1.250 INCHES NOMINAL |
| KEYWAY LENGTH | 0.750 INCHES NOMINAL |
| DISTANCE FROM END TO KEYWAY CENTER | 1.250 INCHES NOMINAL |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.500 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| MAXIMUM OPERATING ALTITUDE RATING | NOT RATED |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| FURNISHED ITEMS | OVERLOAD PROTECTIVE DEVICE |
