Product Details | ENGINE ACCESSORY GENERATOR
2920-00-294-3932 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 1105955, 2920-00-294-3932, 00-294-3932, 2920002943932, 002943932
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-294-3932 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
Drawings & Photos | NSN 2920-00-294-3932
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-294-3932
Technical Data | NSN 2920-00-294-3932
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 24.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 10.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 2050 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 2000 |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | 1850 |
| SHAFT ROTATION DIRECTION | CLOCKWISE |

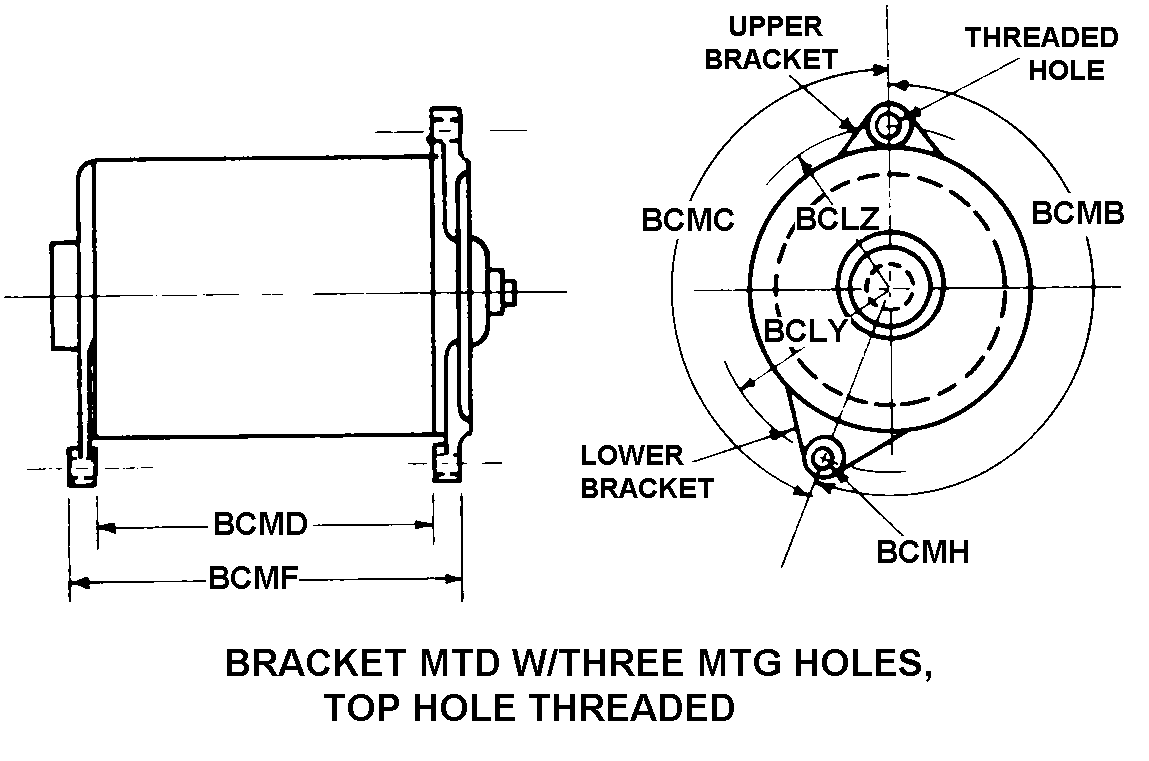

| MOUNTING STYLE | 15 BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 3.875 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 3.625 INCHES NOMINAL |
| DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET | 7.250 INCHES NOMINAL |
| DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET | 8.250 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 193.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 169.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 20 |
| MOUNTING HOLE THREAD CLASS | 1B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |

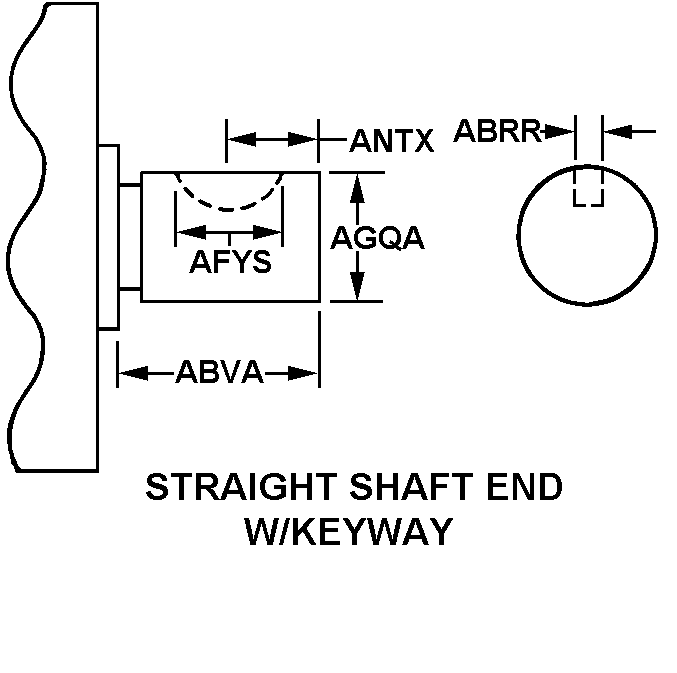

| SHAFT DRIVE END STYLE | 2 STRAIGHT SHAFT END W/KEYWAY |
| KEYWAY WIDTH | 0.125 INCHES NOMINAL |
| UNTHREADED PORTION LENGTH | 1.125 INCHES NOMINAL |
| KEYWAY LENGTH | 0.500 INCHES NOMINAL |
| LARGEST DIAMETER | 0.625 INCHES NOMINAL |
| DISTANCE FROM END TO KEYWAY CENTER | 0.333 INCHES NOMINAL |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| MAXIMUM OPERATING ALTITUDE RATING | NOT RATED |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FUNGUS RESISTANT |
| FURNISHED ITEMS | COOLING FAN AND DRIVE PULLEY |
| SPECIAL FEATURES | EXTERNAL BLAST COOLING |
| III UNPACKAGED UNIT LENGTH | 8.750 INCHES NOMINAL |
| III UNPACKAGED UNIT WIDTH | 5.250 INCHES NOMINAL |
| III UNPACKAGED UNIT HEIGHT | 5.250 INCHES NOMINAL |
| III TERMINAL TYPE | THREADED STUD |
| III TERMINAL QUANTITY | 2 |
| MANUFACTURERS CODE | 16764 |
| DESIGN CONTROL REFERENCE | 1105955 |
