NSN 2920-00-230-1769 A10737, A107-37, 412
Product Details | ELECTRICAL ENGINE STARTER
2920-00-230-1769 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: A10737, A107-37, 412, 7417955, 16HM0560, 2920-00-230-1769, 00-230-1769, 2920002301769, 002301769
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-230-1769 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
Drawings & Photos | NSN 2920-00-230-1769
Demand History | NSN 2920-00-230-1769
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 412 | 2018-08-227 | 5 | United States |
Cross Reference | NSN 2920-00-230-1769
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16HM0560 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 412 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 412 | 19107 | DART TRUCK CO |
| 412 | 1LW55 | REMY, INC. |
| 412 | 24617 | GENERAL MOTORS CORP |
| 7417955 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| A107-37 | 35301 | DRESSER INDUSTRIES INC LEROI DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-230-1769
Technical Data | NSN 2920-00-230-1769
| Characteristic | Specifications |
|---|---|

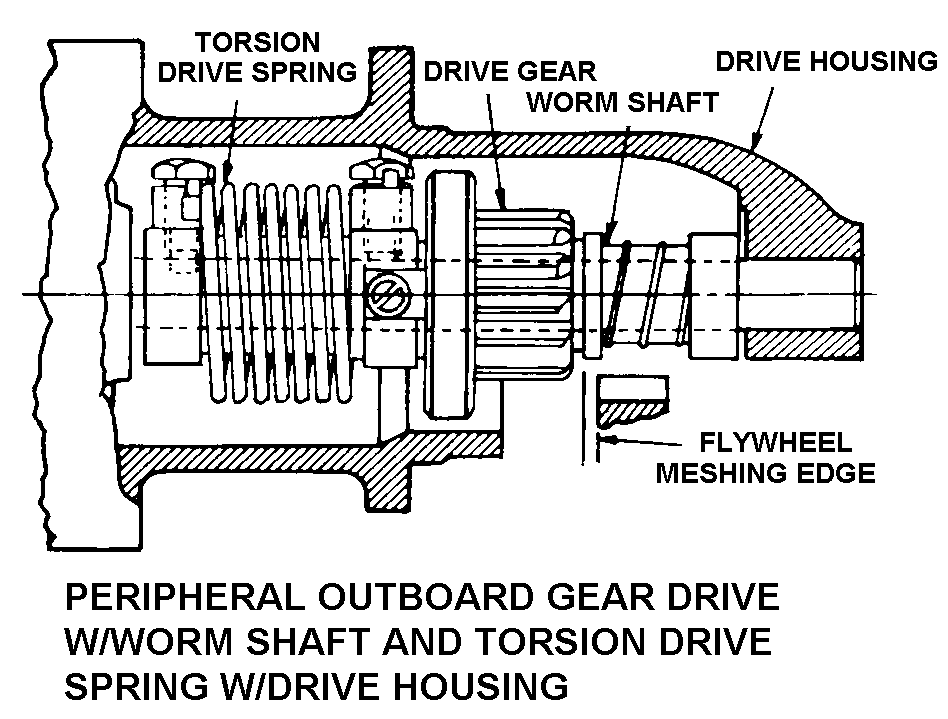

| ENGAGING MECHANISM STYLE | 2 PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT AND TORSION DRIVE SPRING W/DRIVE HOUSING |
| ENGAGING MECHANISM OPENING ANGULAR DEVIATION IN DEG | 240.0 |
| MOUNTING FLANGE SHAPE STYLE | 1 TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 2.875 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 60.0 |
| VOLTAGE IN VOLTS | 12.0 |
| LOCK TEST CURRENT RATING IN AMPS | 670.0 |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD |
| MANUFACTURERS CODE | 16764 |
| DESIGN CONTROL REFERENCE | 412 |
Restrictions/Controls & Freight Information | NSN 2920-00-230-1769
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
