NSN 2920-00-147-8726 C3NF11001F, C6NF11000A, D0NN11000B
Product Details | ELECTRICAL ENGINE STARTER
2920-00-147-8726 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: C3NF11001F, C6NF11000A, D0NN11000B, D7NN11000B, D7NN-11000-B, D8NN11000CB, D8NN11000CE, DINN11000B, 16608, 54257610, 542576-10, 2920-00-147-8726, 00-147-8726, 2920001478726, 001478726
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 22 SEP 1971 | 00-147-8726 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
Drawings & Photos | NSN 2920-00-147-8726
Demand History | NSN 2920-00-147-8726
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-147-8726 | 2010-01-07 | 3 | DIBBS |
Cross Reference | NSN 2920-00-147-8726
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16608 | 73321 | FORD MOTOR CO OF CANADA LTD |
| 542576-10 | 63632 | DELPHI AUTOMOTIVE SYSTEMS, LLC |
| C3NF11001F | 90927 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| C6NF11000A | 00501 | NEW HOLLAND N.V.NC. |
| C6NF11000A | 15667 | CASE J I CO |
| D0NN11000B | 00501 | NEW HOLLAND N.V.NC. |
| D7NN-11000-B | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| D7NN-11000-B | 57526 | FORD MOTOR CO |
| D7NN11000B | 00501 | NEW HOLLAND N.V.NC. |
| D8NN11000CB | 00501 | NEW HOLLAND N.V.NC. |
| D8NN11000CE | 00501 | NEW HOLLAND N.V.NC. |
| DINN11000B | 00501 | NEW HOLLAND N.V.NC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-147-8726
Related Products | NSN 2920-00-147-8726
Technical Data | NSN 2920-00-147-8726
| Characteristic | Specifications |
|---|---|

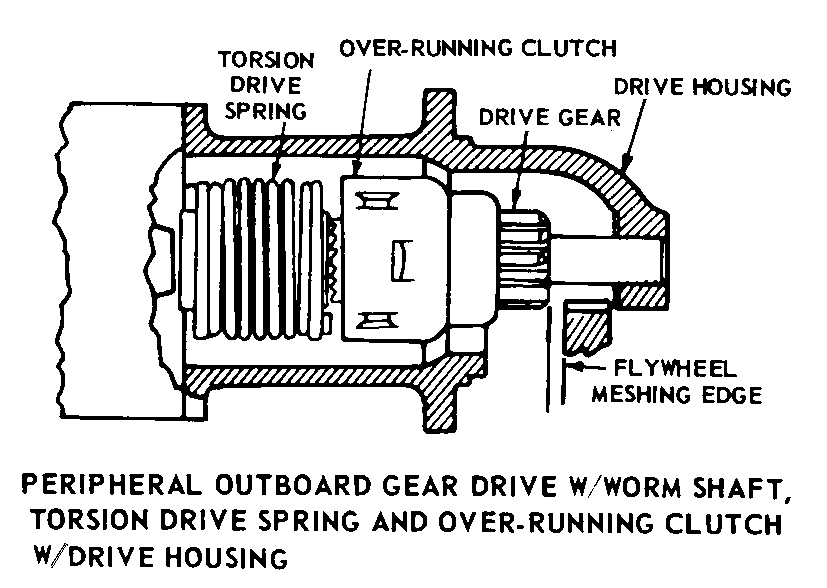

| ENGAGING MECHANISM STYLE | 3 PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, TORSION DRIVE SPRING AND OVER-RUNNING CLUTCH W/DRIVE HOUSING |
| ENGAGING MECHANISM OPENING ANGULAR DEVIATION IN DEG | ANY ACCEPTABLE |
| MOUNTING FLANGE SHAPE STYLE | 2 TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.812 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | ANY ACCEPTABLE |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 270.0 |
| VOLTAGE IN VOLTS | 12.0 |
| LOCK TEST CURRENT RATING IN AMPS | NOT RATED |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 6 THREADED STUD |
Restrictions/Controls & Freight Information | NSN 2920-00-147-8726
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-147-8726
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
