NSN 2920-00-127-4518 C5JZ11001A, CA45D2418, CA45D24-18
Product Details | ELECTRICAL ENGINE STARTER
2920-00-127-4518 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: C5JZ11001A, CA45D2418, CA45D24-18, 2920-00-127-4518, 00-127-4518, 2920001274518, 001274518
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 29 DEC 1972 | 00-127-4518 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
Drawings & Photos | NSN 2920-00-127-4518
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-127-4518
Technical Data | NSN 2920-00-127-4518
| Characteristic | Specifications |
|---|---|

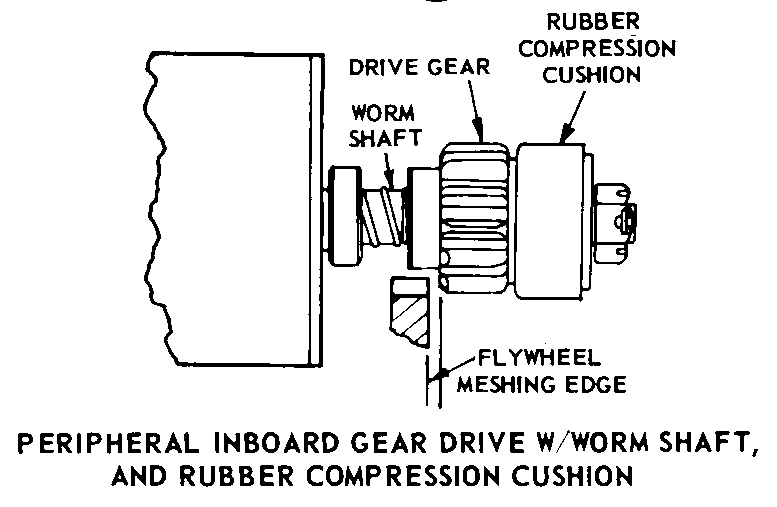

| ENGAGING MECHANISM STYLE | 8 PERIPHERAL INBOARD GEAR DRIVE W/WORM SHAFT, AND RUBBER COMPRESSION CUSHION |
| MOUNTING FLANGE SHAPE STYLE | 1 TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.438 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 3.000 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 90.0 |
| VOLTAGE IN VOLTS | 24.0 |
| LOCK TEST CURRENT RATING IN AMPS | NOT RATED |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 3 THREADED STUD |
Restrictions/Controls & Freight Information | NSN 2920-00-127-4518
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-127-4518
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
