NSN 2840-00-959-4486 525053, 00-959-4486, 009594486
Product Details | AIRCRAFT GAS TURBINE ENGINE HEAT SHIELD
2840-00-959-4486 A rigid item, fabricated from a heat resistant allow, with or without insulation material added. Designed to protect parts, areas or systems of an ENGINE, GAS TURBINE, AIRCRAFT from excessive heat damage. See also INSULATION BLANKET, THERMAL, AIRCRAFT GAS TURBINE ENGINE.
Part Alternates: 525053, 2840-00-959-4486, 00-959-4486, 2840009594486, 009594486
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 23 MAY 1966 | 00-959-4486 | 50356 ( SHIELD, HEAT, AIRCRAFT GAS TURBINE ENGINE ) |

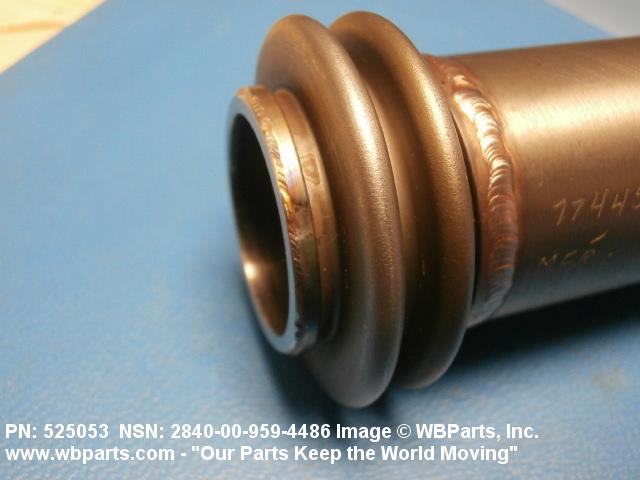

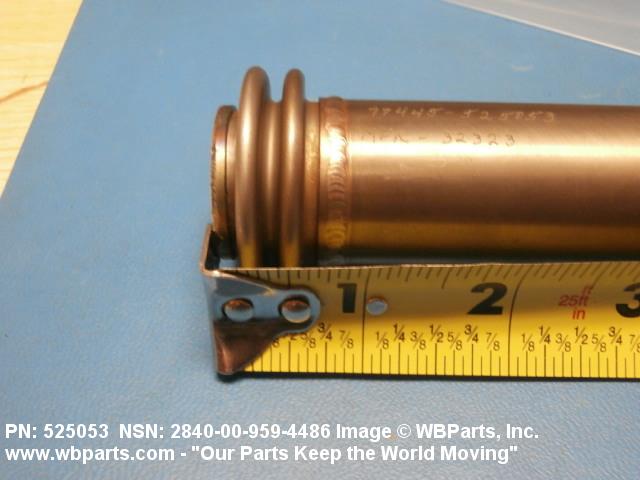

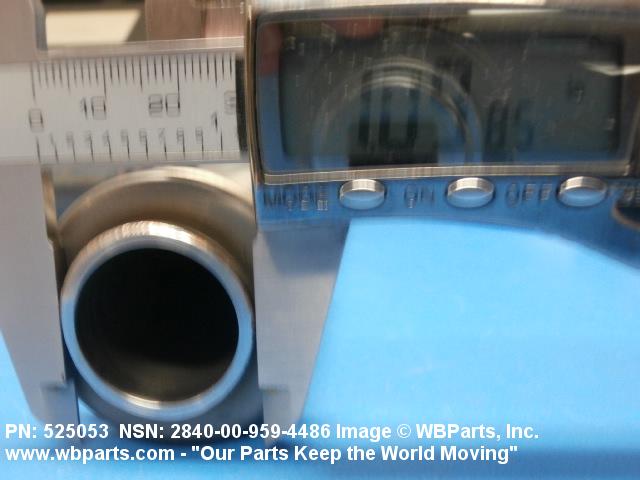

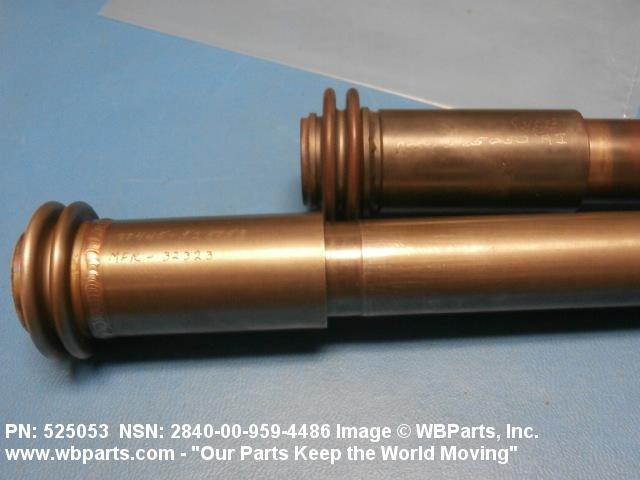

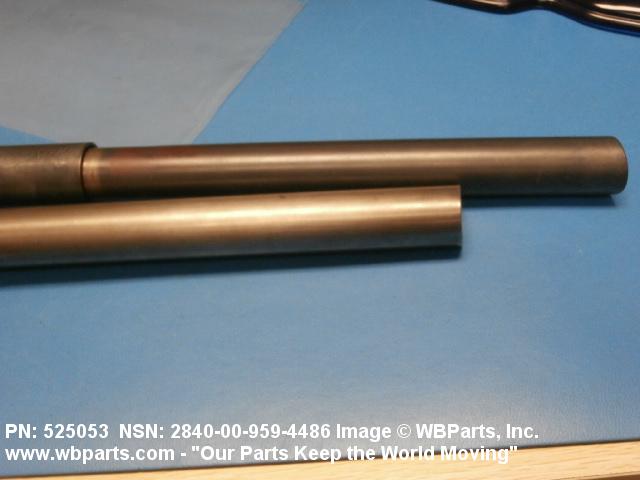

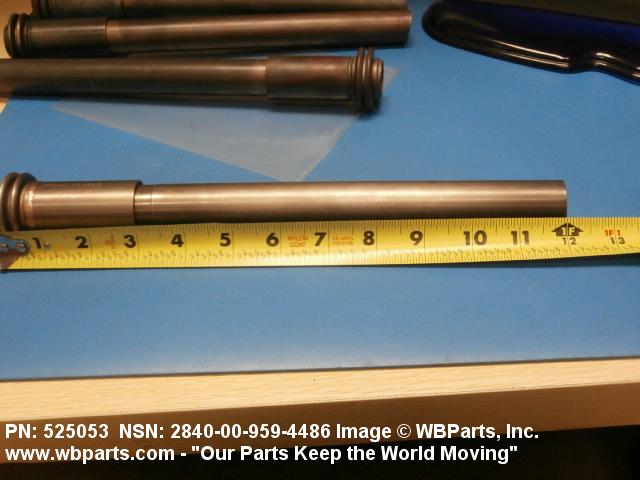

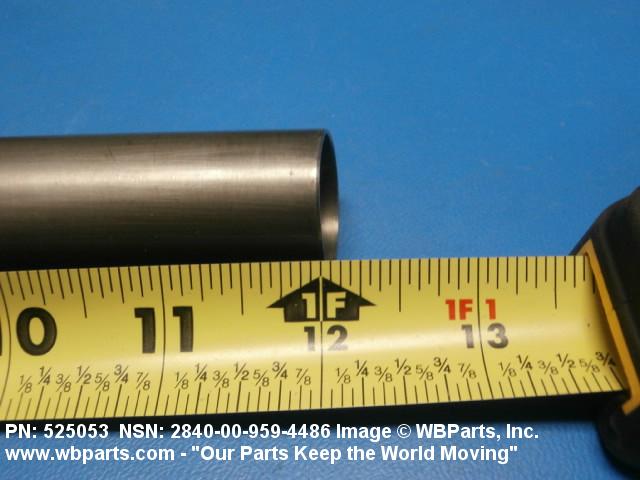

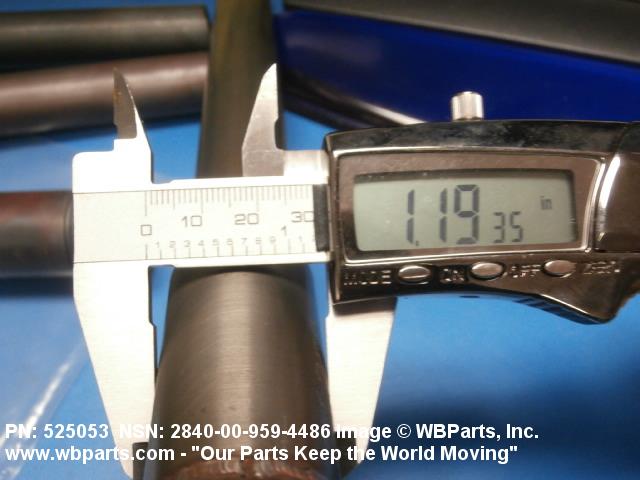

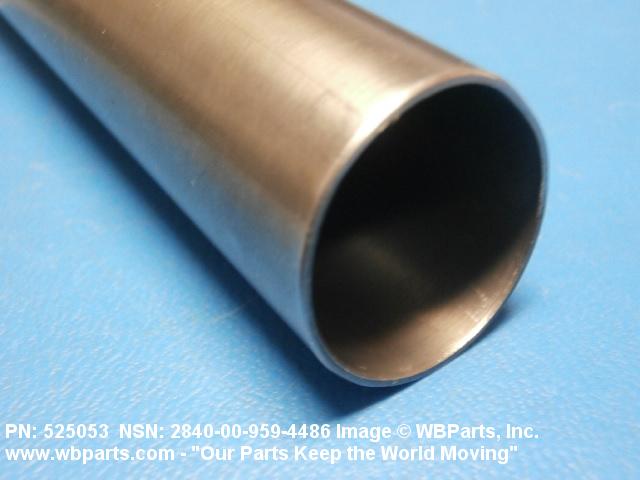

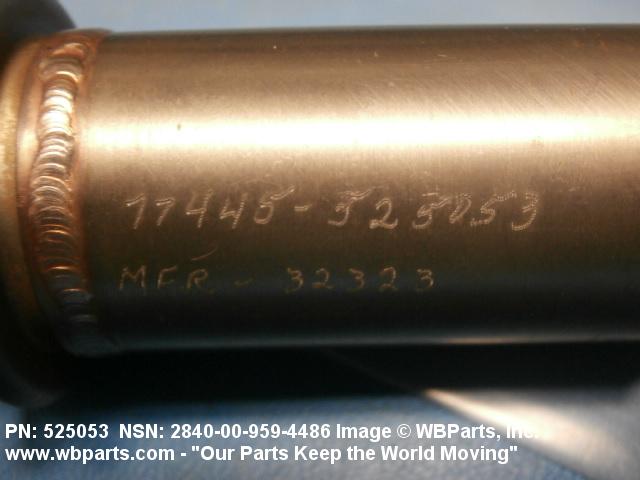

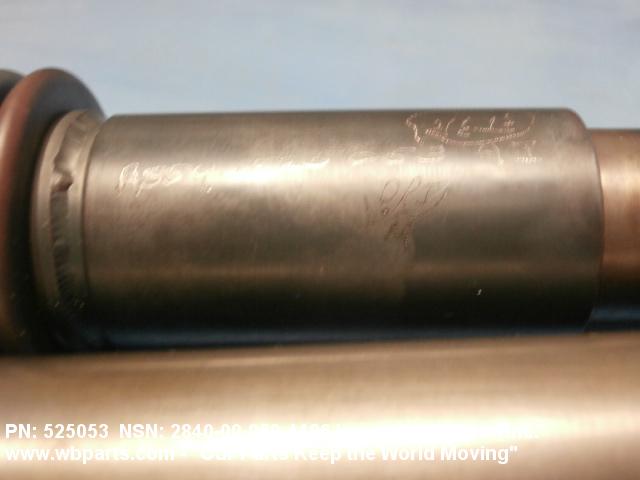

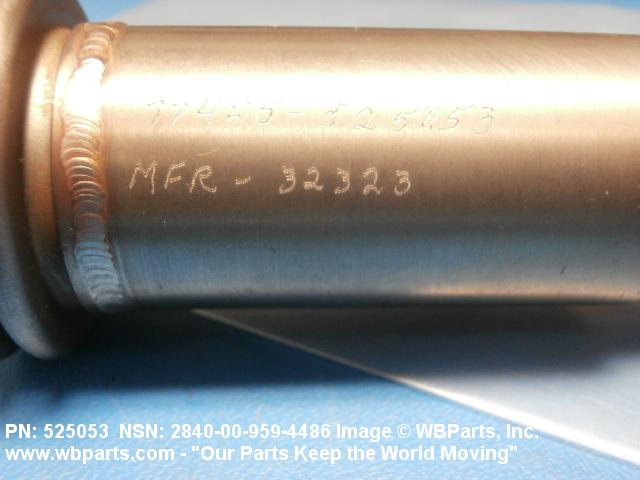

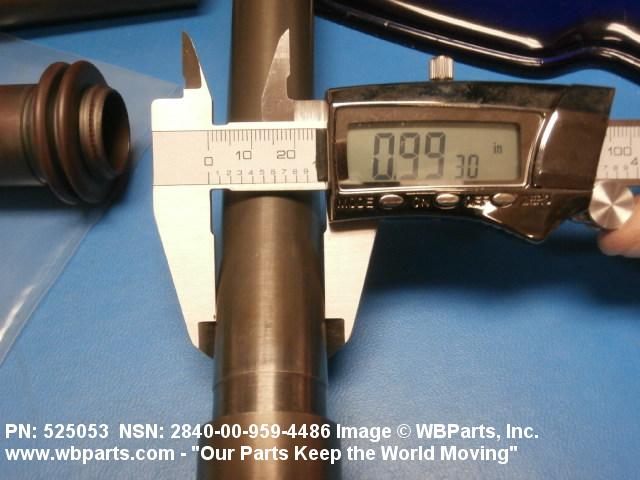

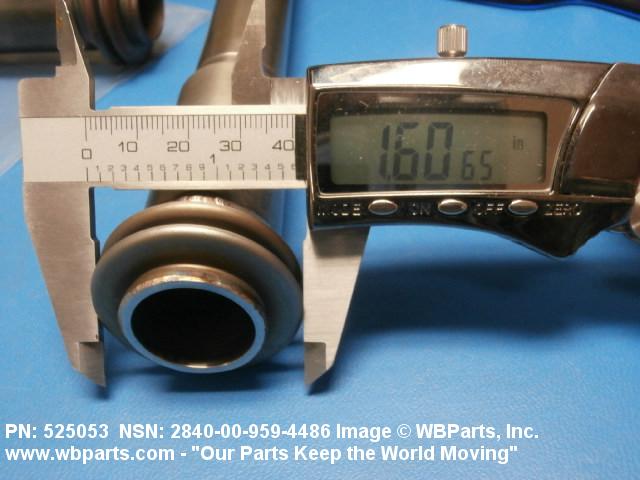

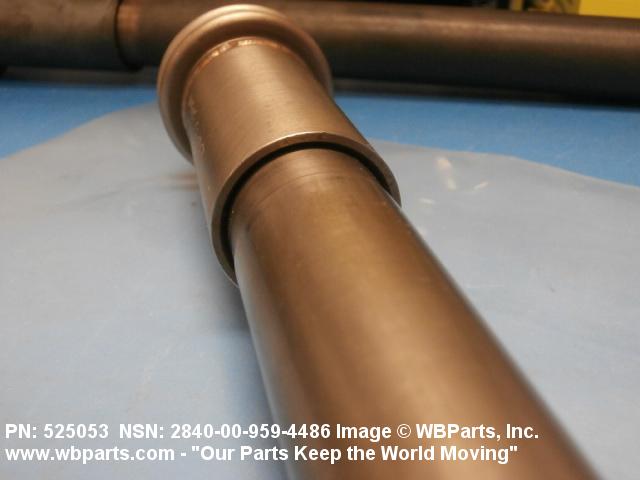

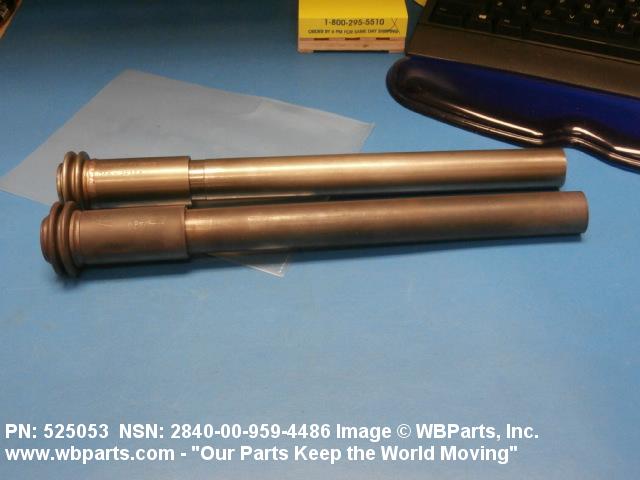

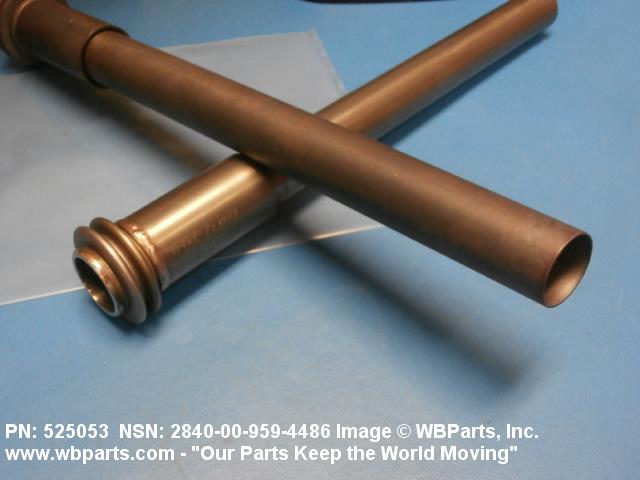

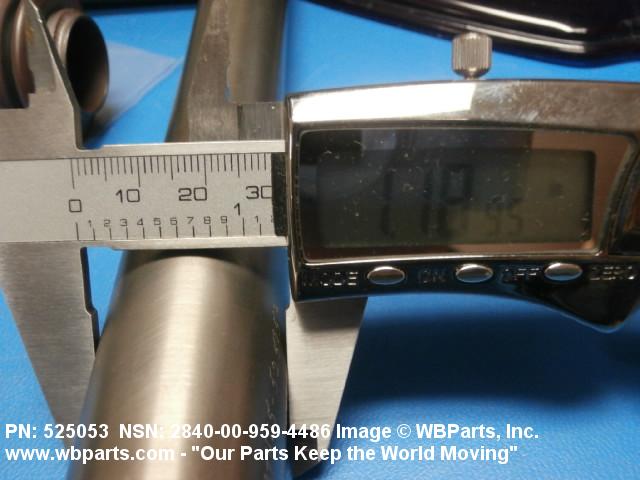

Drawings & Photos | NSN 2840-00-959-4486
Demand History | NSN 2840-00-959-4486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 525053 | 2020-08-233 | 16 | DIBBS |
| 525053 | 2019-03-64 | 16 | DIBBS |
| 2840-00-959-4486 | 2015-12-342 | 38 | United States |
| 2840-00-959-4486 | 2015-10-292 | 38 | DIBBS |
| 2840-00-959-4486 | 2015-10-279 | 38 | DIBBS |
| 2840-00-959-4486 | 2015-07-211 | 2 | DIBBS |
| 2840-00-959-4486 | 2015-04-97 | 20 | DIBBS |
| 2840-00-959-4486 | 2015-01-26 | 22 | DIBBS |
| 2840-00-959-4486 | 2015-01-13 | 22 | DIBBS |
| 2840-00-959-4486 | 2014-11-321 | 7 | DIBBS |
| 2840-00-959-4486 | 2014-11-308 | 7 | DIBBS |
| 2840-00-959-4486 | 2014-08-219 | 3 | DIBBS |
| 2840-00-959-4486 | 2014-07-211 | 7 | DIBBS |
| 2840-00-959-4486 | 2014-07-182 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2840-00-959-4486
Related Products | NSN 2840-00-959-4486
Technical Data | NSN 2840-00-959-4486
| Characteristic | Specifications |
|---|---|
| ENGINE SECTION LOCATION | TURBINE |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| END ITEM IDENTIFICATION | TF-33 AIRCRAFT ENGINE |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 525053 |
Restrictions/Controls & Freight Information | NSN 2840-00-959-4486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-00-959-4486
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RV | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS TF-33 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
