NSN 2840-00-858-0115 5007T31P01, 5007T31P02, 00-858-0115
Product Details | AIRCRAFT GAS TURBINE ENGINE COMPRESSOR BLADE
2840-00-858-0115 An item mounted on a DISK, COMPRESSOR, AIRCRAFT GAS TURBINE ENGINE. It is designed to create the flow of air in the compressor section of an ENGINE, GAS TURBINE, AIRCRAFT.
Part Alternates: 5007T31P01, 5007T31P02, 2840-00-858-0115, 00-858-0115, 2840008580115, 008580115
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 04 OCT 1967 | 00-858-0115 | 50531 ( BLADE, COMPRESSOR, AIRCRAFT GAS TURBINE ENGINE ) |

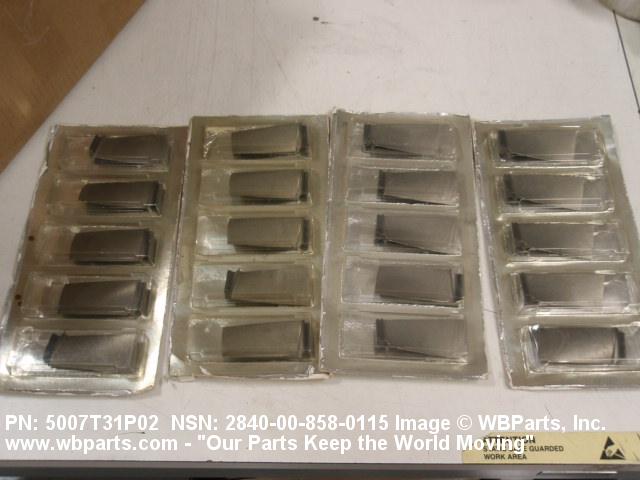

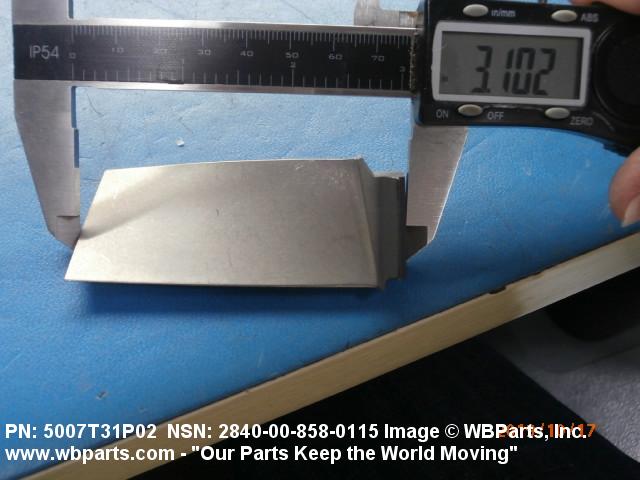

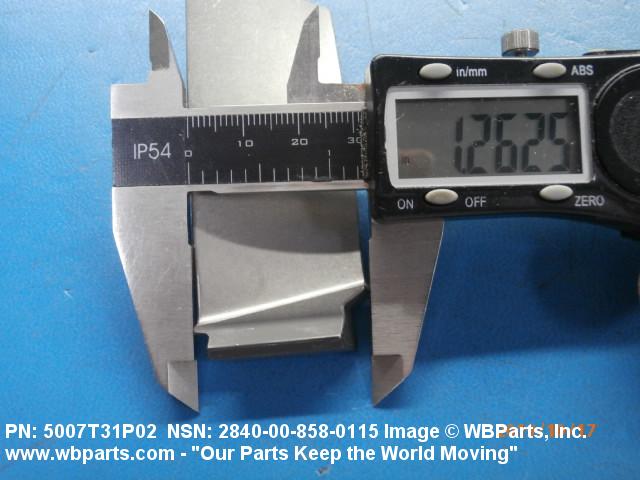

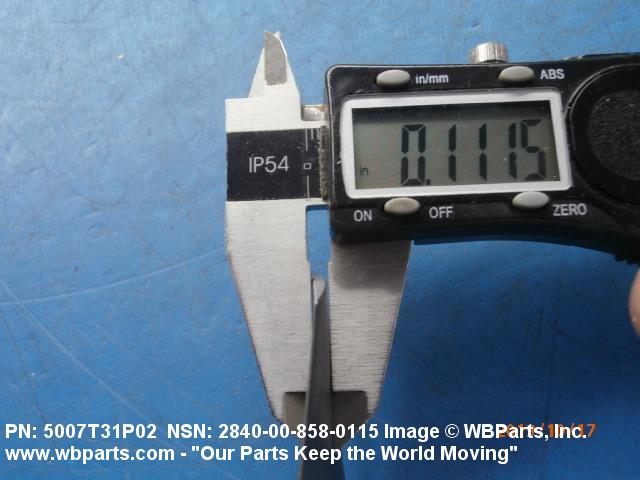

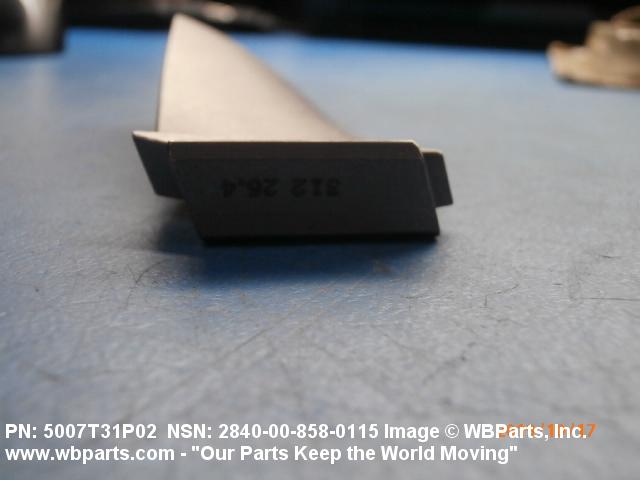

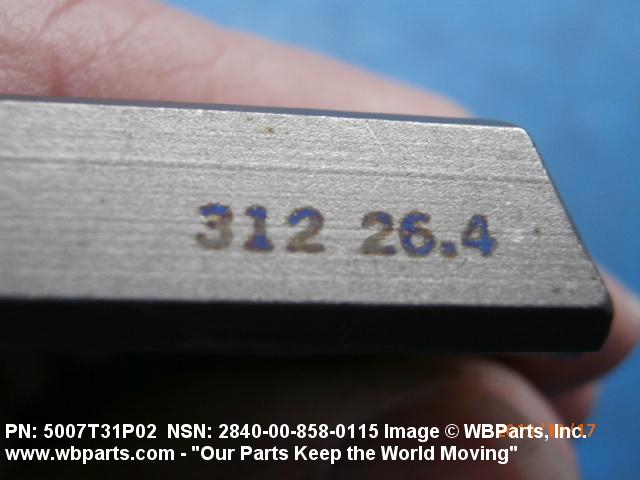

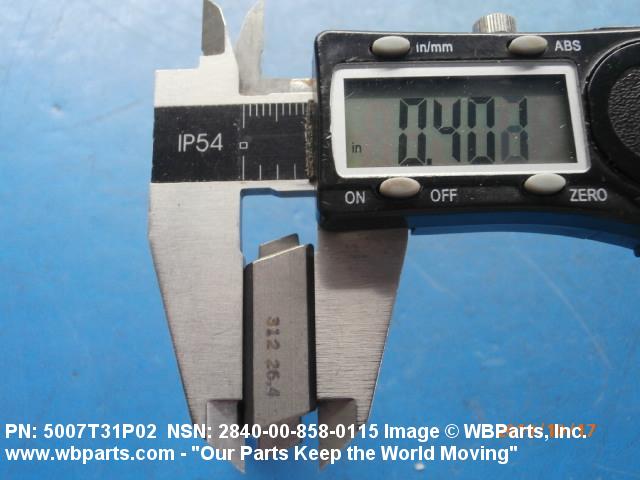

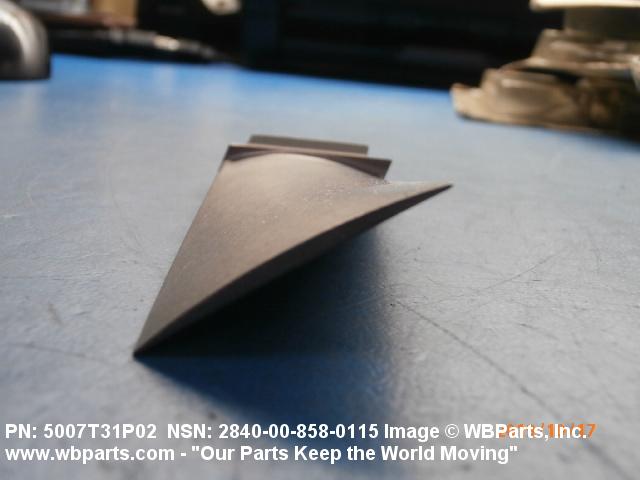

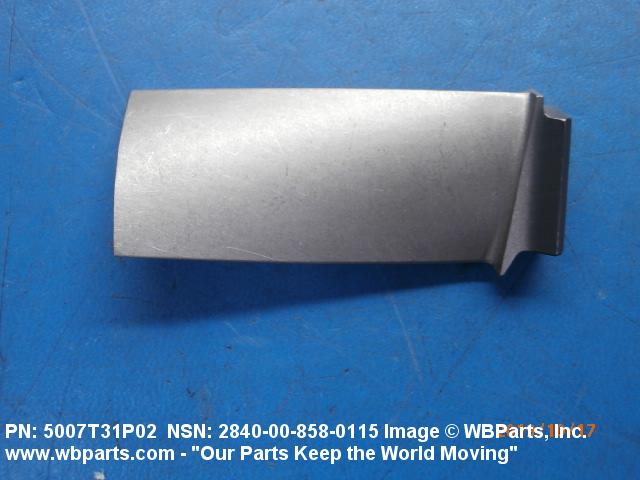

Drawings & Photos | NSN 2840-00-858-0115
Demand History | NSN 2840-00-858-0115
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5007T31P02 | 2021-04-98 | 132 | DIBBS |
| 5007T31P02 | 2020-12-345 | 116 | DIBBS |
| 5007T31P02 | 2019-12-353 | 6 | Canada |
| 2840-00-858-0115 | 2019-09-268 | 20 | Canada |
| 2840-00-858-0115 | 2013-02-42 | 57 | DIBBS |
| 2840-00-858-0115 | 2009-05-128 | 20 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2840-00-858-0115
Related Products | NSN 2840-00-858-0115
Technical Data | NSN 2840-00-858-0115
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY BLADE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE BLADE |
| DESIGN TYPE | COMPRESSOR |
| ENGINE SECTION LOCATION | COMPRESSOR |
| STAGE NUMBER | 1 |
| OVERALL LENGTH | 1.371 INCHES MINIMUM AND 1.389 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 2840-00-858-0115
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | I | AIRCRAFT ENGINE EQUIPMENT AND PARTS |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114990 | BLADES BLAST/BLOWER WHEEL ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-00-858-0115
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | I | AIRCRAFT ENGINE EQUIPMENT AND PARTS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | FQ | TURBO PROPENGINES(T64) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | I | AIRCRAFT ENGINE EQUIPMENT AND PARTS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
