NSN 2840-00-782-4515 4000T20P03, 4000T20P04, 00-782-4515
Product Details | AIRCRAFT GAS TURBINE ENGINE METALLIC SEAL
2840-00-782-4515 A single or multi-piece item of metallic construction, specifically designed to form either a tight fuel or oil seal in an ENGINE, GAS TURBINE, AIRCRAFT.
Part Alternates: 4000T20P03, 4000T20P04, 2840-00-782-4515, 00-782-4515, 2840007824515, 007824515
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 21 APR 1972 | 00-782-4515 | 50597 ( SEAL, METALLIC, AIRCRAFT GAS TURBINE ENGINE ) |

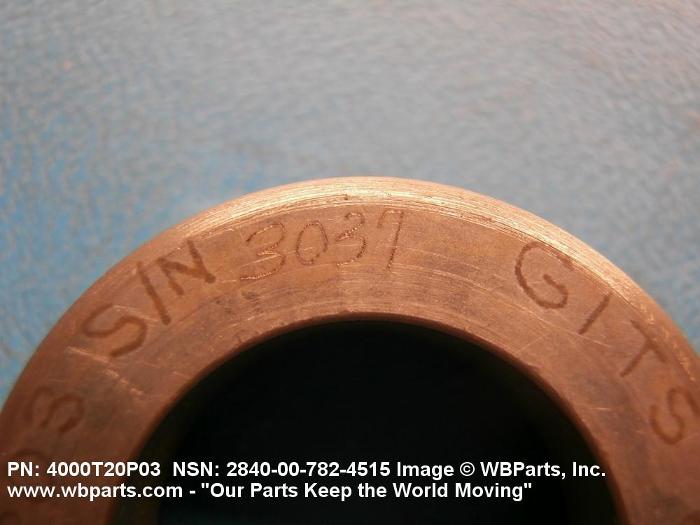

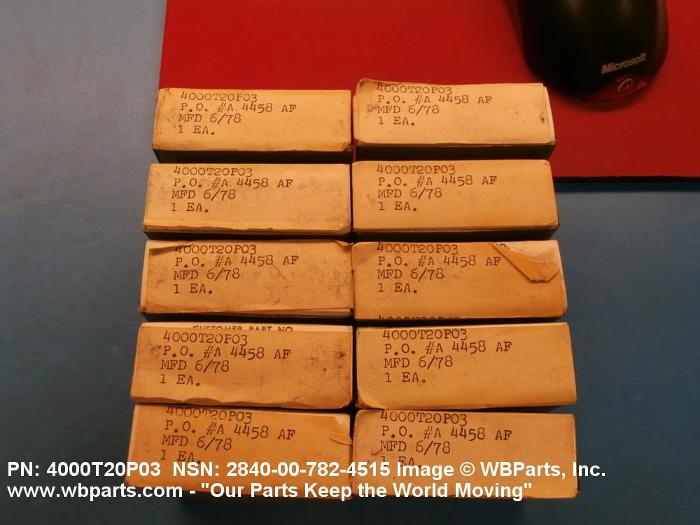

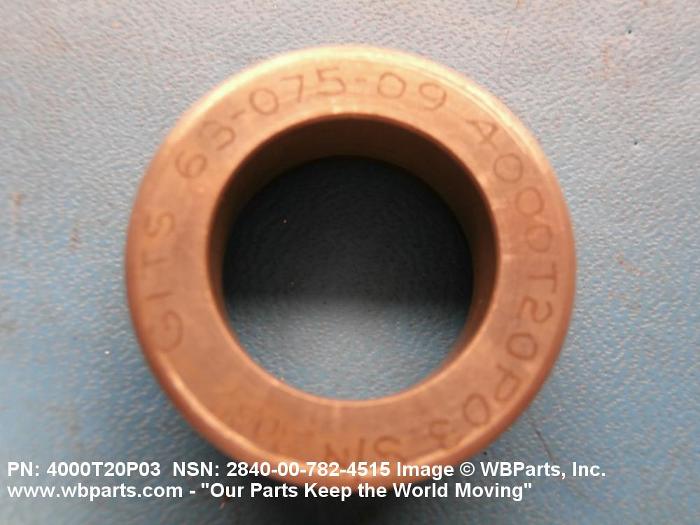

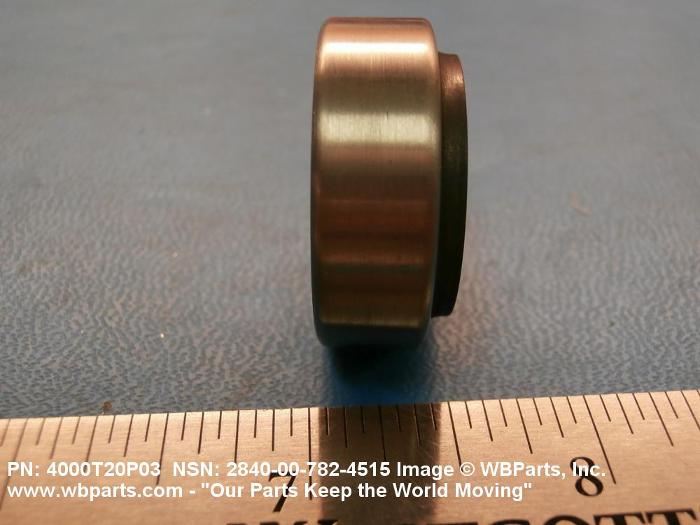

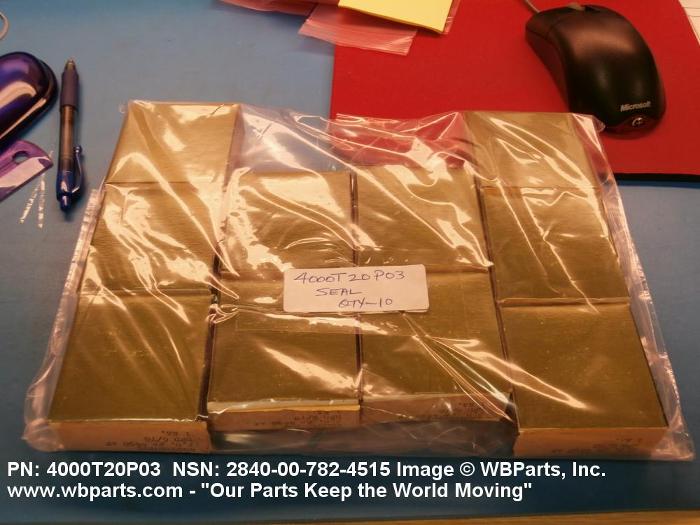

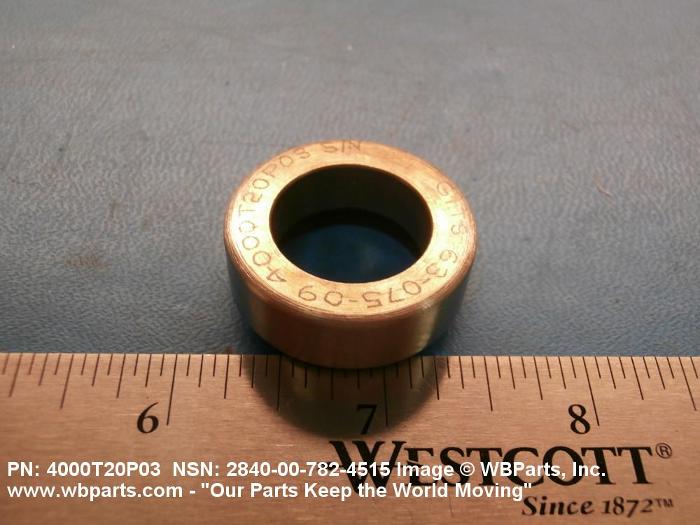

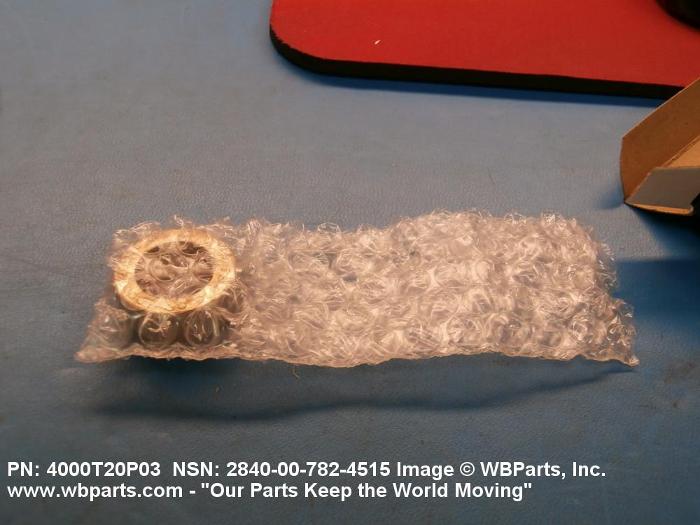

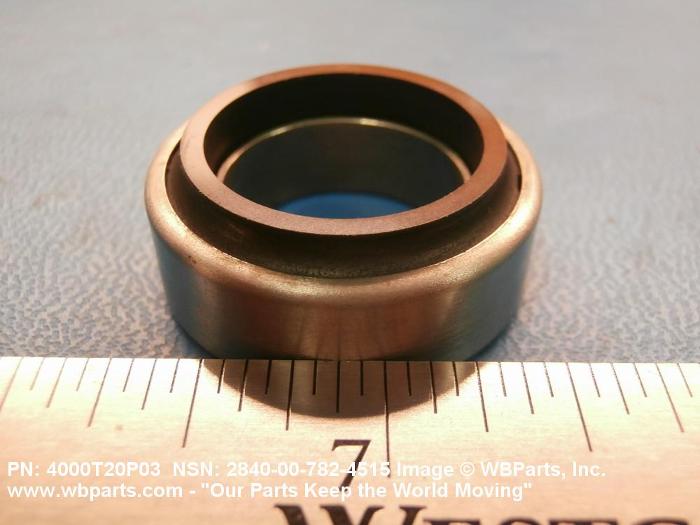

Drawings & Photos | NSN 2840-00-782-4515
Demand History | NSN 2840-00-782-4515
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2840-00-782-4515 | 2021-01-14 | 4 | IN |
| 2840-00-782-4515 | 2020-06-182 | 2 | Turkey |
| 4000T20P03 | 2013-01-23 | 10 | Indonesia |
| 4000T20P03 | 2012-11-326 | 20 | Indonesia |
| 4000T20P03 | 2012-11-320 | 10 | Indonesia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2840-00-782-4515
Technical Data | NSN 2840-00-782-4515
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| OVERALL LENGTH | 0.478 INCHES NOMINAL |
| SPECIAL FEATURES | T.O. 2J85-54; GOES ON THE ACCESSORY GEARBOX; RUBBING SEAL X-AXIS |
| CRITICALITY CODE JUSTIFICATION | MATT AND FEAT AND ABHP |
Restrictions/Controls & Freight Information | NSN 2840-00-782-4515
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB8 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
