Product Details | SPECIAL METALLIC SEAL

2840-01-319-8986 A single or multi-piece item of metallic construction, specifically designed to form either a tight fuel or oil seal in an ENGINE, GAS TURBINE, AIRCRAFT.

Part Alternates: 4088T25P17, 2840-01-319-8986, 01-319-8986, 2840013198986, 013198986

Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components

Supply Group (FSG) NSN Assign. NIIN
28 16 MAY 1990 01-319-8986

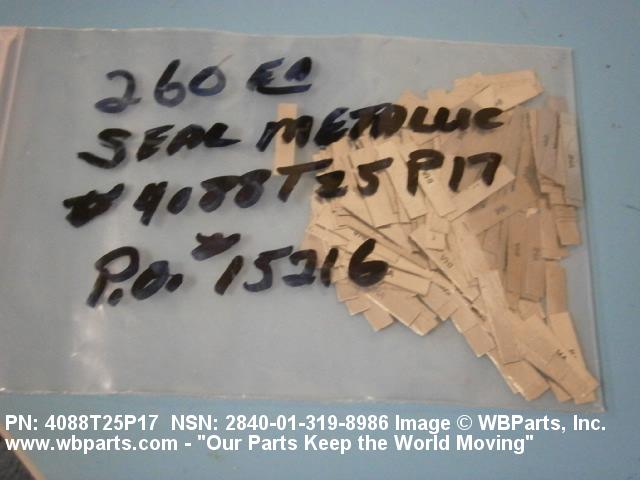

Drawings & Photos | NSN 2840-01-319-8986


Demand History | NSN 2840-01-319-8986

Part Number Request Date QTY Origin
2840-01-319-8986 2016-05-123 5001 DIBBS
2840-01-319-8986 2016-02-60 347 DIBBS
2840-01-319-8986 2015-12-348 575 DIBBS
2840-01-319-8986 2015-08-216 504 DIBBS
2840-01-319-8986 2015-07-195 21 MANUAL
2840-01-319-8986 2015-07-195 42 MANUAL
2840-01-319-8986 2015-07-195 21 MANUAL
2840-01-319-8986 2015-07-191 210 MANUAL
2840-01-319-8986 2015-06-180 417 DIBBS
2840-01-319-8986 2014-04-99 209 DIBBS
2840-01-319-8986 2012-09-257 387 DIBBS
2840-01-319-8986 2012-09-249 387 DIBBS
2840-01-319-8986 2012-02-55 378 DIBBS
2840-01-319-8986 2011-12-355 0 United States
2840-01-319-8986 2011-11-333 260 DIBBS
2840-01-319-8986 2009-12-341 300 DIBBS
2840-01-319-8986 2009-11-314 51 DIBBS
2840-01-319-8986 2006-11-331 8 Turkey

Cross Reference | NSN 2840-01-319-8986

Part Number Cage Code Manufacturer
4088T25P17 99207 GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2840-01-319-8986

Technical Data | NSN 2840-01-319-8986

Characteristic Specifications
END ITEM IDENTIFICATION T700-GE-701C ENGINE
GENERAL CHARACTERISTICS ITEM DESCRIPTION FLUORESCENT PENETRANT INSPECT PER P3TF2 CL-A; PER P23TF3-7A2 ELECT ROCHEMICAL; LG 0.900 IN MIN 0.910 INMAX,WIDTH 0.185 IN MIN,0.195 IN MAX

Restrictions/Controls & Freight Information | NSN 2840-01-319-8986

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 011790 AIRCRAFT PARTS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code CT U.S. Army Aviation and Missile Command (AIR)
Redstone Arsenal, AL 35898-5230
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2840-01-319-8986

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic CodeB Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous GroupBNUH-60L/AH-64A Engine (T701C)
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
