Product Details | INTERNAL COMBUSTION ENGINE PISTON

2815-01-247-3970 00020328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components

Part Alternates: 2464857, 697689, 2815-01-247-3970, 01-247-3970, 2815012473970, 012473970

Engines, Turbines, and Components | Diesel Engines and Components

Supply Group (FSG) NSN Assign. NIIN
28 06 JAN 1987 01-247-3970

Drawings & Photos | NSN 2815-01-247-3970


Cross Reference | NSN 2815-01-247-3970

Part Number Cage Code Manufacturer
2464857 23862 MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
697689 23862 MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
697689 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2815-01-247-3970

Technical Data | NSN 2815-01-247-3970

Characteristic Specifications
SURFACE FINISH FINISHED
FINISHED SIZE DESIGNATION OVERSIZE
OVERSIZE 0.040 INCHES NOMINAL

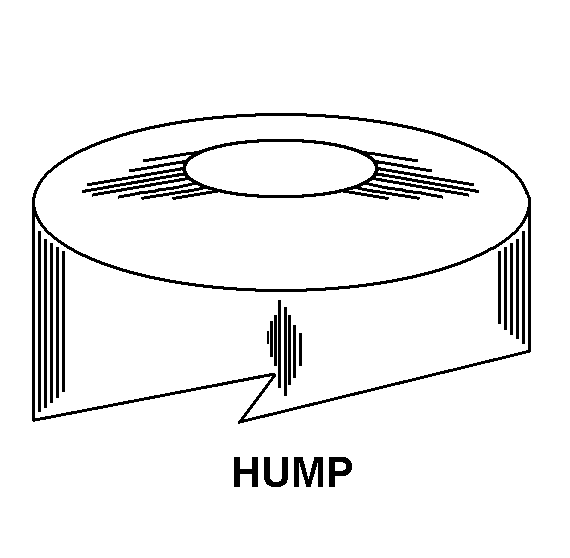

HEAD STYLE B1 HUMP
PIN INCLUDED
RING INCLUDED
SPECIAL FEATURES 1971 TRUCK,MODEL CG5600,GENERAL MOTORS CORP

Restrictions/Controls & Freight Information | NSN 2815-01-247-3970

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 120800 ENGINES, INTERNAL COMBUSTION, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2815-01-247-3970

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
