Product Details | INTERNAL COMBUSTION ENGINE PISTON
2815-01-073-1436 00020328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 280458, 68301, 998953, 2815-01-073-1436, 01-073-1436, 2815010731436, 010731436
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 10 MAR 1979 | 01-073-1436 | 16509 ( PISTON, INTERNAL COMBUSTION ENGINE ) |

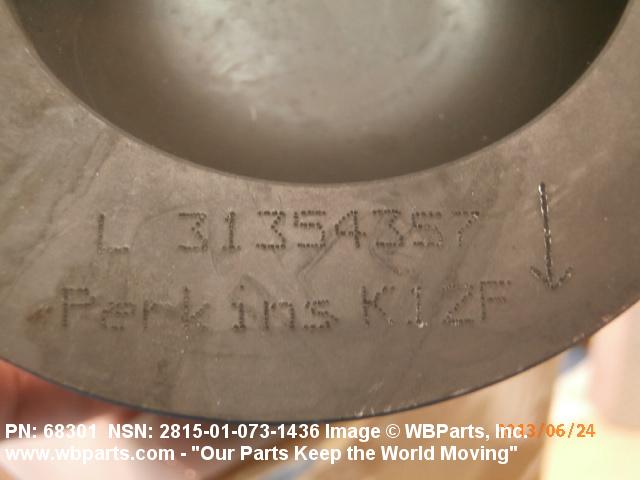

Drawings & Photos | NSN 2815-01-073-1436
Demand History | NSN 2815-01-073-1436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 280458 | 2022-11-334 | 8 | DIBBS |
| 68301 | 2022-11-334 | 8 | DIBBS |
| 280458 | 2020-06-160 | 10 | DIBBS |
| 68301 | 2020-06-160 | 10 | DIBBS |
| 2815-01-073-1436 | 2014-08-230 | 8 | Saudi Arabia |
| 2815-01-073-1436 | 2013-05-136 | 4 | Saudi Arabia |
| 2815-01-073-1436 | 2009-03-83 | 35 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-01-073-1436
Related Products | NSN 2815-01-073-1436
Technical Data | NSN 2815-01-073-1436
| Characteristic | Specifications |
|---|---|

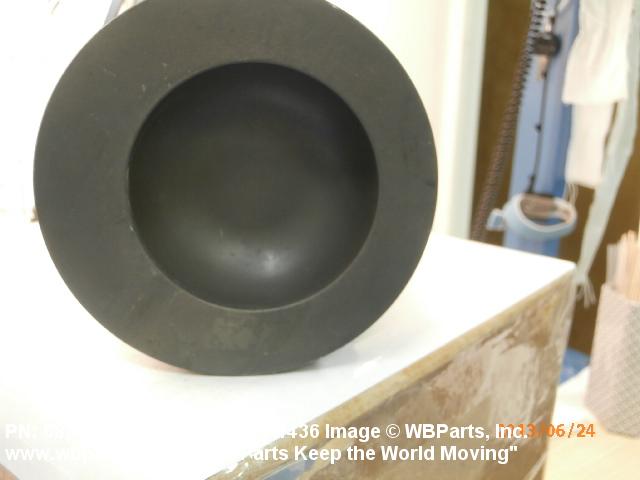

| MATERIAL | ALUMINUM ALLOY |

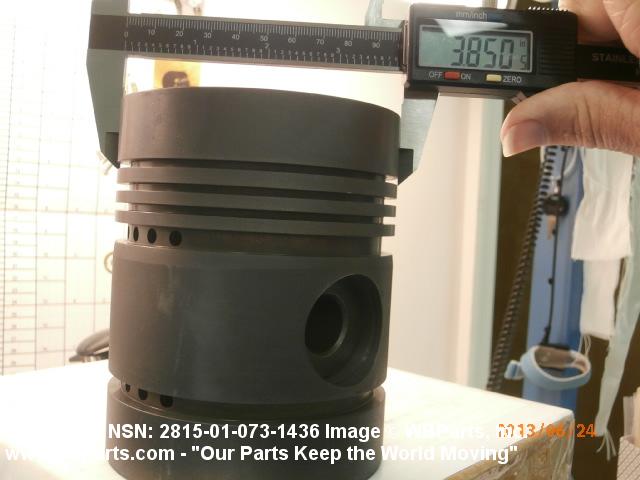

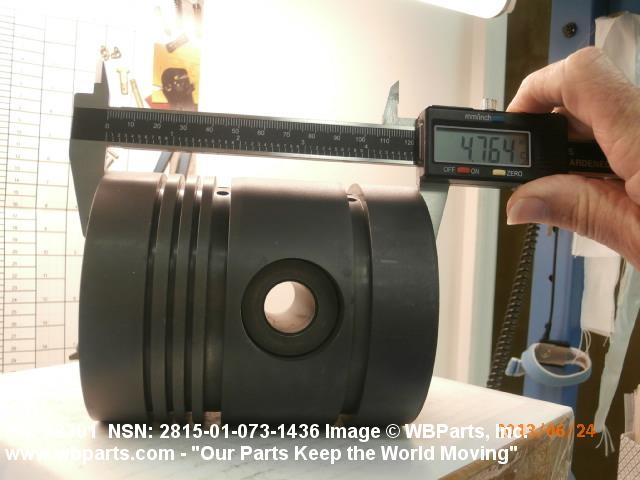

| DIAMETER | 3.871 INCHES NOMINAL |
| OVERALL HEIGHT | 4.768 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | STANDARD |
| WEIGHT | ANY ACCEPTABLE |
| HEAD STYLE | B3 DISH |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | NOT INCLUDED |

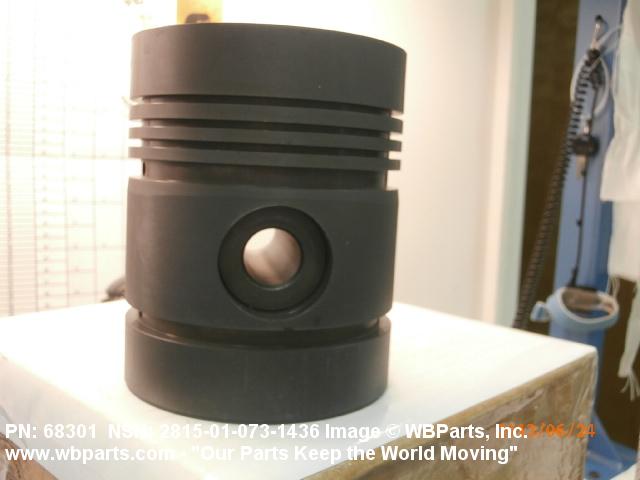

| RING GROOVE QUANTITY | 5 |
| RING GROOVE POSITION | NUMBER 1,NUMBER 2,NUMBER 3,NUMBER 4,AND NUMBER 5 |

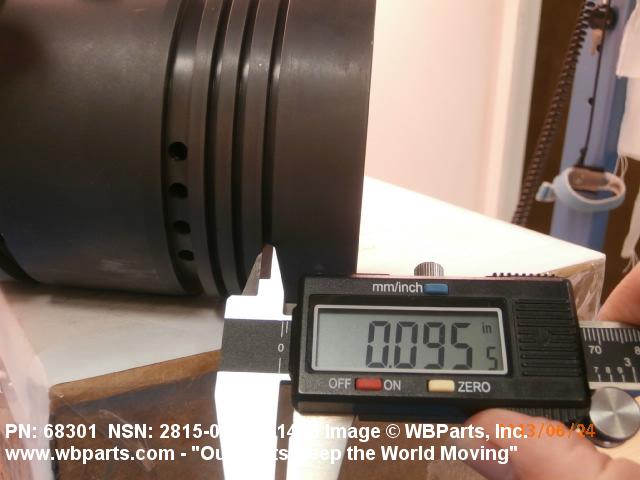

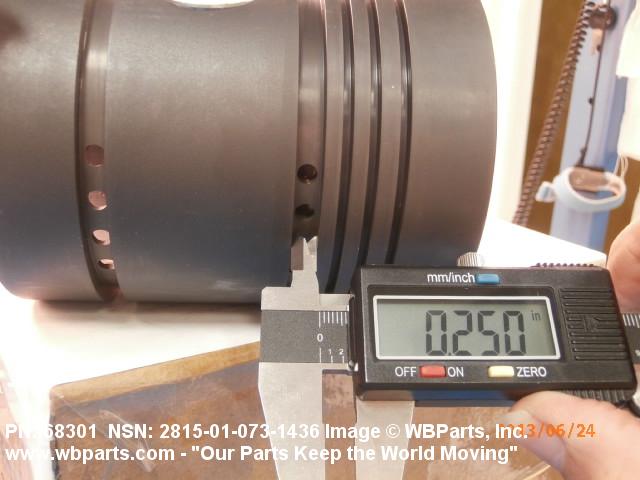

| RING GROOVE WIDTH | 0.0950 INCHES NOMINAL AND 0.0950 INCHES NOMINAL AND 0.0950 INCHES NOMINAL AND 0.2530 INCHES NOMINAL AND 0.2530 INCHES NOMINAL |
| RING GROOVE DIAMETER | 3.520 INCHES NOMINAL AND 3.520 INCHES NOMINAL AND 3.520 INCHES NOMINAL AND 3.513 INCHES NOMINAL AND 3.513 INCHES NOMINAL |
| OIL PASSAGE TYPE | HOLE |
| RING GROOVE POSITION BELOW PISTON PIN | NUMBER 5 RING GROOVE LOCATED BELOW PISTON PIN HOLES |
| CARBON GROOVE | NOT INCLUDED |
| OIL GROOVE | NOT INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 3.767 INCHES NOMINAL |
| PIN HOLE BUSHING | NOT INCLUDED |

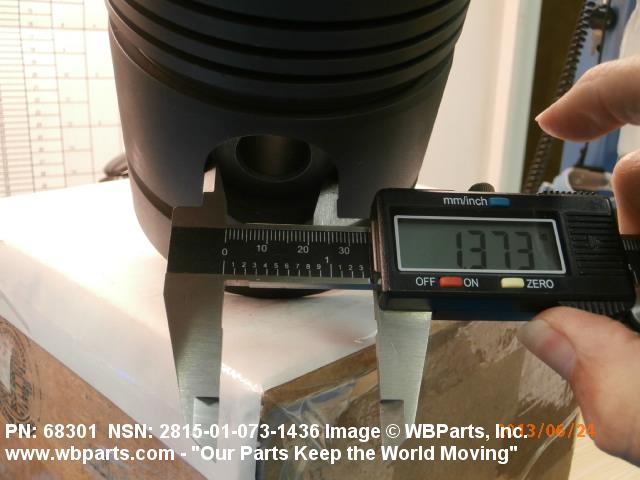

| PINHOLE DIAMETER | 1.3750 INCHES NOMINAL |
| DISTANCE BETWEEN PIN BOSSES | 1.575 INCHES NOMINAL |

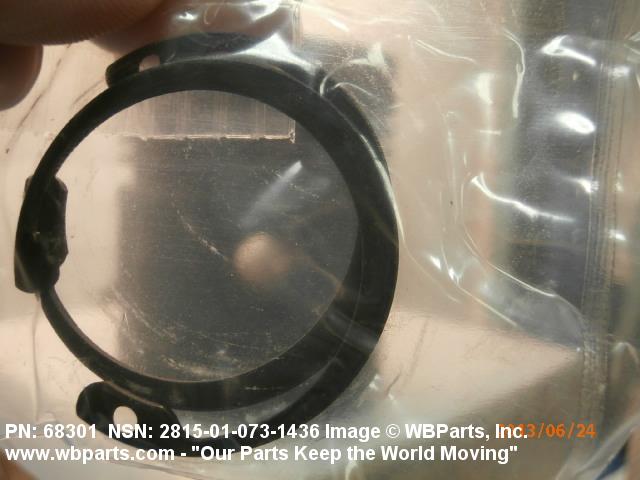

| RETAINING RING GROOVE | INCLUDED |

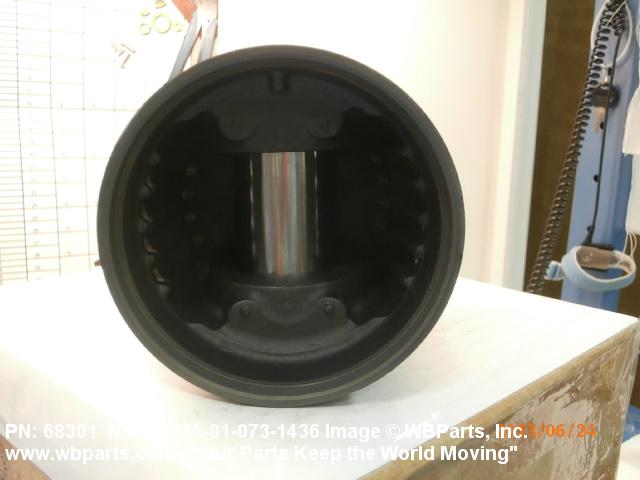

| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | NOT INCLUDED |
