NSN 2815-00-074-7140 BM43160, 00-074-7140, 000747140
Product Details | INTERNAL COMBUSTION ENGINE PISTON
2815-00-074-7140 00020328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: BM43160, 2815-00-074-7140, 00-074-7140, 2815000747140, 000747140
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 27 JUL 1967 | 00-074-7140 | 16509 ( PISTON, INTERNAL COMBUSTION ENGINE ) |
Drawings & Photos | NSN 2815-00-074-7140
Cross Reference | NSN 2815-00-074-7140
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BM43160 | 15434 | CUMMINS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-00-074-7140
Related Products | NSN 2815-00-074-7140
Technical Data | NSN 2815-00-074-7140
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| DIAMETER | 4.875 INCHES NOMINAL |
| OVERALL HEIGHT | 6.250 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | STANDARD |
| SURFACE TREATMENT | BLACK OXIDE |
| WEIGHT | 154.0 OUNCES |

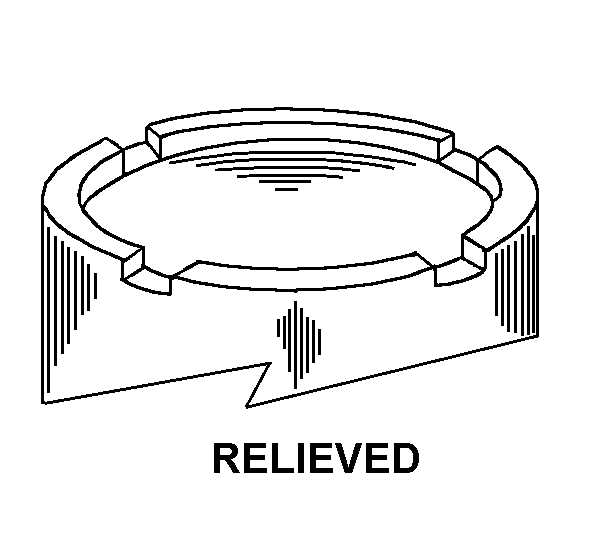

| HEAD STYLE | B9 RELIEVED |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | NOT INCLUDED |
| RING GROOVE QUANTITY | 5 |
| RING GROOVE POSITION | NUMBER 1,NUMBERS 2 AND 3,NUMBER 4,NUMBER 5 |
| RING GROOVE WIDTH | 0.1050 INCHES NOMINAL 0.1300 INCHES NOMINAL 0.1300 INCHES NOMINAL 0.1900 INCHES NOMINAL 0.2500 INCHES NOMINAL |
| RING GROOVE DIAMETER | 4.412 INCHES NOMINAL |
| OIL PASSAGE TYPE | HOLE |
| CARBON GROOVE | NOT INCLUDED |
| OIL GROOVE | INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 4.030 INCHES NOMINAL |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 2.0000 INCHES NOMINAL |
| DISTANCE BETWEEN PIN BOSSES | ANY ACCEPTABLE |
| RETAINING RING GROOVE | INCLUDED |
| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | INCLUDED |
Restrictions/Controls & Freight Information | NSN 2815-00-074-7140
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120800 | ENGINES, INTERNAL COMBUSTION, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-074-7140
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
