NSN 2805-00-847-2296 606492C1, 677541C1, 911776R2
Product Details | ENGINE POPPET VALVE TAPPET
2805-00-847-2296 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 606492C1, 677541C1, 911776R2, 911776R3, 2805-00-847-2296, 00-847-2296, 2805008472296, 008472296
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 30 DEC 1966 | 00-847-2296 | 22199 ( TAPPET, ENGINE POPPET VALVE ) |
Drawings & Photos | NSN 2805-00-847-2296
Demand History | NSN 2805-00-847-2296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2805-00-847-2296 | 2008-02-51 | 1 | United Kingdom |
Cross Reference | NSN 2805-00-847-2296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 606492C1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 677541C1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 911776R2 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 911776R3 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| 911776R3 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2805-00-847-2296
Related Products | NSN 2805-00-847-2296
Technical Data | NSN 2805-00-847-2296
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| MATERIAL AND LOCATION | STEEL OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |
| CASEHARDENED LOCATION | OVERALL |

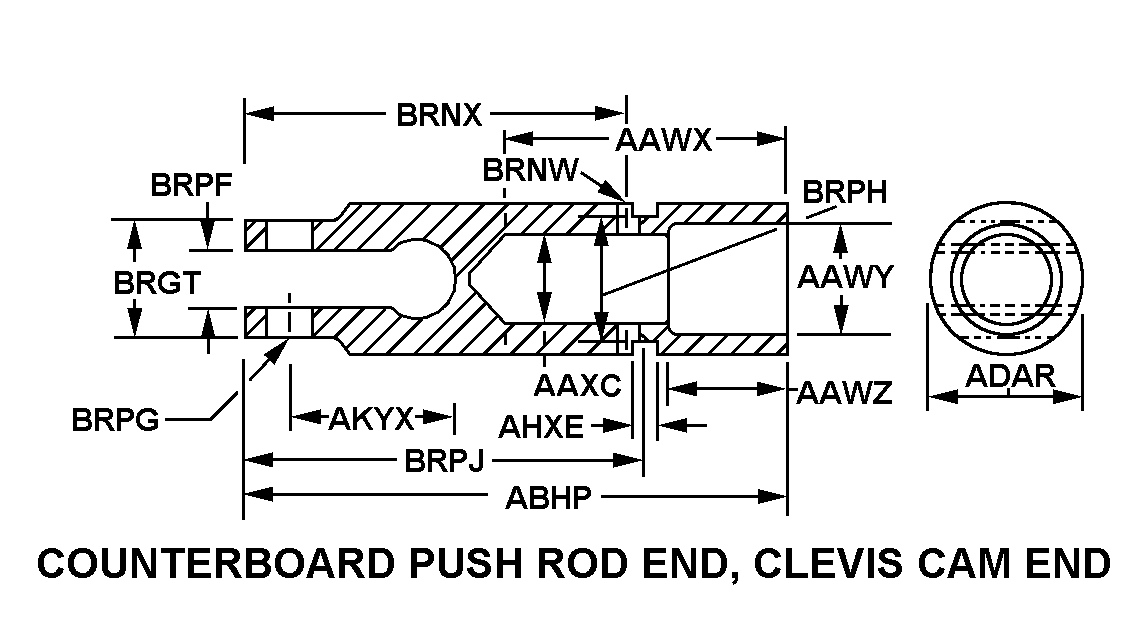

| STYLE DESIGNATOR | J8 COUNTERBORED PUSH ROD END, CLEVIS CAM END |
| CONCENTRIC HOLE DIAMETER | 0.815 INCHES NOMINAL |
| OVERALL LENGTH | 2.433 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.995 INCHES NOMINAL |
| CAM END DIAMETER | 1.000 INCHES NOMINAL |
| ADJUSTABILITY | NONADJUSTABLE |
Restrictions/Controls & Freight Information | NSN 2805-00-847-2296
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-847-2296
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
