NSN 2805-00-766-3320 CTF600I2520, F600I02520, F600I2520
Product Details | ENGINE POPPET VALVE TAPPET
2805-00-766-3320 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: CTF600I2520, F600I02520, F600I2520, 74908515-2, 288MFY1, 49085152, 4908515-2, 74908515, 2805-00-766-3320, 00-766-3320, 2805007663320, 007663320, 749085152
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1962 | 00-766-3320 | 22199 ( TAPPET, ENGINE POPPET VALVE ) |

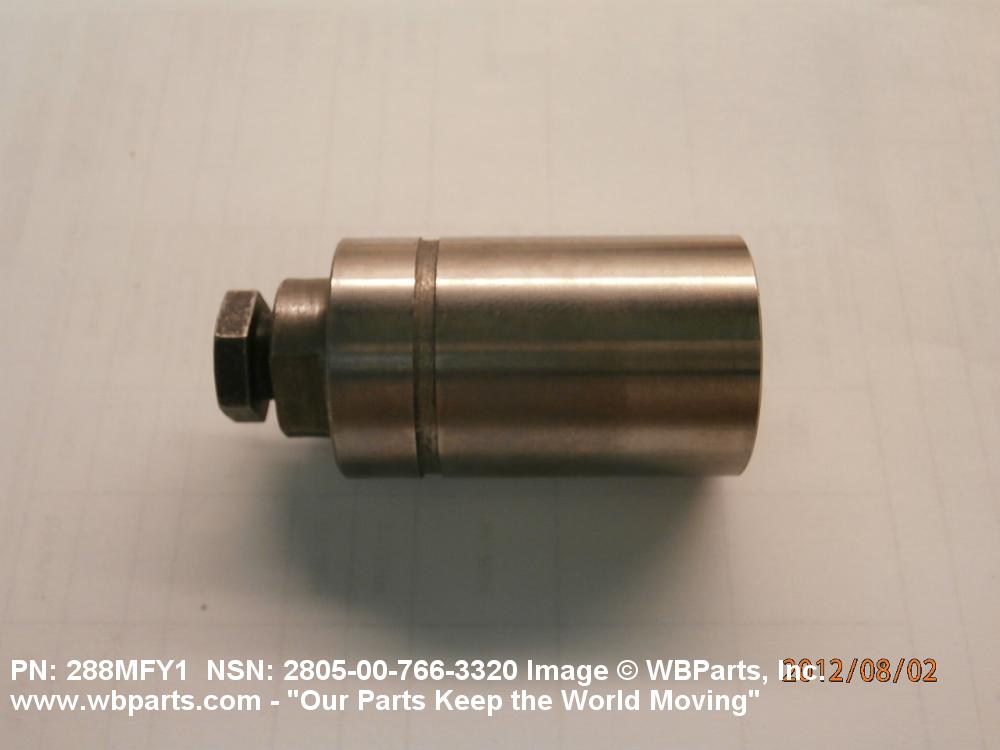

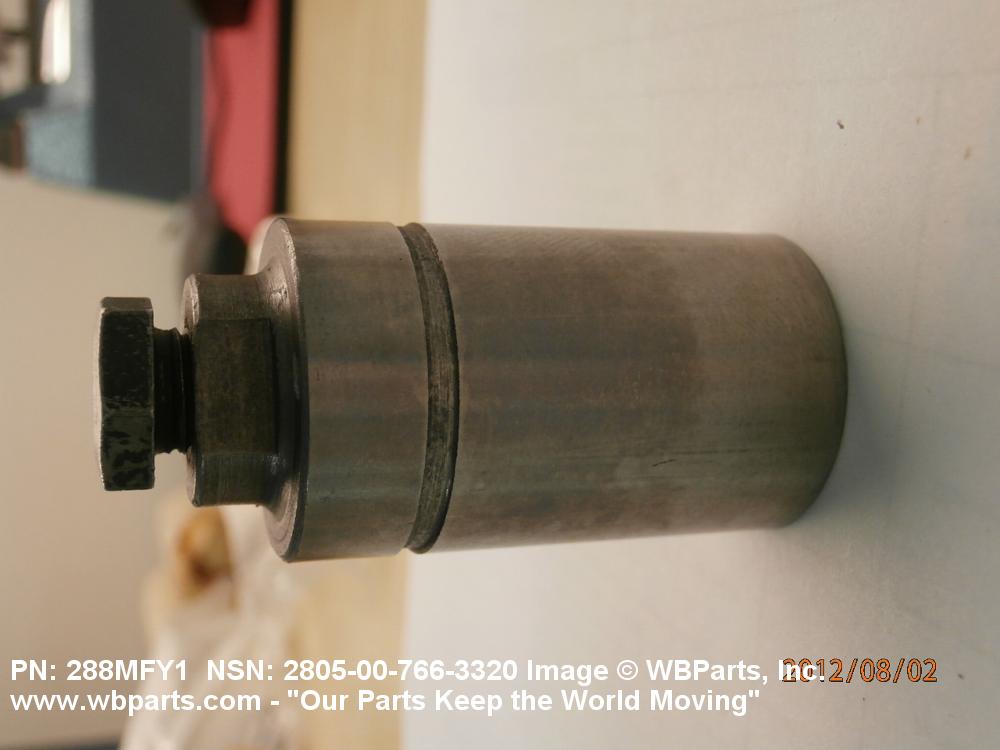

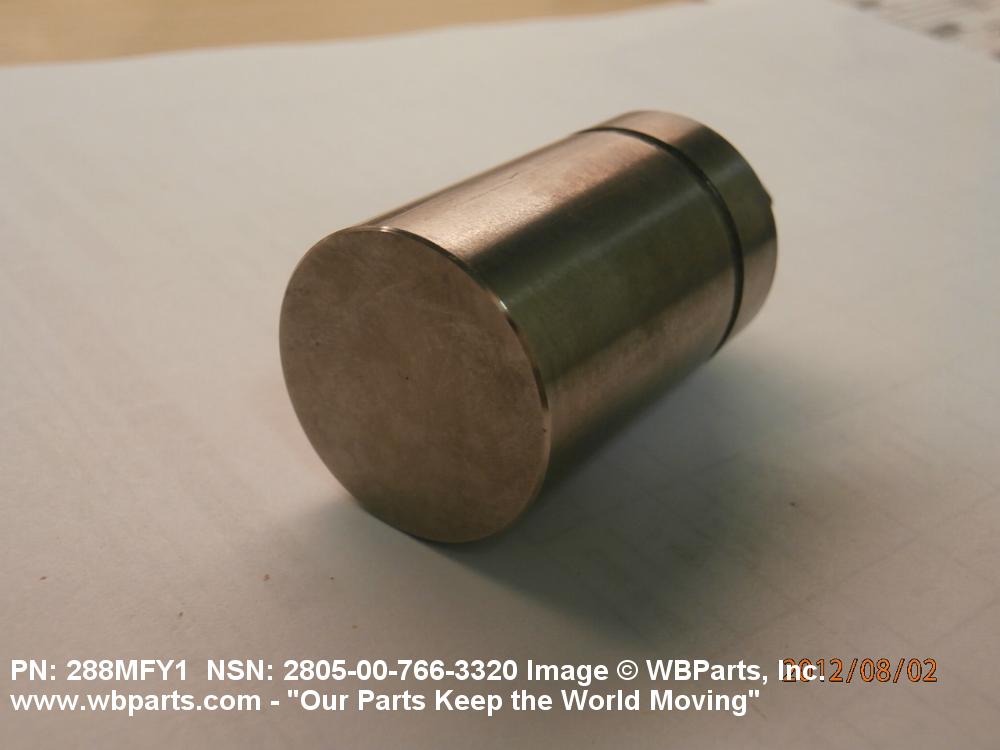

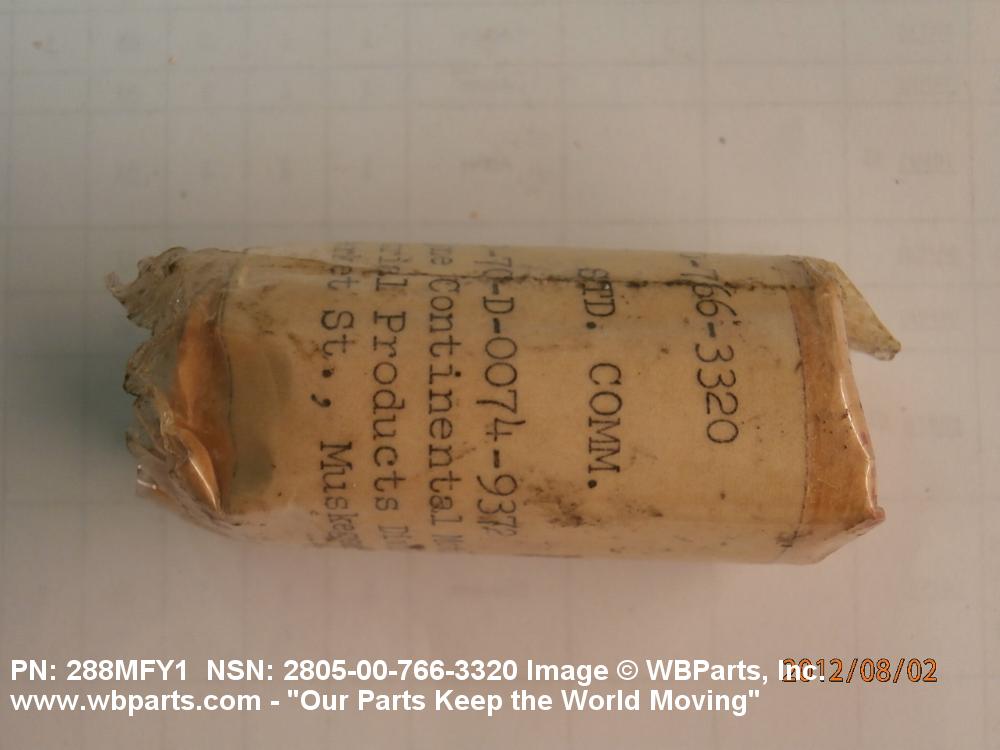

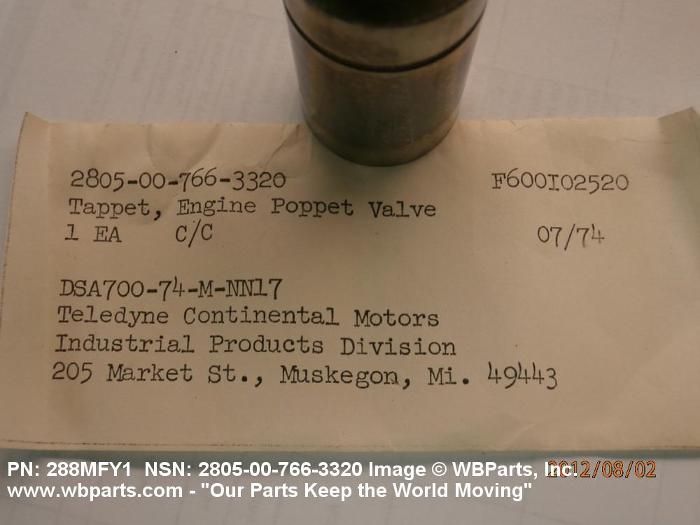

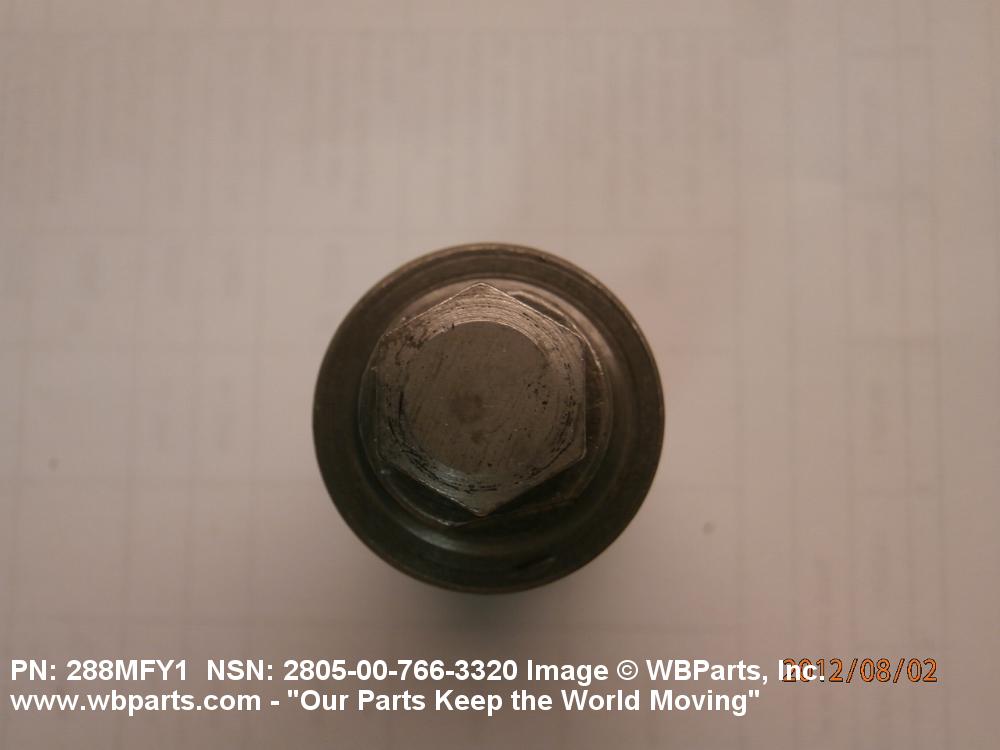

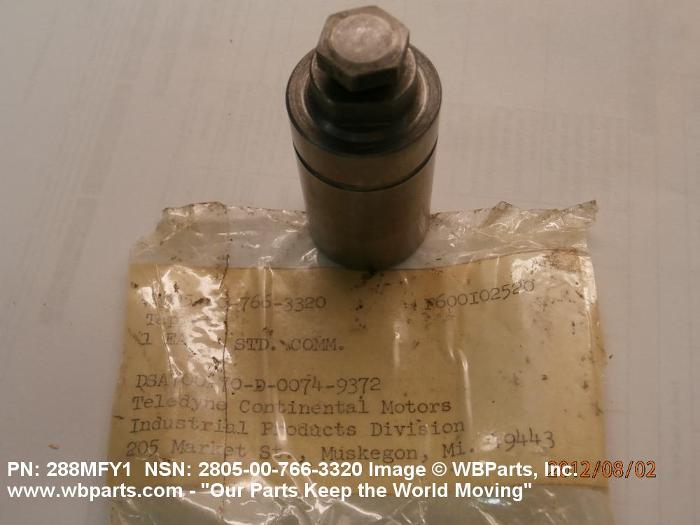

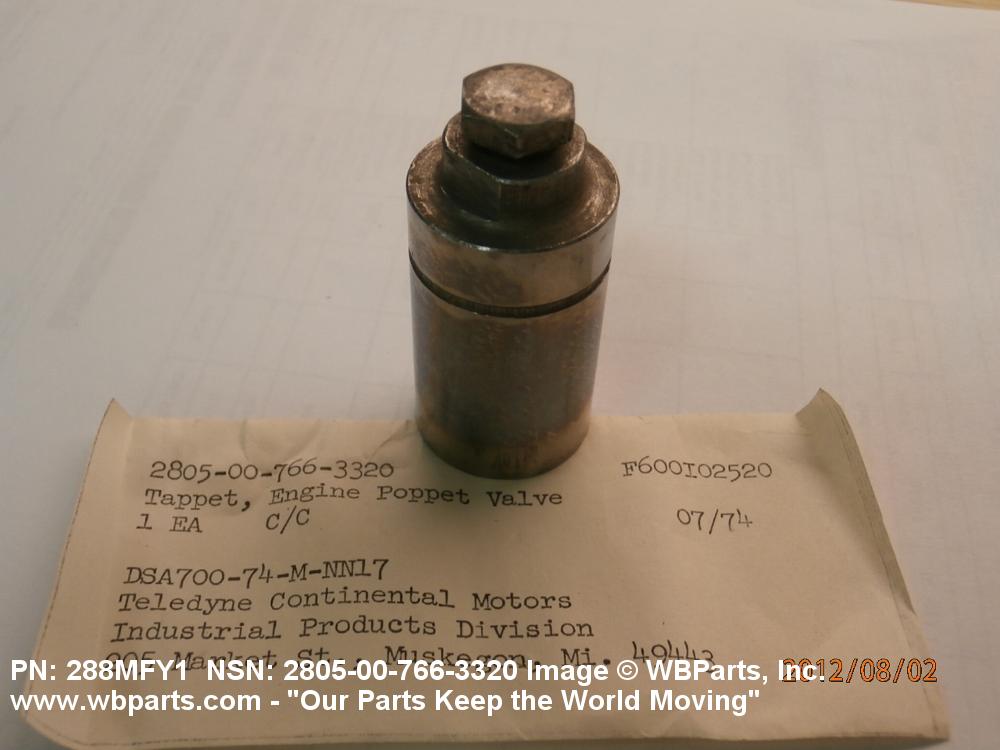

Drawings & Photos | NSN 2805-00-766-3320
Demand History | NSN 2805-00-766-3320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 288MFY1 | 2012-07-201 | 80 | Canada |
Cross Reference | NSN 2805-00-766-3320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 288MFY1 | 04515 | 3M COMPANY HEALTH CARE/MFG |
| 4908515-2 | 0AHU0 | KALMAR AC INC |
| 74908515 | 0AHU0 | KALMAR AC INC |
| 74908515-2 | 0AHU0 | KALMAR AC INC |
| CTF600I2520 | 10695 | TAYLOR-DUNN CORPORATION DBA METRO CROWN INTERNATIONAL |
| F600I02520 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| F600I02520 | 14351 | TELEDYNE CONTINENTAL MOTORS INDUSTRIAL PRODUCTS DIV |
| F600I2520 | 14351 | TELEDYNE CONTINENTAL MOTORS INDUSTRIAL PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2805-00-766-3320
Related Products | NSN 2805-00-766-3320
Technical Data | NSN 2805-00-766-3320
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | MECHANICAL |
| MATERIAL AND LOCATION | STEEL OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |
| CASEHARDENED LOCATION | OVERALL |

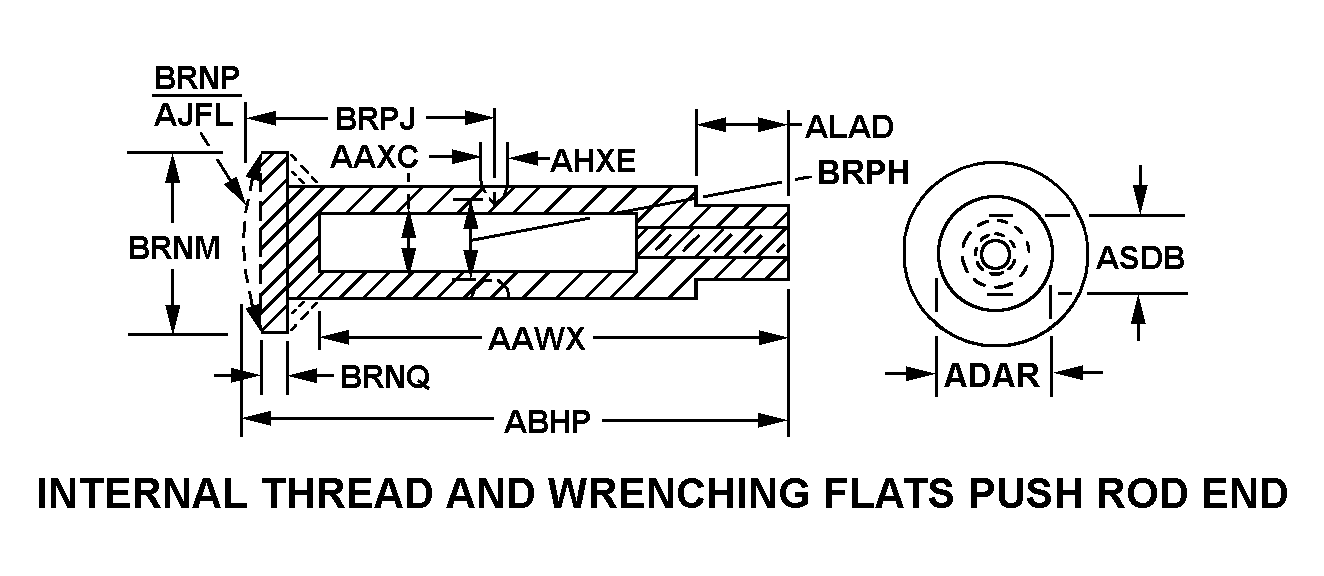

| STYLE DESIGNATOR | J4 INTERNAL THREAD AND WRENCHING FLATS PUSH ROD END |
| CONCENTRIC HOLE DEPTH | 1.500 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.999 INCHES NOMINAL |
| BODY GROOVE WIDTH | 0.078 INCHES NOMINAL |
| SPHERICAL RADIUS | ANY ACCEPTABLE |
| FLATS LENGTH | 0.208 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.556 INCHES NOMINAL |
| CAM END DIAMETER | 0.999 INCHES NOMINAL |
| CROWN HEIGHT | ANY ACCEPTABLE |
| CAM END HEIGHT | ANY ACCEPTABLE |
| BODY GROOVE DIAMETER | 0.975 INCHES NOMINAL |
| DISTANCE FROM BODY GROOVE CENTER TO CAM END | 1.250 INCHES NOMINAL |
| ADJUSTABILITY | ADJUSTABLE |
| ADJUSTING DEVICE | INCLUDED |
| SIZE DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 2805-00-766-3320
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-766-3320
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
