NSN 2805-00-847-1731 C5AZ6565A, C5AZ-6565-A, PR306

Product Details | ENGINE POPPET VALVE PUSH ROD

2805-00-847-1731 A tubular or solid item specifically designed to transmit intermittent motion from the engine poppet valve tappet to the engine poppet valve rocker arm.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components

Part Alternates: C5AZ6565A, C5AZ-6565-A, PR306, PR-306, RP1322, 4088, 48091, 899836, 2805-00-847-1731, 00-847-1731, 2805008471731, 008471731

Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
28	30 DEC 1966	00-847-1731	22102 ( PUSH ROD, ENGINE POPPET VALVE )

Drawings & Photos | NSN 2805-00-847-1731

Cross Reference | NSN 2805-00-847-1731

Part Number	Cage Code	Manufacturer
4088	77220	DANA CORP ENGINE PRODUCTS DIV
48091	31033	TRW INC TRW INTL TRADE GOVERNMENT SALES DEPT
48091	59875	EATON INDUSTRIAL CORPORATION DBA ARGO-TECH
899836	77237	DANA OFF HIGHWAY PRODUCTS, LLC
C5AZ-6565-A	23040	FORD MOTOR CO FORD PARTS AND SERVICE DIV
C5AZ-6565-A	57526	FORD MOTOR CO
PR-306	72156	ELGIN INDUSTRIES INC. DBA
RP1322	73160	FEDERAL-MOGUL CORP POWERTRAIN PRODUCTS DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2805-00-847-1731

Compare

Related Products | NSN 2805-00-847-1731

2805-00-847-1735, 2805-00-847-2145, 2805-00-847-2154, 2805-00-847-2160, 2805-00-847-2170

Technical Data | NSN 2805-00-847-1731

Characteristic	Specifications
MATERIAL	STEEL
END HARDNESS RATING	NOT RATED
END CASEHARDENING INDICATOR	CASEHARDENED
BODY OUTSIDE DIAMETER	0.315 INCHES NOMINAL
OVERALL LENGTH	10.180 INCHES NOMINAL

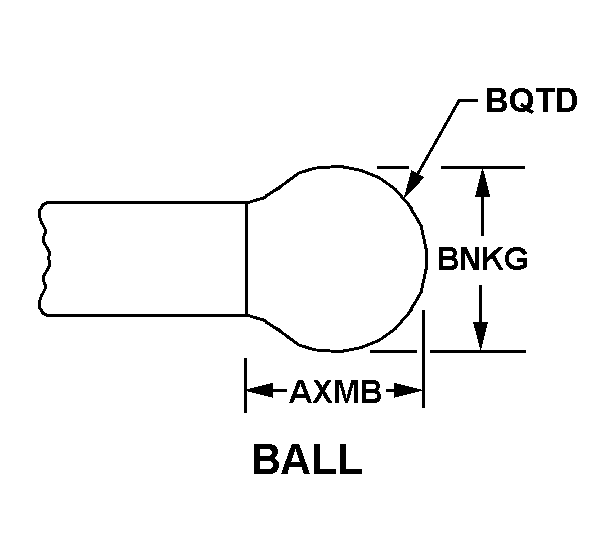

STYLE DESIGNATOR	K3 BALL ENDS IDENTICAL
END LENGTH	0.250 INCHES NOMINAL ENDS IDENTICAL
END LARGEST DIAMETER	0.313 INCHES NOMINAL ENDS IDENTICAL
END SPHERICAL RADIUS	0.156 INCHES NOMINAL ENDS IDENTICAL
BODY TYPE	TUBULAR

Restrictions/Controls & Freight Information | NSN 2805-00-847-1731

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	120800	ENGINES, INTERNAL COMBUSTION, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2805-00-847-1731

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SU	SU:AF SICA RESIDUAL MMAC-OO-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
