NSN 2805-00-908-6918 PR318, PR-318, 3788494
Product Details | ENGINE POPPET VALVE PUSH ROD
2805-00-908-6918 A tubular or solid item specifically designed to transmit intermittent motion from the engine poppet valve tappet to the engine poppet valve rocker arm.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: PR318, PR-318, 3788494, 4081, 145175, 2805-00-908-6918, 00-908-6918, 2805009086918, 009086918
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 20 JUN 1966 | 00-908-6918 | 22102 ( PUSH ROD, ENGINE POPPET VALVE ) |
Drawings & Photos | NSN 2805-00-908-6918
Demand History | NSN 2805-00-908-6918
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4081 | 2017-10-290 | 1 | US |
| 4081 | 2009-04-107 | 3 | United States |
Cross Reference | NSN 2805-00-908-6918
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145175 | 04627 | NACCO MATERIALS HANDLING GROUP INC |
| 145175 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 3788494 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 3788494 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 4081 | 19239 | ECHLIN INC |
| PR-318 | 72156 | ELGIN INDUSTRIES INC. DBA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-908-6918
Technical Data | NSN 2805-00-908-6918
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| END HARDNESS RATING | NOT RATED |
| END CASEHARDENING INDICATOR | CASEHARDENED |
| BODY OUTSIDE DIAMETER | 0.312 INCHES NOMINAL |
| OVERALL LENGTH | 11.382 INCHES NOMINAL |

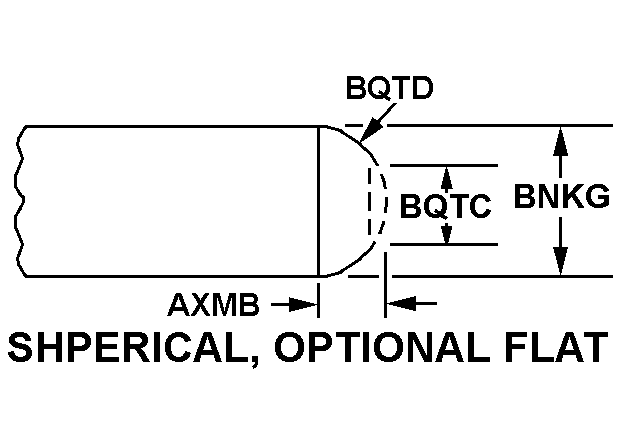

| STYLE DESIGNATOR | K2 SPHERICAL, OPTIONAL FLAT ENDS IDENTICAL |
| END LENGTH | 0.093 INCHES NOMINAL ENDS IDENTICAL |
| END LARGEST DIAMETER | 0.312 INCHES NOMINAL ENDS IDENTICAL |
| FLAT DIAMETER | 0.125 INCHES NOMINAL ENDS IDENTICAL |
| END SPHERICAL RADIUS | 0.141 INCHES NOMINAL ENDS IDENTICAL |
| BODY TYPE | TUBULAR |
Restrictions/Controls & Freight Information | NSN 2805-00-908-6918
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120800 | ENGINES, INTERNAL COMBUSTION, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-908-6918
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
