NSN 2590-00-740-9553 007409553
Product Details | WIPER RING
2590-00-740-9553 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 007409553
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-740-9553 | 20256 ( RING, WIPER ) |

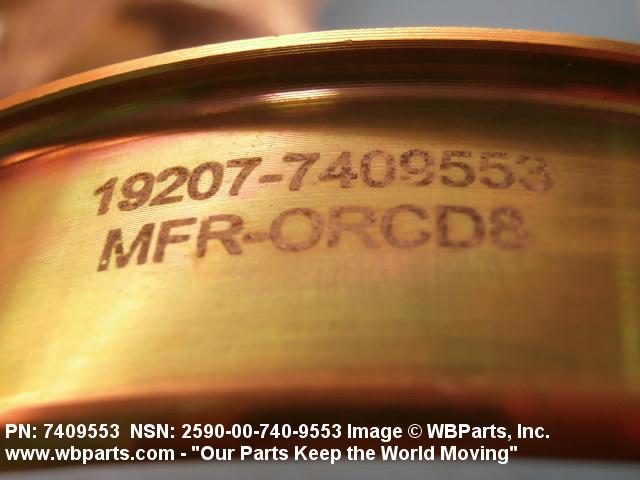

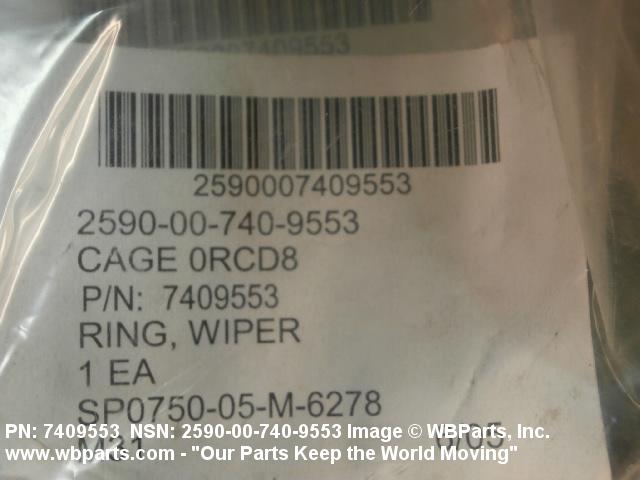

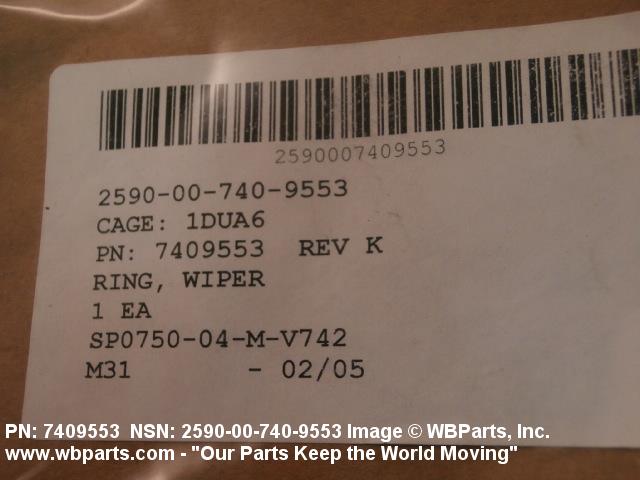

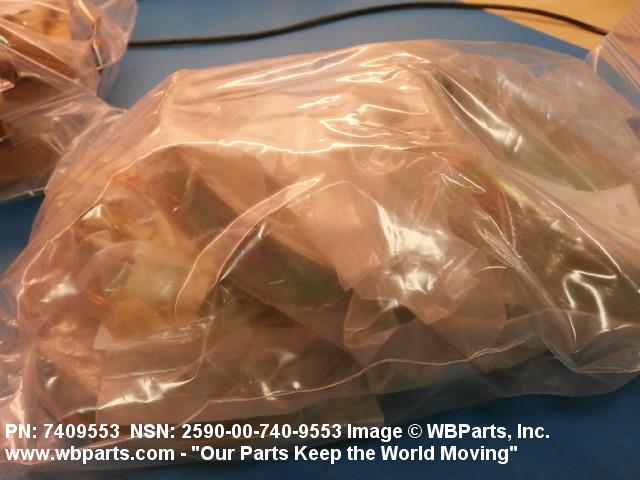

Drawings & Photos | NSN 2590-00-740-9553
Demand History | NSN 2590-00-740-9553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2590-00-740-9553 | 2019-12-364 | 18 | MANUAL |
| 7409553 | 2019-12-364 | 18 | Taiwan |
| 7409553 | 2014-06-176 | 8 | United States |
| 2590-00-740-9553 | 2011-01-18 | 10 | US |
| 2590-00-740-9553 | 2010-05-148 | 4000 | DIBBS |
| 2590-00-740-9553 | 2010-03-62 | 2500 | DIBBS |
| 2590-00-740-9553 | 2009-04-101 | 85 | Thailand |
| 007409553 | 2008-09-246 | 4 | United States |
| 2590-00-740-9553 | 2007-11-330 | 12743 | DIBBS |
| 2590-00-740-9553 | 2006-06-167 | 1795 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-00-740-9553
Technical Data | NSN 2590-00-740-9553
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | B4 OUTSIDE GROOVED, STRAIGHT FACE |
| RING STYLE | 7 CONCENTRIC |

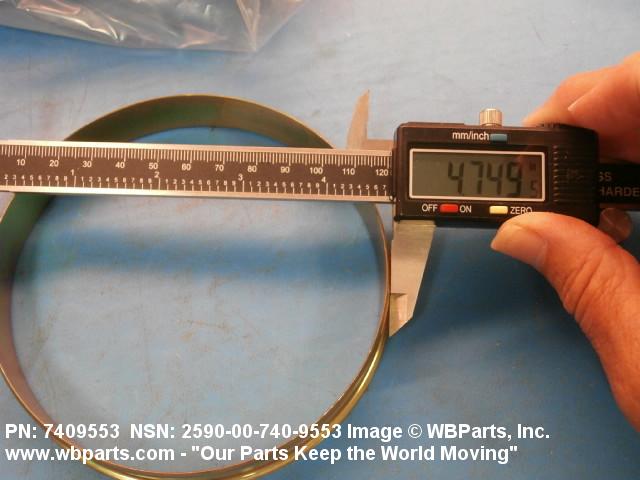

| INSIDE DIAMETER | 4.639 INCHES MINIMUM AND 4.643 INCHES MAXIMUM |

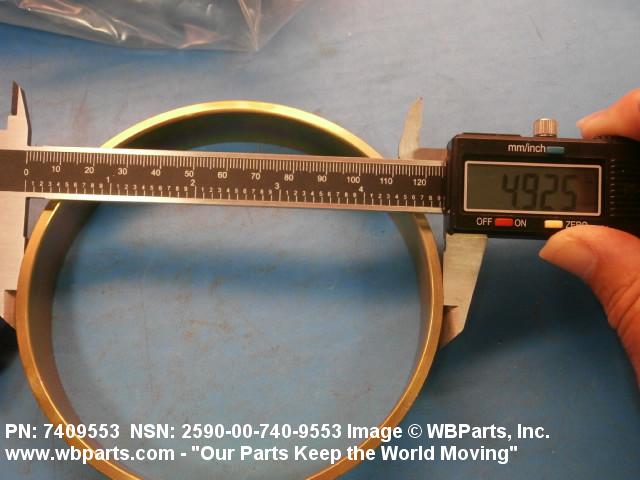

| OUTSIDE DIAMETER | 4.938 INCHES NOMINAL |

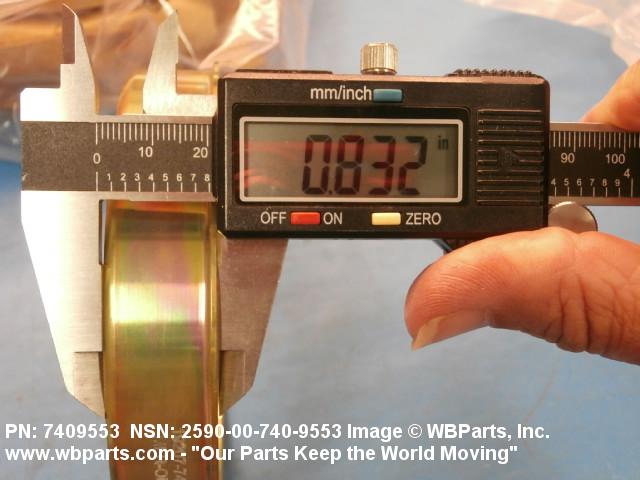

| MATERIAL THICKNESS | 0.812 INCHES MINIMUM AND 0.843 INCHES MAXIMUM |

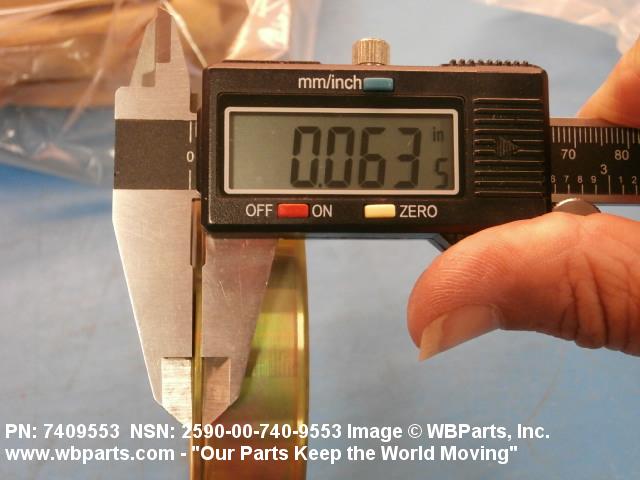

| OUTER EDGE THICKNESS | 0.057 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | 2320-01-047-8756 |
| III FSC APPLICATION DATA | AXLE ASSEMBLIES,VEHICULAR,NONDRIVING |
Restrictions/Controls & Freight Information | NSN 2590-00-740-9553
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
