NSN 2590-00-450-0507 004500507
Product Details | WIPER RING
2590-00-450-0507 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 004500507
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-450-0507 | 20256 ( RING, WIPER ) |

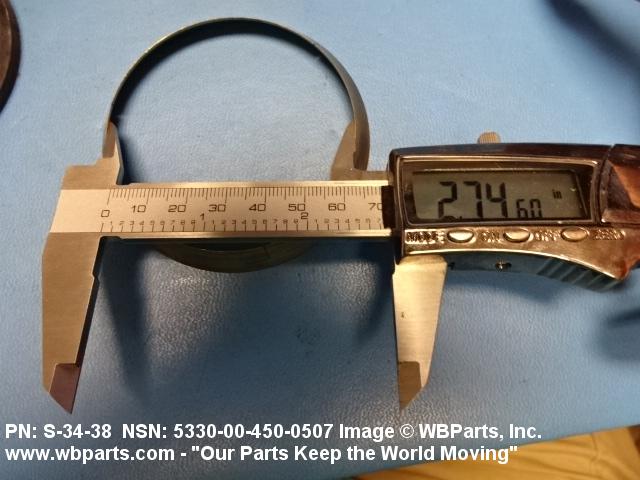

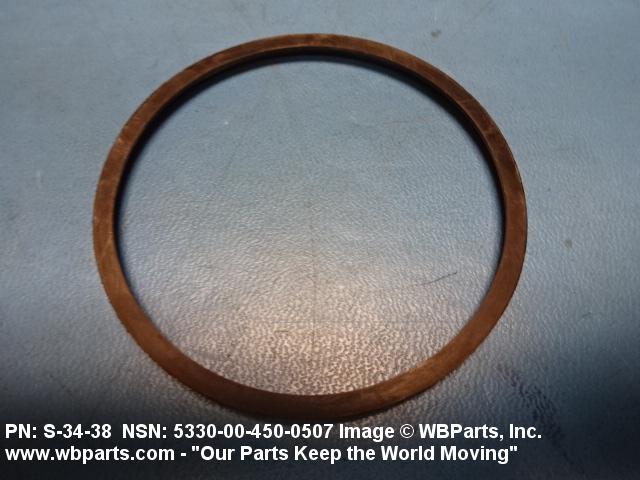

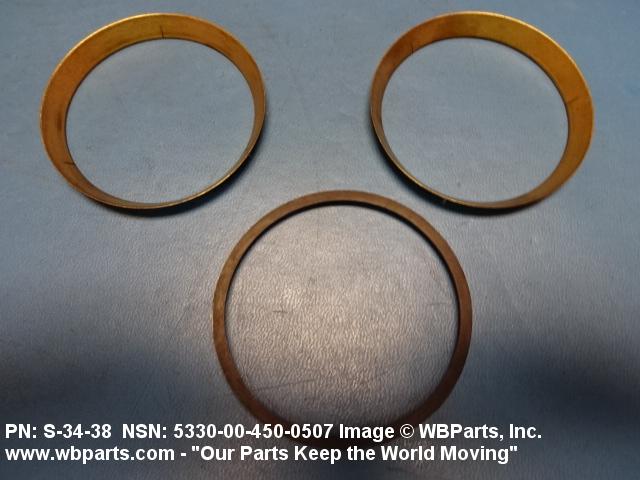

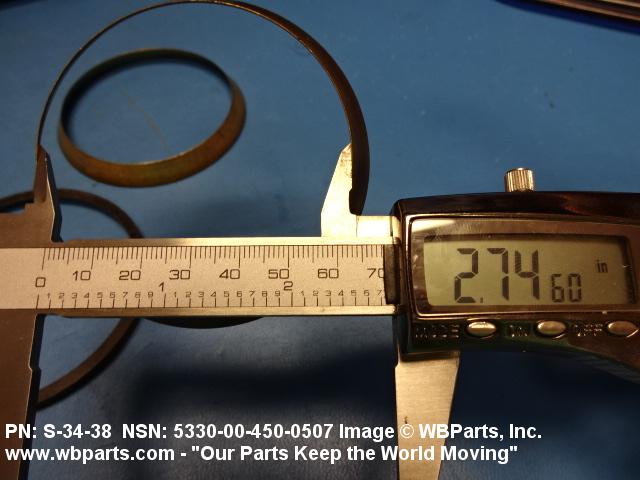

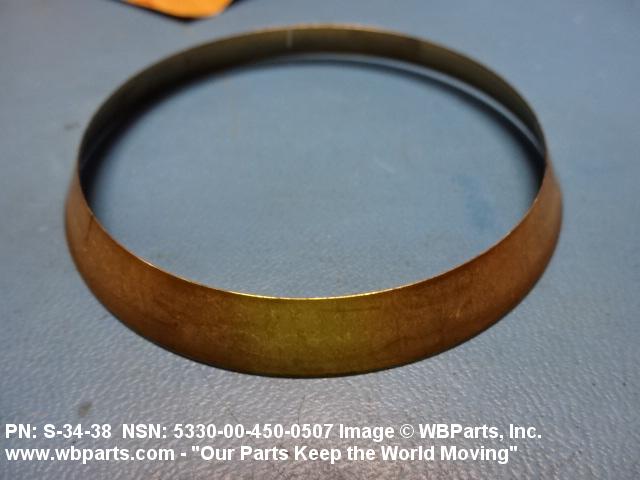

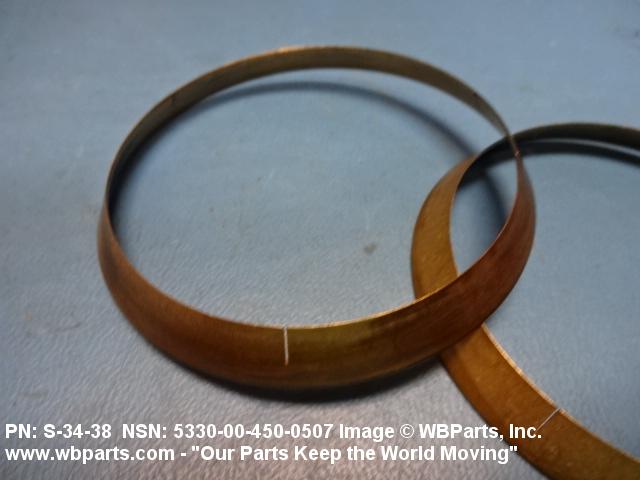

Drawings & Photos | NSN 2590-00-450-0507
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-00-450-0507
Technical Data | NSN 2590-00-450-0507
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS OR BRONZE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 70A OR SAE 660 FSCM 81343 OVERALL |
| INSIDE DIAMETER | 2.748 INCHES MINIMUM AND 2.752 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.370 INCHES MINIMUM AND 0.430 INCHES MAXIMUM |
| III FSC APPLICATION DATA | VEHICULAR |
| MANUFACTURERS CODE | 80064 |
| MFR SOURCE CONTROLLING REFERENCE | 2587443 |
Restrictions/Controls & Freight Information | NSN 2590-00-450-0507
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
