Product Details | RING DRAWBAR COUPLER
2540-01-202-7569 An item having a circular shaped eye at one end for coupling to the pintle of a towing vehicle. It is designed to be mounted on the drawbar of a vehicle to be towed. See also BOLT, EYE.
Part Alternates: 7916723, 2540-01-202-7569, 01-202-7569, 2540012027569, 012027569
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 06 MAR 1985 | 01-202-7569 | 19449 ( COUPLER, DRAWBAR, RING ) |
Drawings & Photos | NSN 2540-01-202-7569
Cross Reference | NSN 2540-01-202-7569
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7916723 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-01-202-7569
Related Products | NSN 2540-01-202-7569
Technical Data | NSN 2540-01-202-7569
| Characteristic | Specifications |
|---|---|

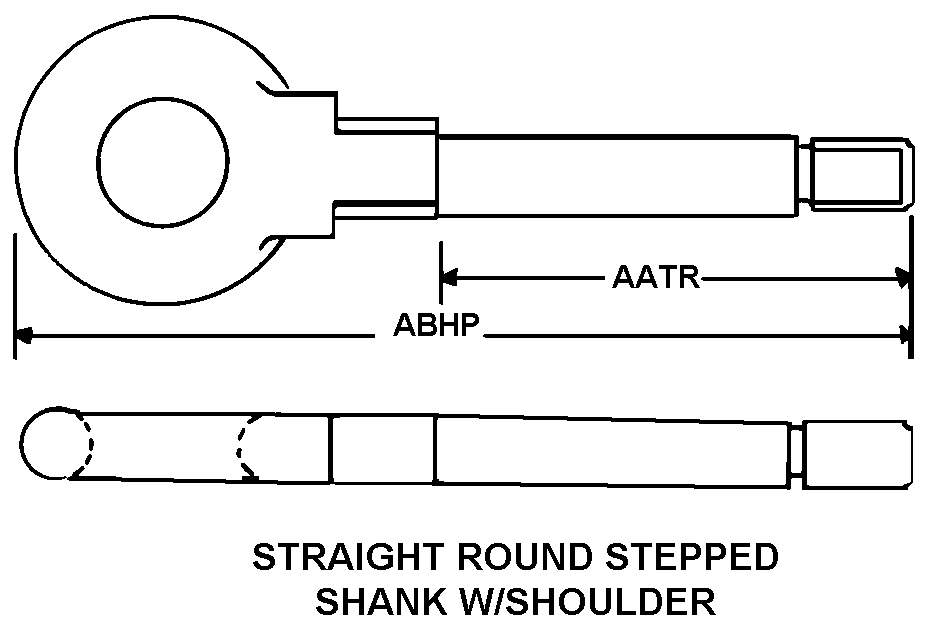

| STYLE DESIGNATOR | 12 STRAIGHT ROUND STEPPED SHANK W/SHOULDER |
