Product Details | RING DRAWBAR COUPLER

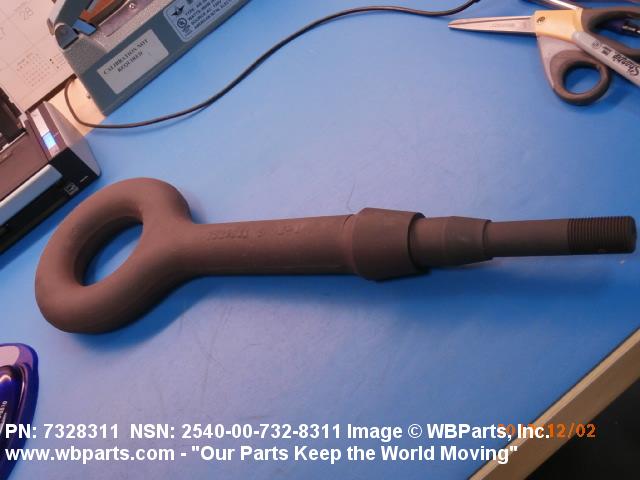

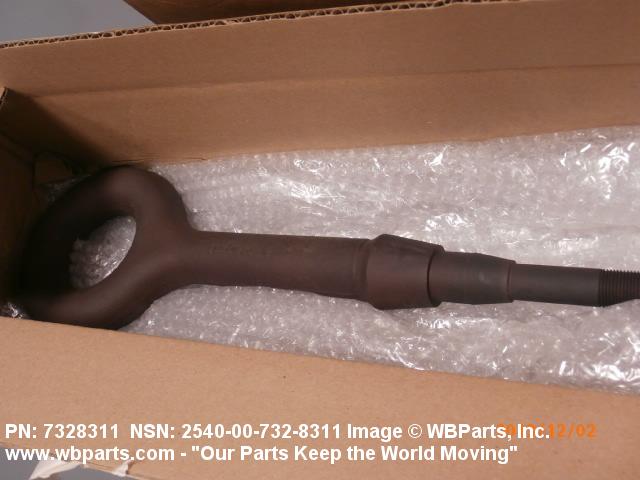

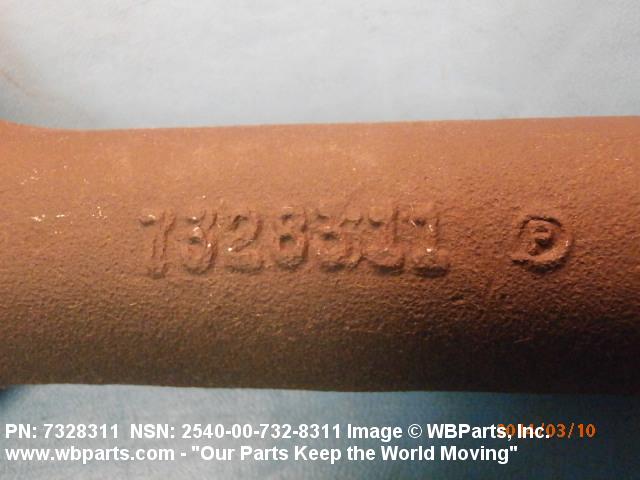

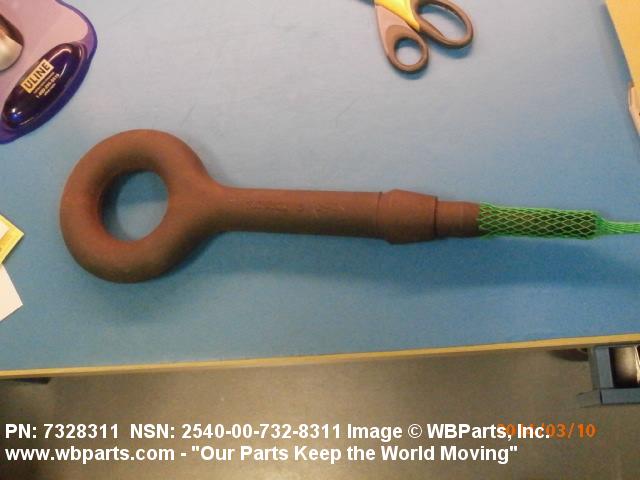

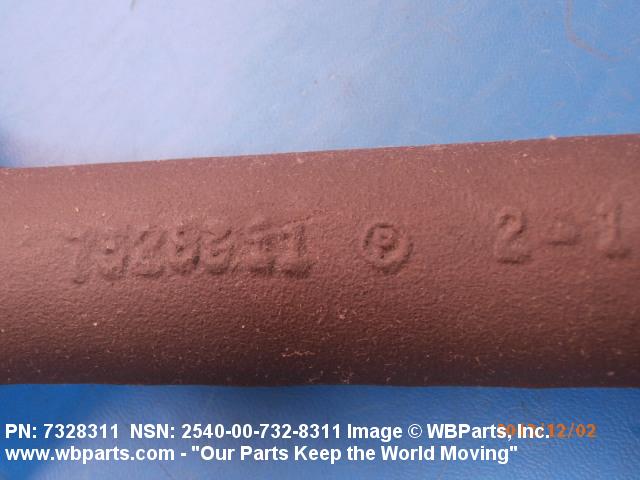

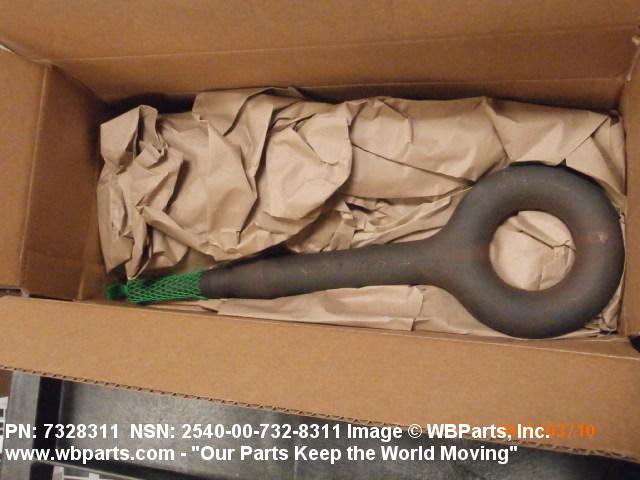

2540-00-732-8311 An item having a circular shaped eye at one end for coupling to the pintle of a towing vehicle. It is designed to be mounted on the drawbar of a vehicle to be towed. See also BOLT, EYE.
Part Alternates: 731440, 73-1440, 7328311, 2540-00-732-8311, 00-732-8311, 2540007328311, 007328311
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-732-8311 | 19449 ( COUPLER, DRAWBAR, RING ) |

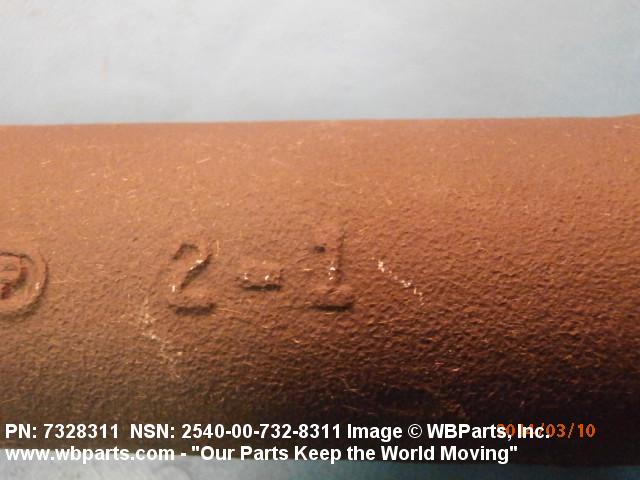

Drawings & Photos | NSN 2540-00-732-8311
Demand History | NSN 2540-00-732-8311
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-00-732-8311 | 2022-07-212 | 2 | US |
| 2540-00-732-8311 | 2013-10-303 | 9 | Japan |
| 2540-00-732-8311 | 2013-10-276 | 10 | Japan |
| 7328311 | 2010-09-264 | 167 | Japan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-00-732-8311
Related Products | NSN 2540-00-732-8311
Technical Data | NSN 2540-00-732-8311
| Characteristic | Specifications |
|---|---|

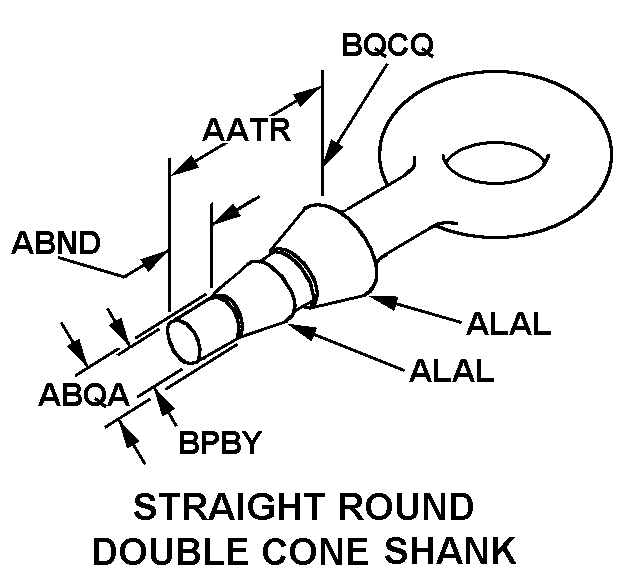

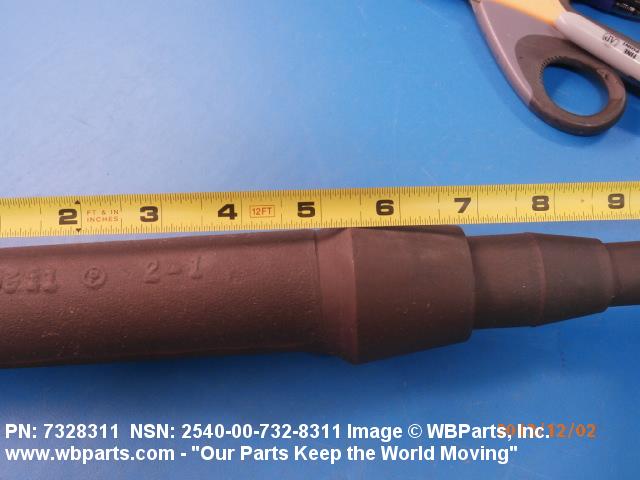

| STYLE DESIGNATOR | 4 STRAIGHT ROUND DOUBLE CONE SHANK |

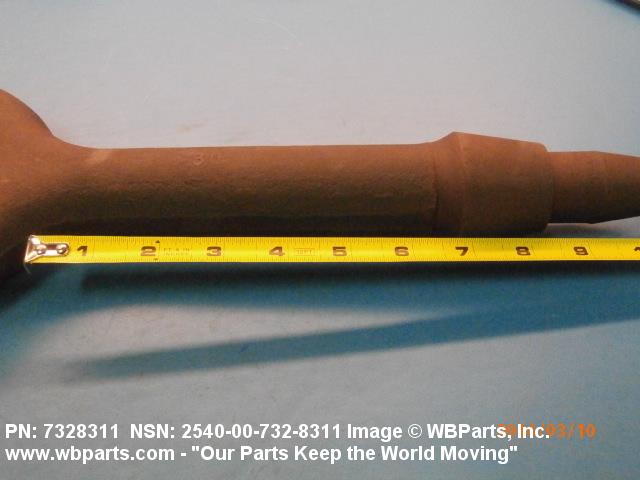

| SHANK LENGTH | 6.750 INCHES NOMINAL |
| TAPER LENGTH | 0.938 INCHES NOMINAL |
| TAPER PER FOOT | 3.500 INCHES NOMINAL |
| SHANK ANGLE DEG | 45.0 |
| TAPER MAJOR LENGTH | 1.500 INCHES NOMINAL |

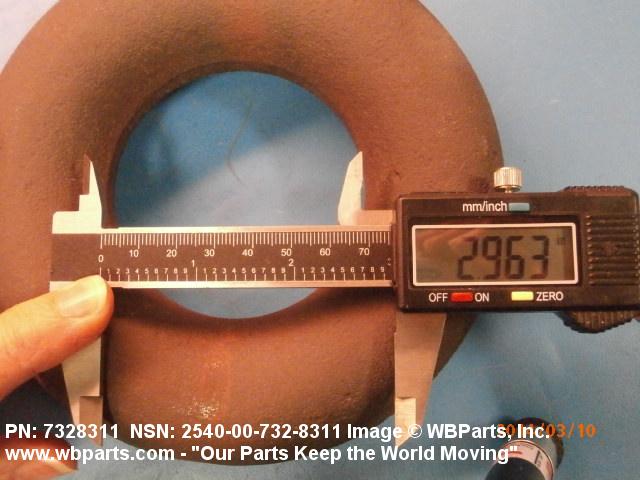

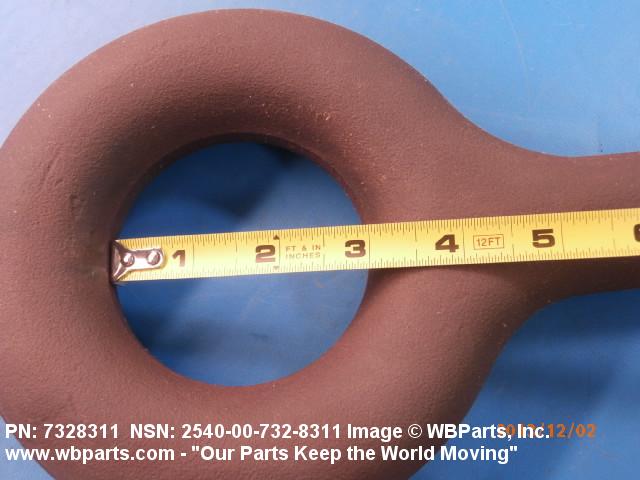

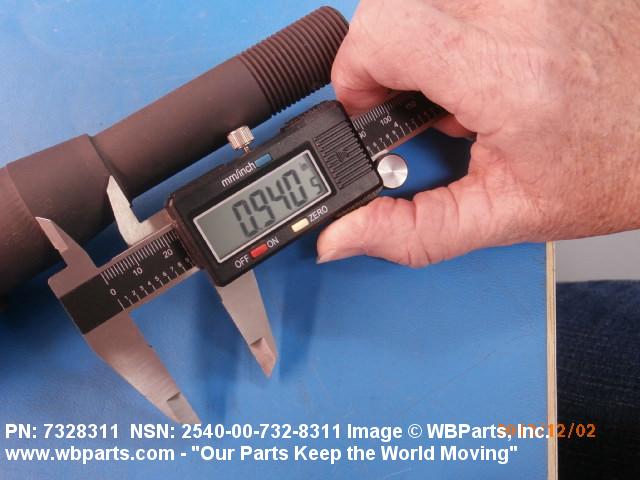

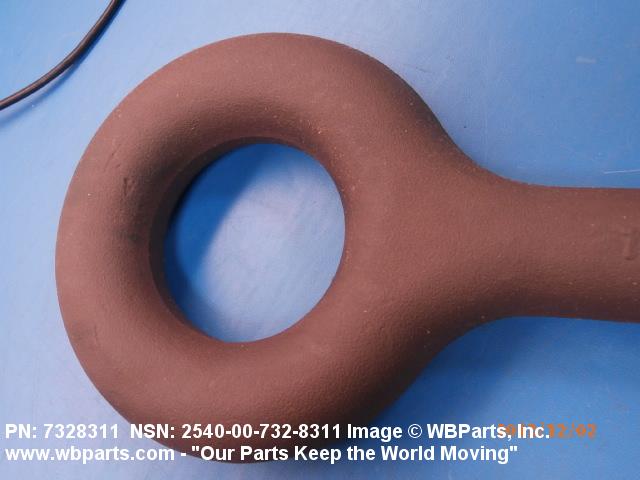

| RING INSIDE DIAMETER | 2.969 INCHES MINIMUM AND 3.062 INCHES MAXIMUM |

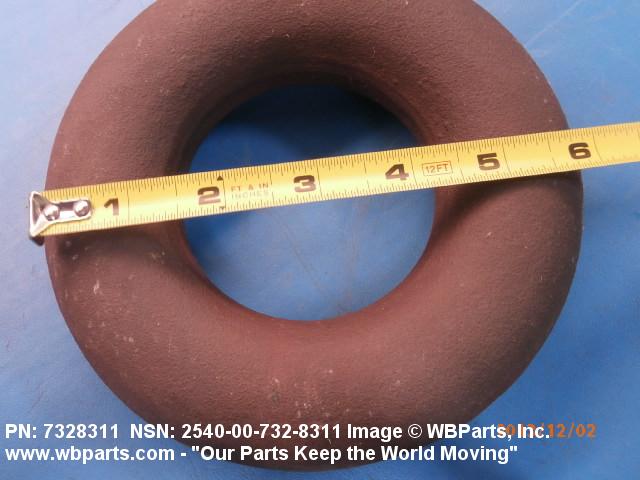

| RING OUTSIDE DIAMETER | 6.156 INCHES MINIMUM AND 6.344 INCHES MAXIMUM |

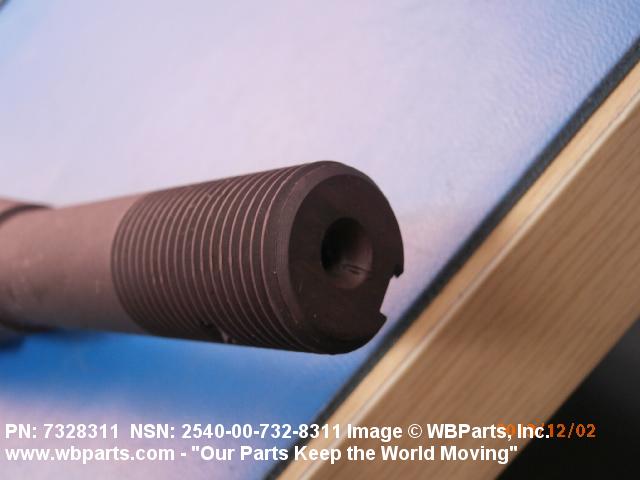

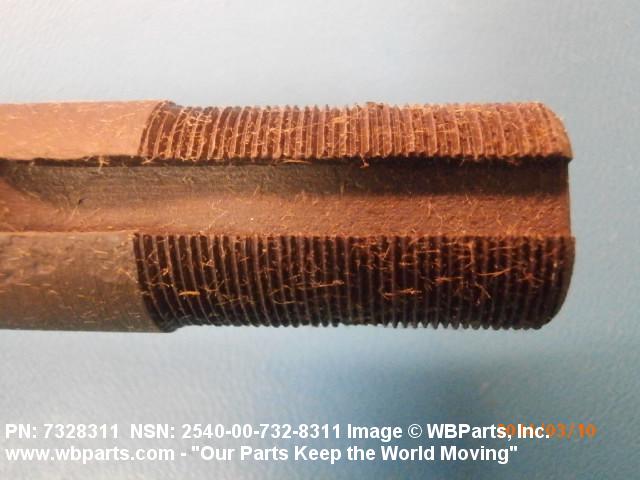

| SHANK END THREAD PROVISION | THREADED |

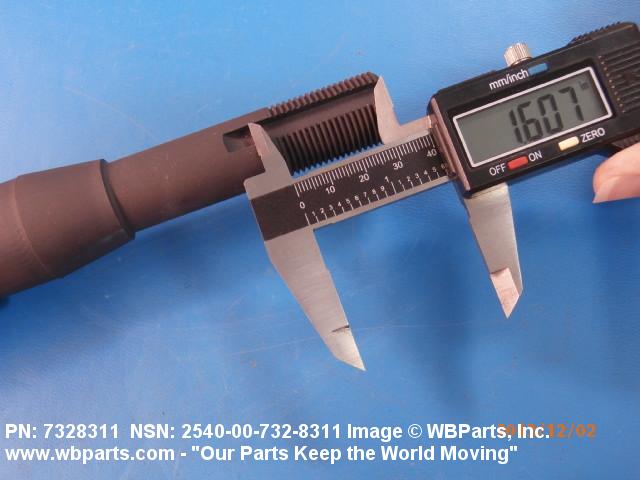

| THREAD SIZE | 7/8 IN.-14 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD DIRECTION | RIGHT-HAND |

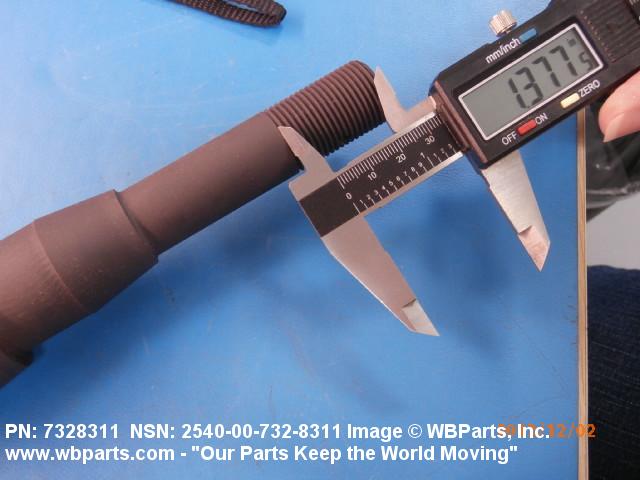

| THREAD LENGTH | 1.375 INCHES |

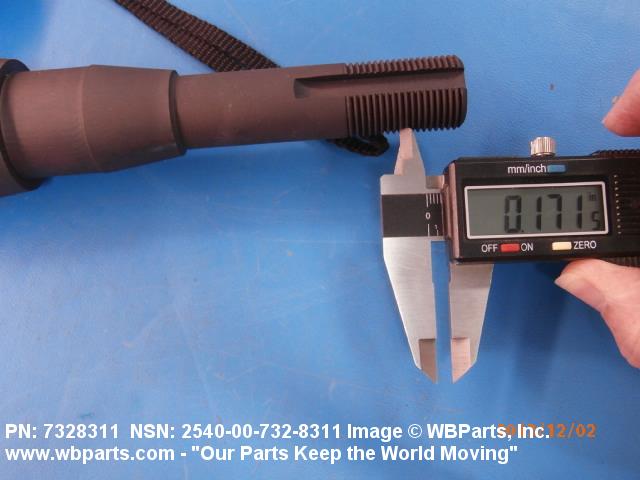

| COTTER PIN HOLE DIAMETER | 0.172 INCHES NOMINAL |
| SHANK END KEYWAY | PROVIDED |
| KEYWAY LENGTH | 1.500 INCHES NOMINAL |

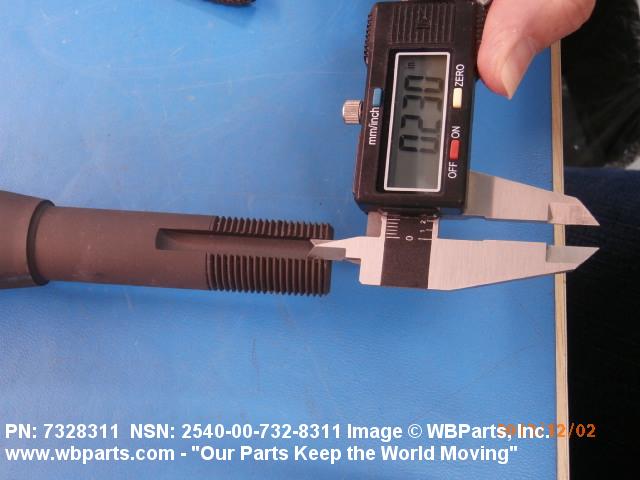

| KEYWAY WIDTH | 0.246 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| KEYWAY DEPTH | 0.154 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| PAINTED FEATURE | INCLUDED |
| COLOR | OLIVE DRAB |
