NSN 2540-00-773-5482 MT128, A14047, TU338
Product Details | RING DRAWBAR COUPLER
2540-00-773-5482 An item having a circular shaped eye at one end for coupling to the pintle of a towing vehicle. It is designed to be mounted on the drawbar of a vehicle to be towed. See also BOLT, EYE.
Part Alternates: MT128, A14047, TU338, 08E02050000, 14047, 18689, 18S2331, 3109028, 505884, 6244, 7735482, 2540-00-773-5482, 00-773-5482, 2540007735482, 007735482
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1962 | 00-773-5482 | 19449 ( COUPLER, DRAWBAR, RING ) |
Drawings & Photos | NSN 2540-00-773-5482
Demand History | NSN 2540-00-773-5482
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 14047 | 2010-04-98 | 1 | US |
Cross Reference | NSN 2540-00-773-5482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08E02050000 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| 14047 | 83120 | PRESSED METALS OF AMERICA INC |
| 18689 | 11743 | CHECKER MOTORS CORPORATION |
| 18S2331 | 58141 | STRICK TRAILER CO |
| 3109028 | 73830 | GERSTENLAGER CO THE |
| 505884 | 23705 | FRUEHAUF CORP |
| 6244 | 54713 | EATON CORP |
| 7735482 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| A14047 | 34623 | AM GENERAL, LLC |
| MT128 | 26051 | GREAT AMERICAN INDUSTRIES INC |
| TU338 | 49200 | PROSPERITY A DIV OF AMETEK INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-00-773-5482
Related Products | NSN 2540-00-773-5482
Technical Data | NSN 2540-00-773-5482
| Characteristic | Specifications |
|---|---|

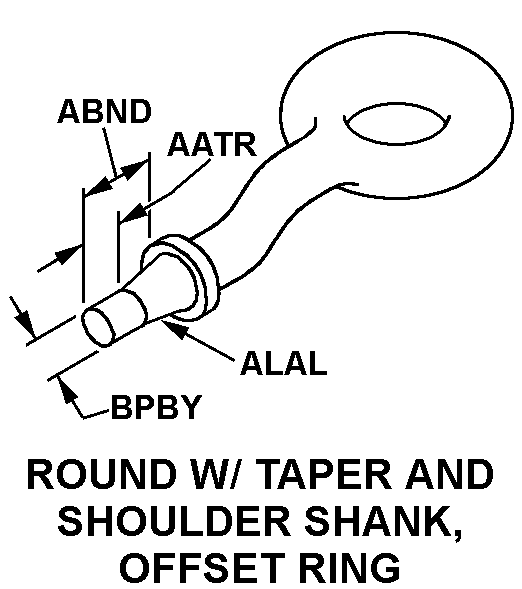

| STYLE DESIGNATOR | 5 ROUND W/TAPER AND SHOULDER SHANK, OFFSET RING |
| SHANK LENGTH | 6.250 INCHES NOMINAL |
| TAPER LENGTH | 3.938 INCHES NOMINAL |
| TAPER PER FOOT | 1.500 INCHES NOMINAL |
| RING INSIDE DIAMETER | 3.000 INCHES NOMINAL |
| RING OUTSIDE DIAMETER | 6.438 INCHES MINIMUM AND 6.562 INCHES MAXIMUM |
| SHANK END THREAD PROVISION | THREADED |
| THREAD SIZE | 1-1/8 IN. - 16 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.188 INCHES |
| COTTER PIN HOLE DIAMETER | 0.203 INCHES NOMINAL |
| SHANK END KEYWAY | NOT PROVIDED |
| PAINTED FEATURE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2540-00-773-5482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 192030 | VEHICLE PTS:HITCHES/COUPLERS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
