NSN 2540-00-625-8820 6258820, 00-625-8820, 006258820
Product Details | PINTLE HOOK LATCH
2540-00-625-8820 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Part Alternates: 6258820, 2540-00-625-8820, 00-625-8820, 2540006258820, 006258820
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-625-8820 | 11401 ( LATCH, PINTLE HOOK ) |
Drawings & Photos | NSN 2540-00-625-8820
Cross Reference | NSN 2540-00-625-8820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6258820 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-00-625-8820
Related Products | NSN 2540-00-625-8820
Technical Data | NSN 2540-00-625-8820
| Characteristic | Specifications |
|---|---|
| PINTLE TYPE FOR WHICH DESIGNED | AUTOMATIC |
| MATERIAL | STEEL, QQ-S-624, FS8640-CANCELED OR STEEL, QQ-S-624, FS8740-CANCELED OR STEEL, QQ-S-624, FS4140-CANCELED |

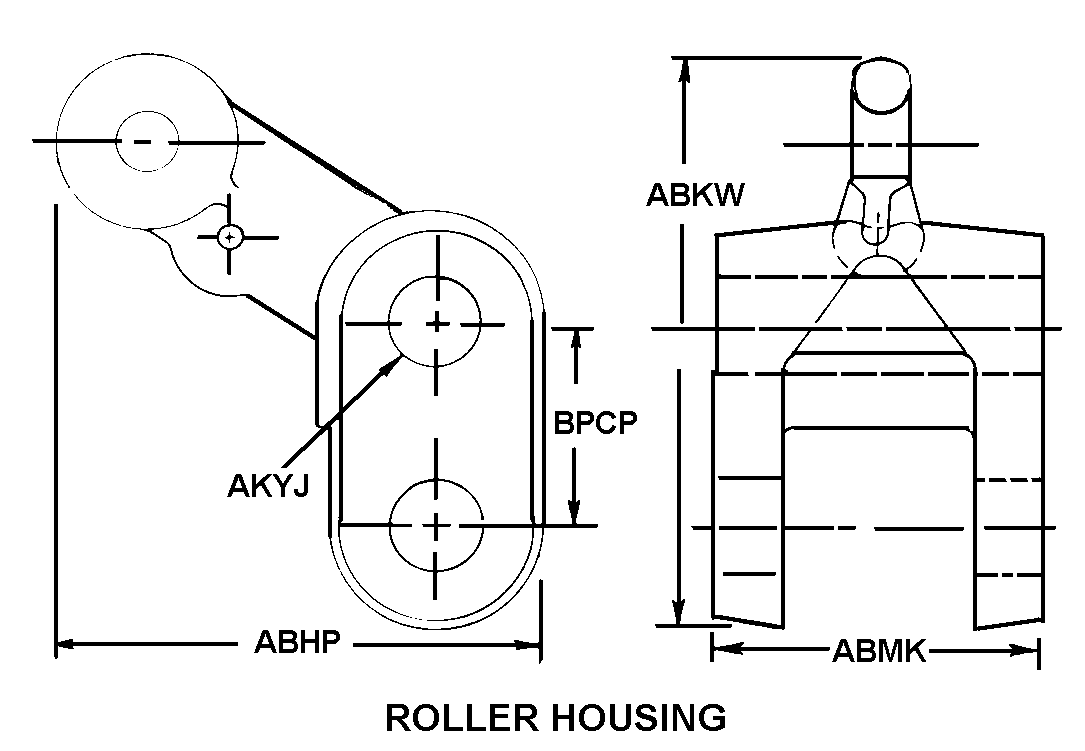

| STYLE DESIGNATOR | 3 ROLLER HOUSING |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 4.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.734 INCHES MINIMUM AND 1.766 INCHES MAXIMUM |
| PIVOT PIN HOLE DIAMETER | 0.885 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PIN HOLE CENTER TO ROLLER PIN HOLE CENTER | 1.718 INCHES MINIMUM AND 1.728 INCHES MAXIMUM |
| THREADED PIVOT PIN LOCKING HOLE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2540-00-625-8820
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
