Product Details | PINTLE HOOK LATCH

2540-00-287-8224 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.

Part Alternates: B12694, BB27536, T1032, T103-2, 0048290, 048290, 110292H, 110671, 113, 152685, 16B7359, 2018584, 221SW13, 245664, 2847G163, 396110, 399957, 48290, 6012694, 669733, 70048290, 800921, 2540-00-287-8224, 00-287-8224, 2540002878224, 002878224

Vehicular Equipment Components | Vehicular Furniture and Accessories

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1963 00-287-8224

Drawings & Photos | NSN 2540-00-287-8224


Demand History | NSN 2540-00-287-8224

Part Number Request Date QTY Origin
152685 2010-11-334 2
T1032 2009-07-182 50 US
48290 2006-06-152 1 US

Cross Reference | NSN 2540-00-287-8224

Part Number Cage Code Manufacturer
0048290 89926 NEW HOLLAND CONSTRUCTION
048290 89926 NEW HOLLAND CONSTRUCTION
110292H 31007 NAVISTAR INTL CORP
110292H 89346 NAVISTAR INTL CORP TRUCK BR
110671 97907 TEREX CORP
113 74410 HOLLAND USA INC
152685 08683 BROCKWAY MOTOR TRUCKS DIV OF MACK TRUCKS INC
16B7359 95201 NAPCO INTERNATIONAL LLC
2018584 24617 GENERAL MOTORS CORP
2018584 97907 TEREX CORP
221SW13 76040 MACK TRUCKS INC PARTS OPN
245664 08683 BROCKWAY MOTOR TRUCKS DIV OF MACK TRUCKS INC
2847G163 72260 CORBITT CO INC
2847G163 78500 MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS,
396110 65282 WHITE MOTOR CORP
399957 65282 WHITE MOTOR CORP
48290 62508 UTILITY TRAILER MFG CO
48290 89926 NEW HOLLAND CONSTRUCTION
6012694 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
669733 58275 SASCO INC CANADIAN DIV
70048290 89926 NEW HOLLAND CONSTRUCTION
800921 23705 FRUEHAUF CORP
B12694 76040 MACK TRUCKS INC PARTS OPN
BB27536 56442 DIAMOND REO TRUCK CO
T103-2 80837 KYSOR/WESTRAN CORP AUSTIN TRAILER DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2540-00-287-8224

Technical Data | NSN 2540-00-287-8224

Characteristic Specifications
PINTLE TYPE FOR WHICH DESIGNED MANUAL
MATERIAL STEEL,A,57-102 FS1045

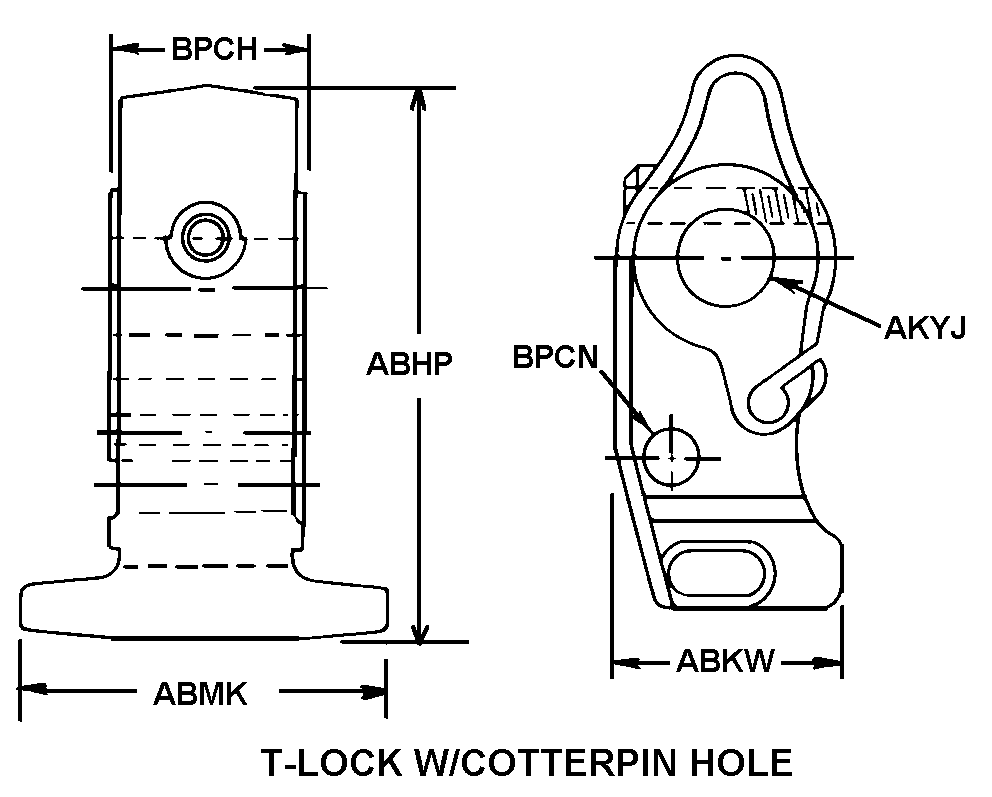

STYLE DESIGNATOR 5 T-LOCK W/COTTERPIN HOLE
OVERALL LENGTH 4.438 INCHES NOMINAL
OVERALL HEIGHT 1.375 INCHES NOMINAL
OVERALL WIDTH 2.500 INCHES NOMINAL
PIVOT PIN HOLE DIAMETER 0.880 INCHES MINIMUM AND 0.883 INCHES MAXIMUM
WIDTH AT PIVOT PIN HOLE 1.290 INCHES MINIMUM AND 1.300 INCHES MAXIMUM
LOCKING PIN HOLE DIAMETER 0.281 INCHES NOMINAL
THREADED PIVOT PIN LOCKING HOLE INCLUDED
THREAD SIZE 5/16-24
SCREW THREAD SERIES DESIGNATOR UNF
THREAD LENGTH 0.375 INCHES NOMINAL
THREAD DIRECTION RIGHT-HAND

Restrictions/Controls & Freight Information | NSN 2540-00-287-8224

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
