NSN 2530-01-207-6256 10370002, 103700-02, 2530PL0645324
Product Details | SINGLE DISK BRAKE
2530-01-207-6256 A brake consisting essentially of the following: a. A single piece or divided cylinder housing designed to be mounted on the torque flange of an axle. The cylinder housing has a slot or groove through which the DISK, BRAKE passes. It contains a piston(s) or push rod(s) which provides the hydraulic or mechanical force to press the LINING, FRICTION against the DISK, BRAKE. b. LINING, FRICTION. c. A DISK, BRAKE designed to be keyed or rigidly attached to a wheel or rotating shaft.20316300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 10370002, 103700-02, 2530PL0645324, 5572426, 2530-01-207-6256, 01-207-6256, 2530012076256, 012076256
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 03 MAY 1985 | 01-207-6256 | 09193 ( BRAKE, SINGLE DISK ) |

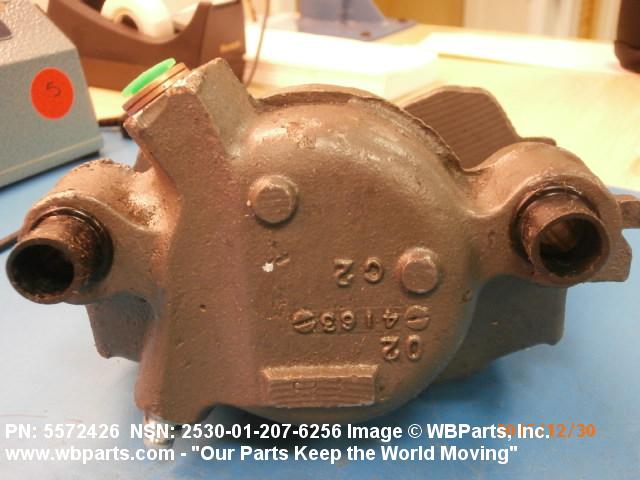

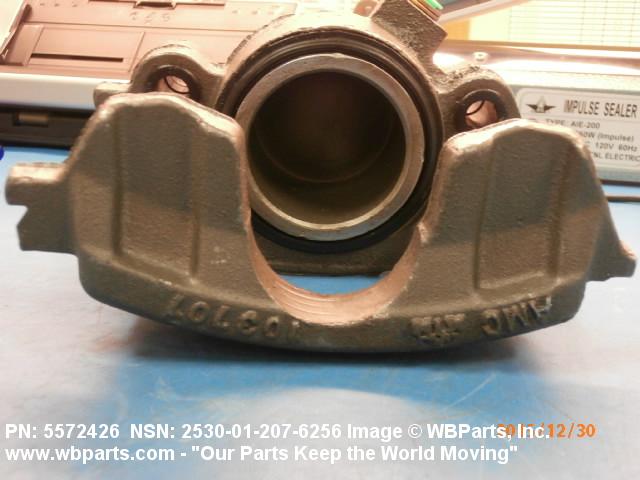

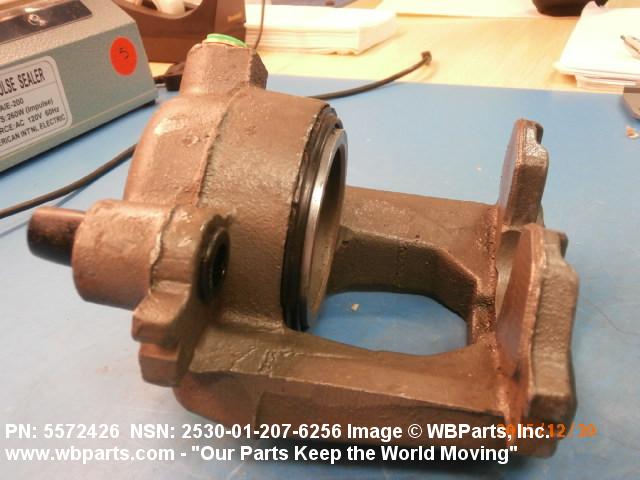

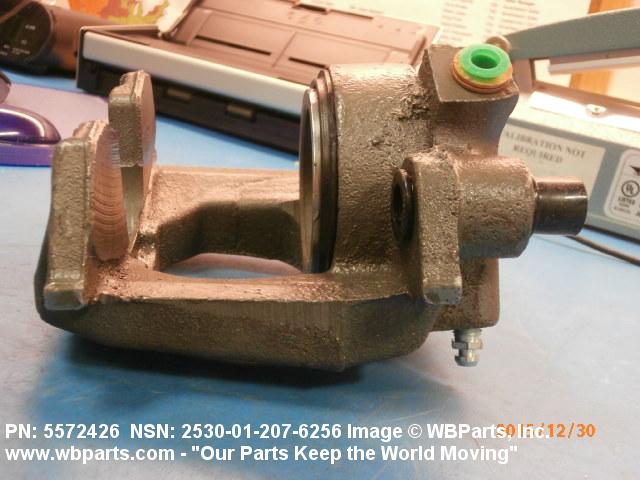

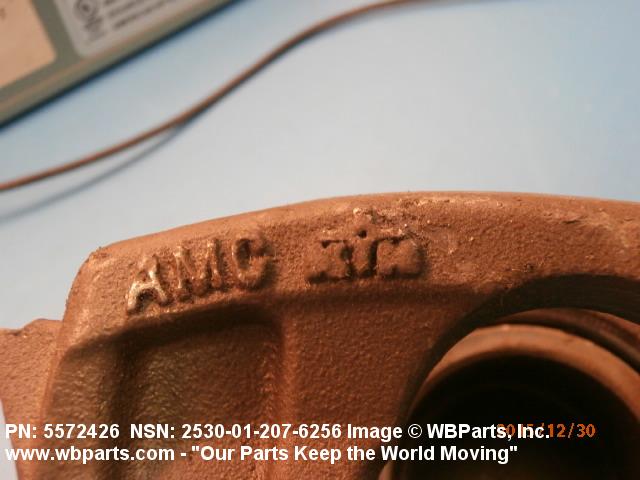

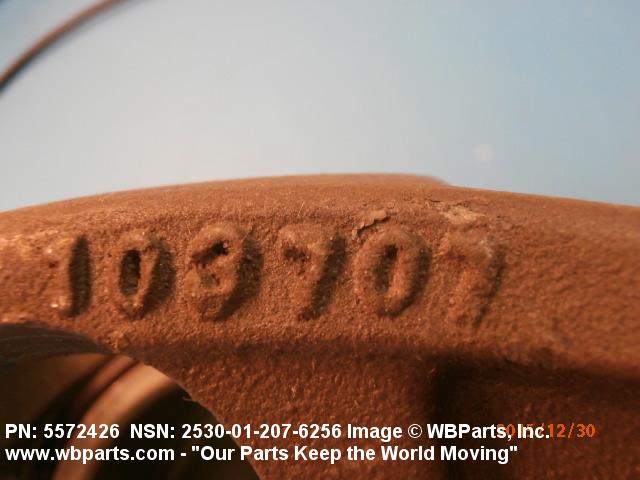

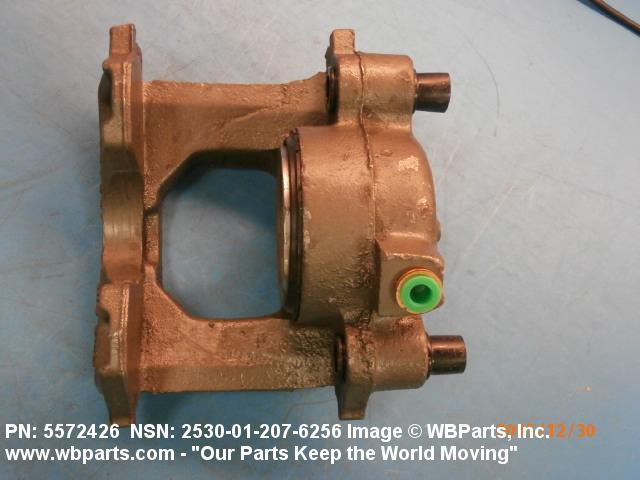

Drawings & Photos | NSN 2530-01-207-6256
Demand History | NSN 2530-01-207-6256
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-01-207-6256 | 2015-12-342 | 5 | United States |
| 103700-02 | 2015-02-40 | 35 | US |
| 2530-01-207-6256 | 2013-07-184 | 10 | MANUAL |
| 2530-01-207-6256 | 2008-06-174 | 3 | Turkey |
| 2530-01-207-6256 | 2008-01-30 | 10 | US |
| 10370002 | 2007-07-200 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-01-207-6256
Technical Data | NSN 2530-01-207-6256
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | CHARACTERISTICS ITEM DESCRIPTION CONSISTS OF HOUSING,BUSHING AND BEARING SLEEVE,PROTECTIVE CAP,BLEEDER VALVE,PLAIN SEAL,PISTON AND BOOT ASSEMBLY FOR BRAKE CALIPER RIGHT FRONT,LEFT REAR |
| III END ITEM IDENTIFICATION | MODEL PCCN HMMWV |
| MANUFACTURERS CODE | 34281 |
| DESIGN CONTROL REFERENCE | 103700-02 |
Restrictions/Controls & Freight Information | NSN 2530-01-207-6256
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-01-207-6256
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
