Product Details | SINGLE DISK BRAKE

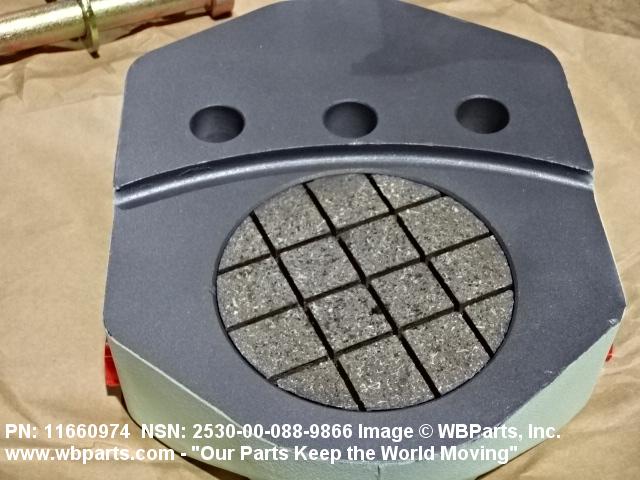

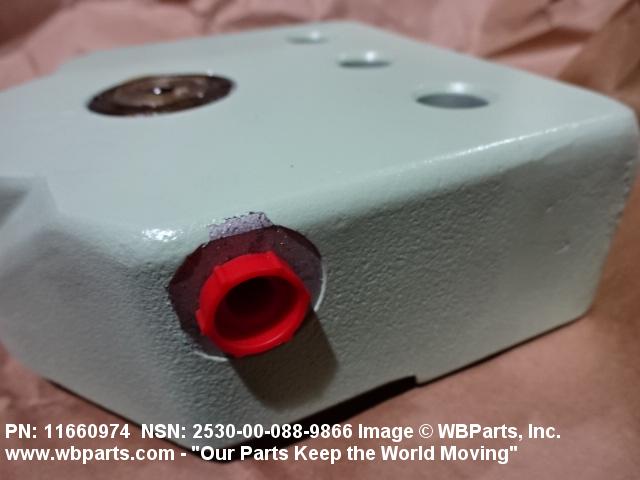

2530-00-088-9866 A brake consisting essentially of the following: a. A single piece or divided cylinder housing designed to be mounted on the torque flange of an axle. The cylinder housing has a slot or groove through which the DISK, BRAKE passes. It contains a piston(s) or push rod(s) which provides the hydraulic or mechanical force to press the LINING, FRICTION against the DISK, BRAKE. b. LINING, FRICTION. c. A DISK, BRAKE designed to be keyed or rigidly attached to a wheel or rotating shaft.20316300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 11660974 , 2530-00-088-9866, 00-088-9866, 2520000889866, 2530000889866, 000889866
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 29 APR 1972 | 00-088-9866 | 09193 ( BRAKE, SINGLE DISK ) |

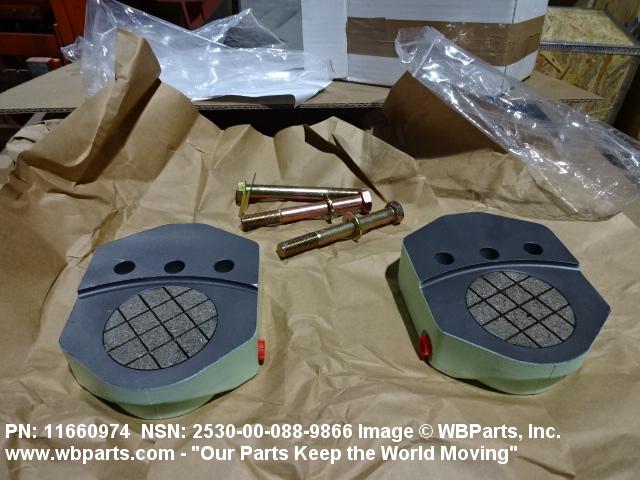

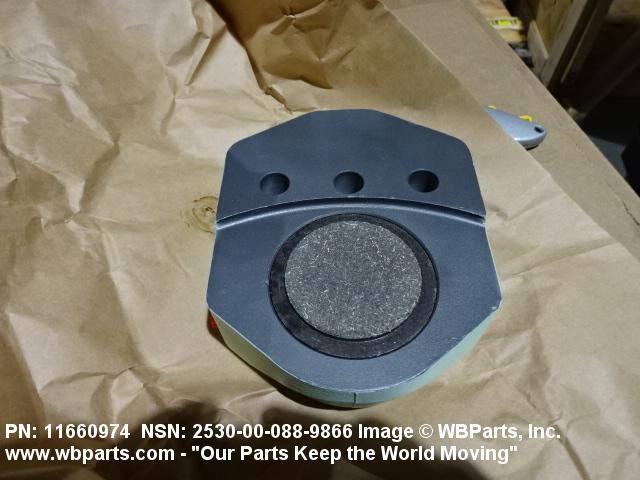

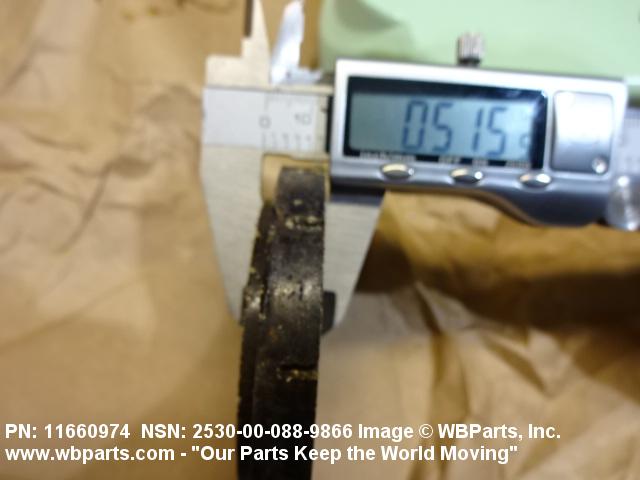

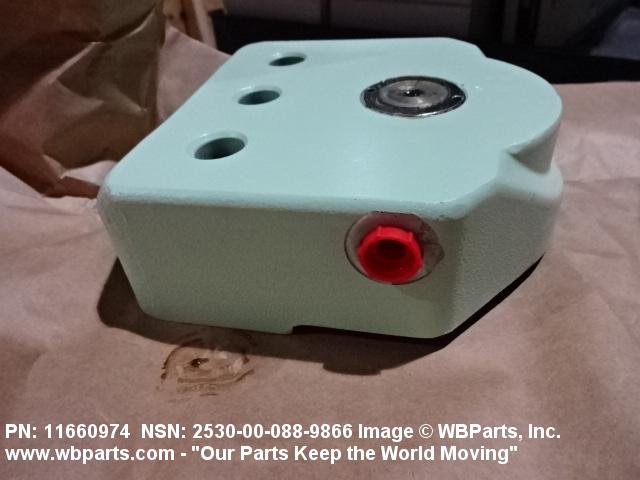

Drawings & Photos | NSN 2530-00-088-9866
Demand History | NSN 2530-00-088-9866
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-088-9866 | 2024-02-39 | 47 | DIBBS |
| 2530-00-088-9866 | 2023-11-333 | 2 | UA |
| 2530-00-088-9866 | 2023-09-249 | 50 | DIBBS |
| 2530-00-088-9866 | 2023-08-240 | 50 | DIBBS |
| 2530-00-088-9866 | 2023-08-226 | 2 | US |
| 2530-00-088-9866 | 2023-02-54 | 44 | DIBBS |
| 2530-00-088-9866 | 2023-02-40 | 48 | US |
| 2530-00-088-9866 | 2022-06-158 | 48 | DIBBS |
| 2530-00-088-9866 | 2022-02-48 | 48 | DIBBS |
| 2530-00-088-9866 | 2022-01-26 | 30 | DIBBS |
| 2530-00-088-9866 | 2021-11-329 | 54 | Taiwan |
| 2530-00-088-9866 | 2021-08-217 | 30 | DIBBS |
| 11660974 | 2021-03-90 | 34 | US |
| 2530-00-088-9866 | 2021-03-83 | 34 | us |
| 2530-00-088-9866 | 2020-12-345 | 32 | DIBBS |
| 2530-00-088-9866 | 2020-07-184 | 1 | Brazil |
| 2530-00-088-9866 | 2020-02-49 | 78 | DIBBS |
| 2530-00-088-9866 | 2020-02-44 | 43 | DIBBS |
| 2530-00-088-9866 | 2020-01-10 | 4 | United States |
| 2530-00-088-9866 | 2019-09-273 | 2 | United States |
| 2530-00-088-9866 | 2019-08-227 | 35 | DIBBS |
| 2530-00-088-9866 | 2019-05-140 | 30 | United States |
| 2530-00-088-9866 | 2019-03-80 | 30 | DIBBS |
| 2530-00-088-9866 | 2018-09-263 | 24 | DIBBS |
| 2530-00-088-9866 | 2018-06-161 | 24 | DIBBS |
| 2530-00-088-9866 | 2007-03-88 | 15 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-088-9866
Related Products | NSN 2530-00-088-9866
Technical Data | NSN 2530-00-088-9866
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |

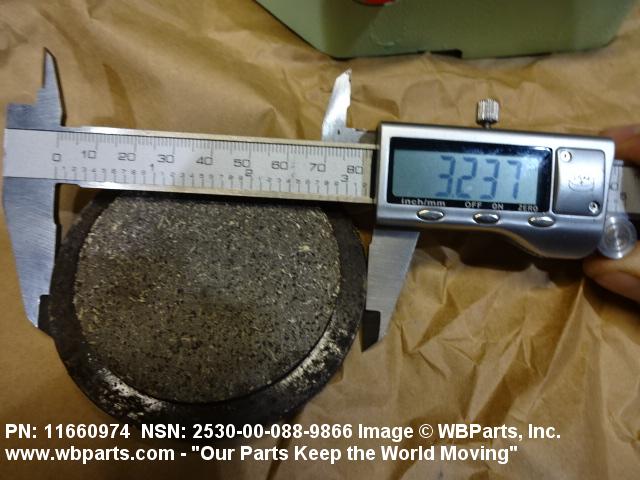

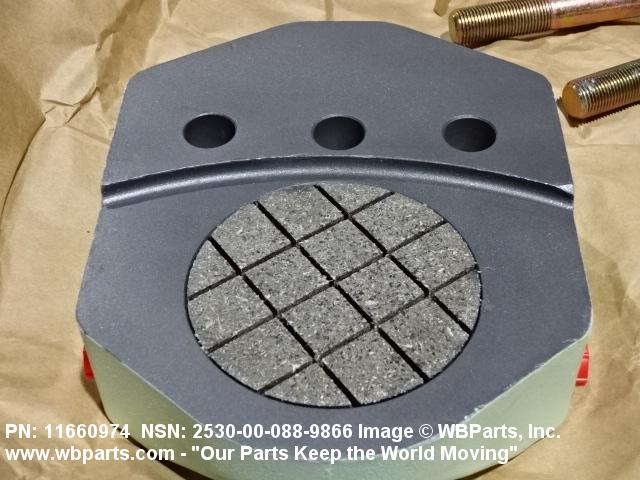

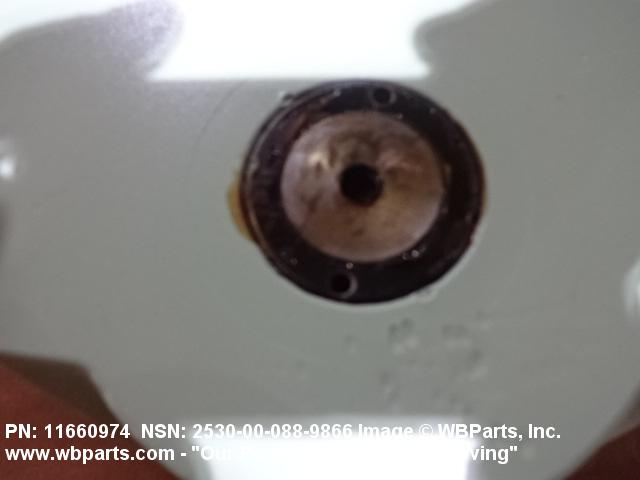

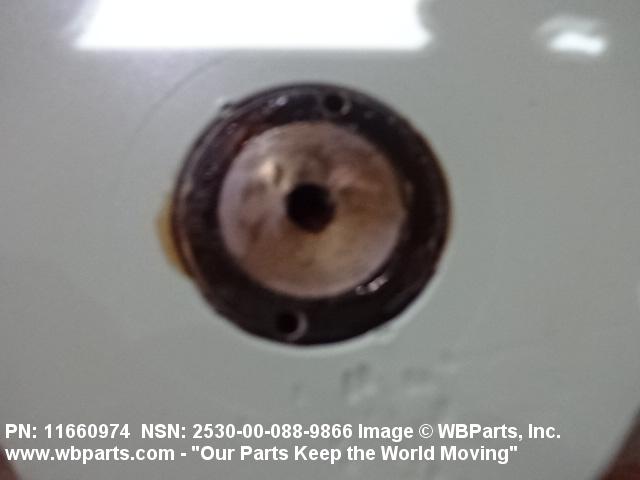

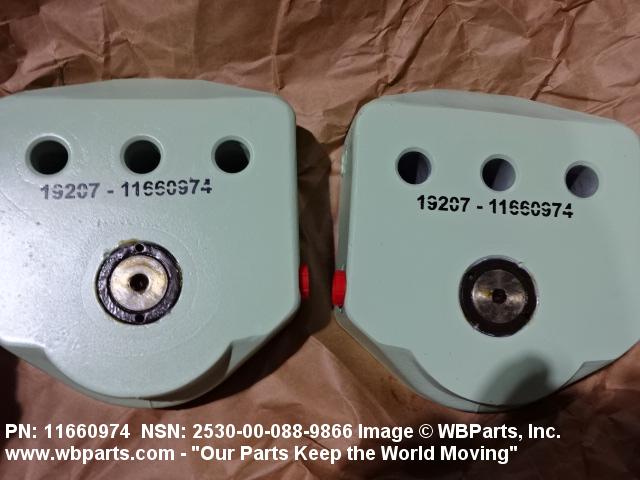

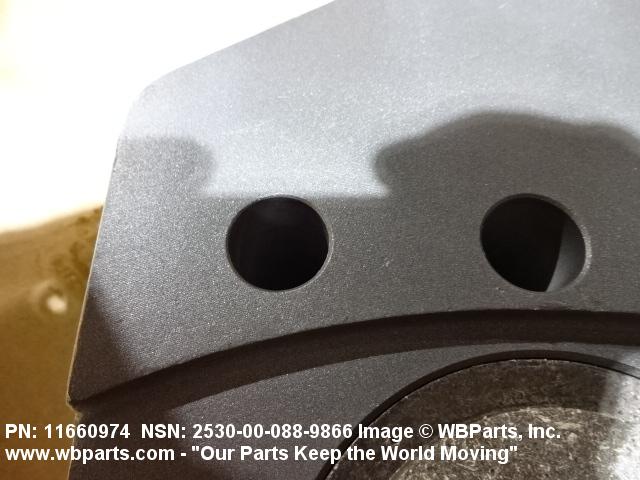

| BRAKING AREA OUTSIDE DIAMETER | 3.236 INCHES NOMINAL |
| HYDRAULIC CYLINDER QUANTITY | 2 |
| HYDRAULIC CYLINDER DIAMETER | 1.500 INCHES NOMINAL |
| MOUNTING METHOD | ANCHOR PLATE FLANGE |
| MOUNTING HOLE QUANTITY | 3 |

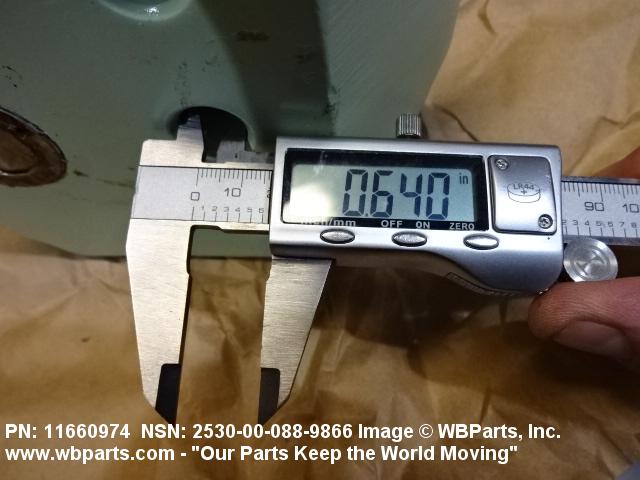

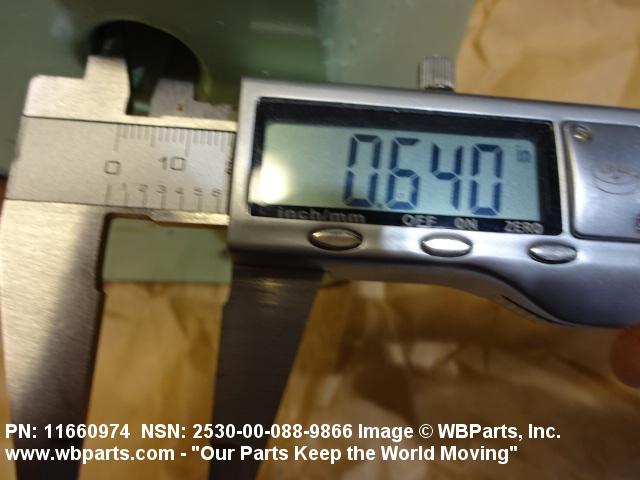

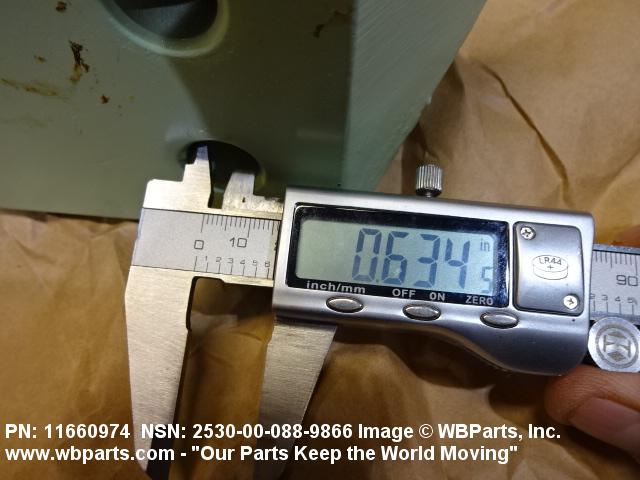

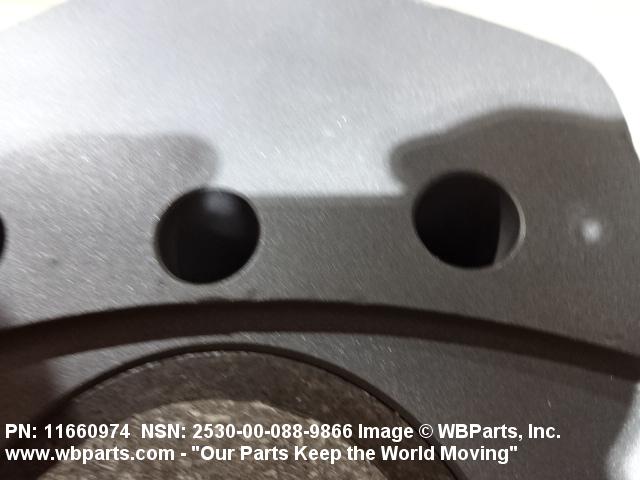

| MOUNTING HOLE DIAMETER | 0.640 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |

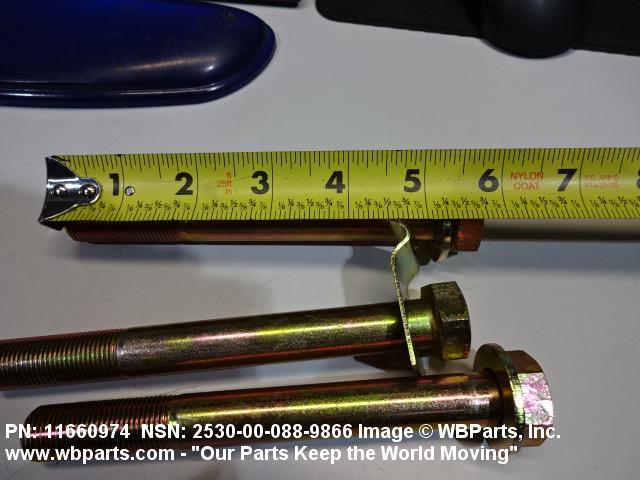

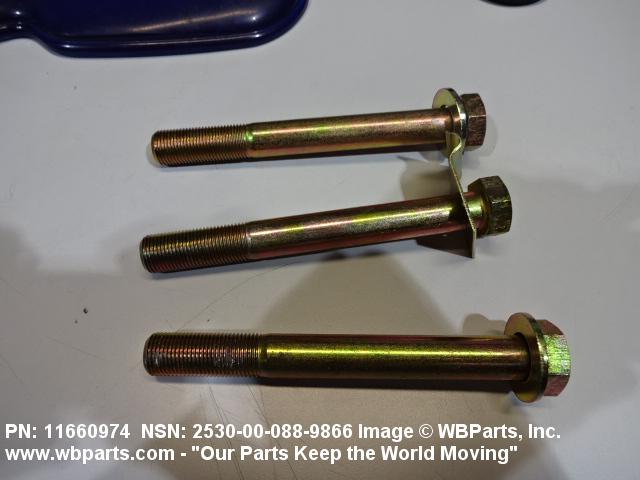

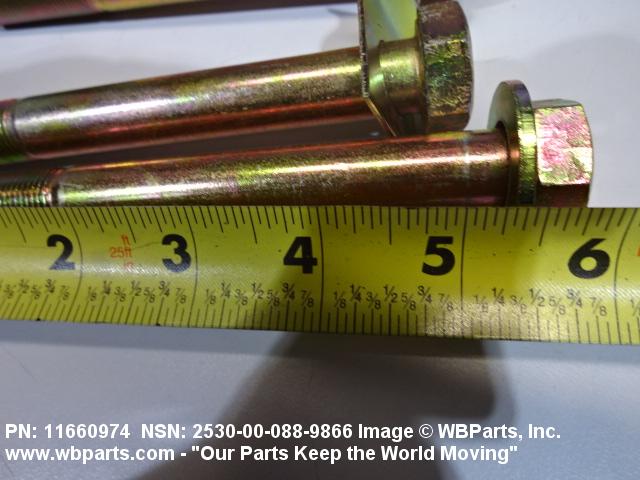

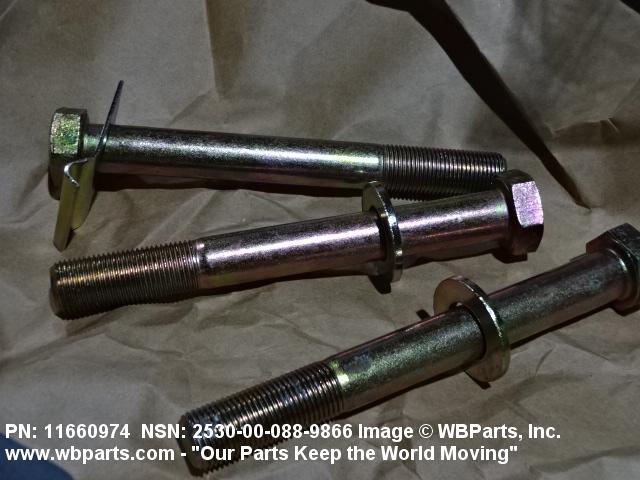

| SPECIAL FEATURES | OVERALL MOUNTING BOLT LENGTH 5.500 INCH |
