Product Details | WHEEL HYDRAULIC BRAKE CYLINDER ASSEMBLY

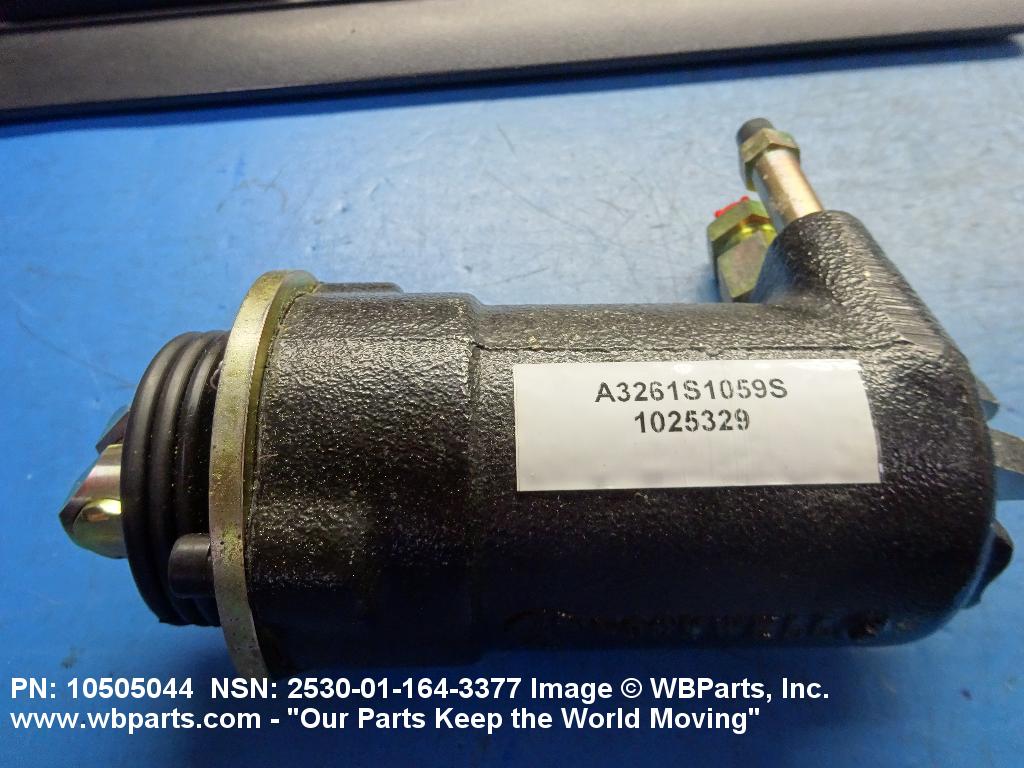

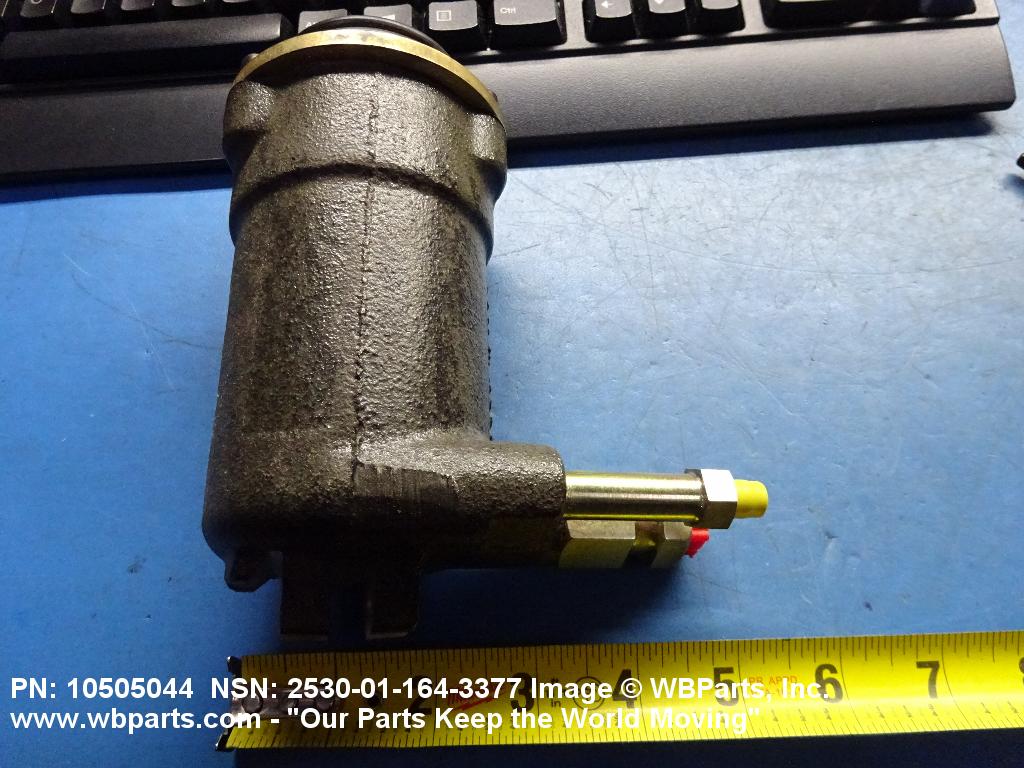

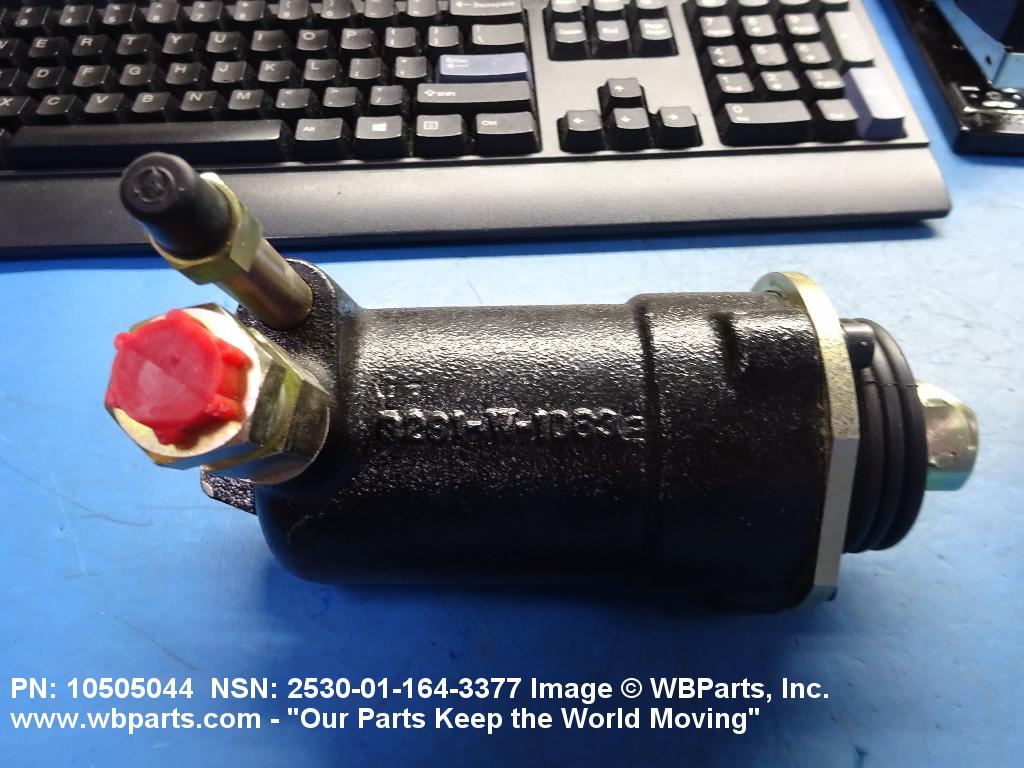

2530-01-164-3377 A device consisting of a CYLINDER, HYDRAULIC BRAKE, WHEEL with a piston(s) and other component parts which is mounted to the back plate of a wheel. It uses the flow and pressure of a fluid to create the linear motion required to operate the brake shoes of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components

Part Alternates: 10505044, 12704023, 2530-01-164-3377, 01-164-3377, 2530011643377, 011643377

Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components

Supply Group (FSG) NSN Assign. NIIN
25 14 OCT 1983 01-164-3377

Drawings & Photos | NSN 2530-01-164-3377


Demand History | NSN 2530-01-164-3377

Part Number Request Date QTY Origin
2530-01-164-3377 2022-11-307 8 United States
2530-01-164-3377 2022-05-146 4 United States
2530-01-164-3377 2022-02-46 1 United States
2530-01-164-3377 2022-02-45 1 United States
2530-01-164-3377 2021-02-36 4 United States
10505044 2020-12-338 27 DIBBS
2530-01-164-3377 2019-07-196 2 Peru
10505044 2019-01-31 18 DIBBS
2530-01-164-3377 2018-06-159 65 DIBBS
2530-01-164-3377 2018-05-148 65 DIBBS
2530-01-164-3377 2018-05-137 24 DIBBS
2530-01-164-3377 2018-02-43 41 DIBBS
2530-01-164-3377 2018-02-32 41 DIBBS
2530-01-164-3377 2017-08-243 37 DIBBS
2530-01-164-3377 2017-06-172 19 DIBBS
2530-01-164-3377 2012-06-157 1 US
2530-01-164-3377 2010-08-230 52 DIBBS
2530-01-164-3377 2010-05-134 54 DIBBS
2530-01-164-3377 2010-05-121 45 DIBBS
12704023 2010-03-84 50 IE
2530-01-164-3377 2010-03-62 300 Canada
2530-01-164-3377 2009-11-327 55 DIBBS
2530-01-164-3377 2009-10-304 1 PK
2530-01-164-3377 2009-10-292 61 DIBBS
2530-01-164-3377 2009-08-224 95 DIBBS
2530-01-164-3377 2009-07-202 47 DIBBS
2530-01-164-3377 2009-01-29 138 DIBBS
2530-01-164-3377 2008-10-302 31 DIBBS
2530-01-164-3377 2008-10-277 17 DIBBS
2530-01-164-3377 2008-09-255 65 DIBBS
2530-01-164-3377 2007-11-320 12 DIBBS
2530-01-164-3377 2007-03-81 108 DIBBS

Cross Reference | NSN 2530-01-164-3377

Part Number Cage Code Manufacturer
10505044 56161 GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
12704023 0JA67 PERROT NORTH AMERICA INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2530-01-164-3377

Technical Data | NSN 2530-01-164-3377

Characteristic Specifications
DESIGN CHARACTERISTICS SINGLE ACTING SINGLE CYLINDER
BORE TYPE STRAIGHT
(NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY NOT INCLUDED
(NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY NOT INCLUDED
MOUNTING POSITION LEFT
BLEEDING FEATURE QUANTITY 1
III END ITEM IDENTIFICATION DIESEL DIVISION,GENERAL MOTORS OF CANADA LTD,LIGHT ARMORED VEHICLE MODEL 25MC

Restrictions/Controls & Freight Information | NSN 2530-01-164-3377

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 885 unknown
Originating Activity Code AZ U.S. Army Tank-Automotive and Armaments
Command
Warren, MI 48397-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2530-01-164-3377

Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code4Critical for State and Local Laws. Those parts and components that are required for conformance to state law or local ordinances, and which do not fit the definition of Code 5 or 6 items.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification CodeT
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityFReparable item. When uneconomically reparable, condemn and dispose at the third echelon level.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
